A - Top side
B - Observation window
C - Button cord
D - Fan
E - Smoke pipe connector
F - Smoke exhaust pipe
G - Hook and loop fasteners for collecting tools
H - Left side
I - Front side
J - Right side
K - Tool storage bag
L - Opening for power/USB cable
M - Air inlet
N - Rear side
Installation

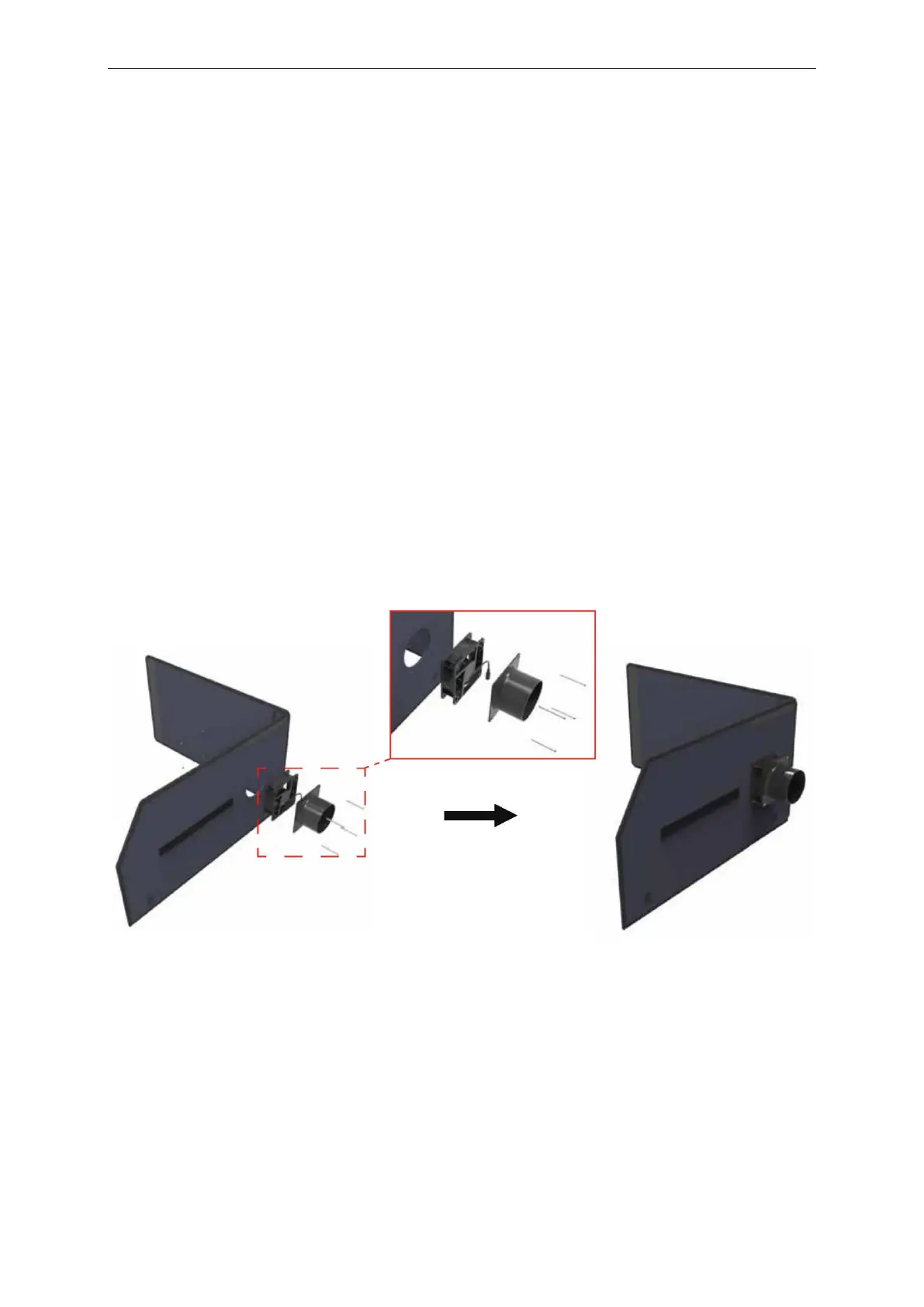

Step 1:
1) First put the M4*55 Phillips screw through the smoke exhaust fitting and then through the fan.
2) Align the screws with the holes on the side panel and pass them through the side panel. Finally
tighten the screws using M4 nuts.
Note: When installing the fan please pay special attention to the direction of its suction and exhaust.
If the wrong direction is installed it will not achieve the function of exhaust and produce negative
effect.
