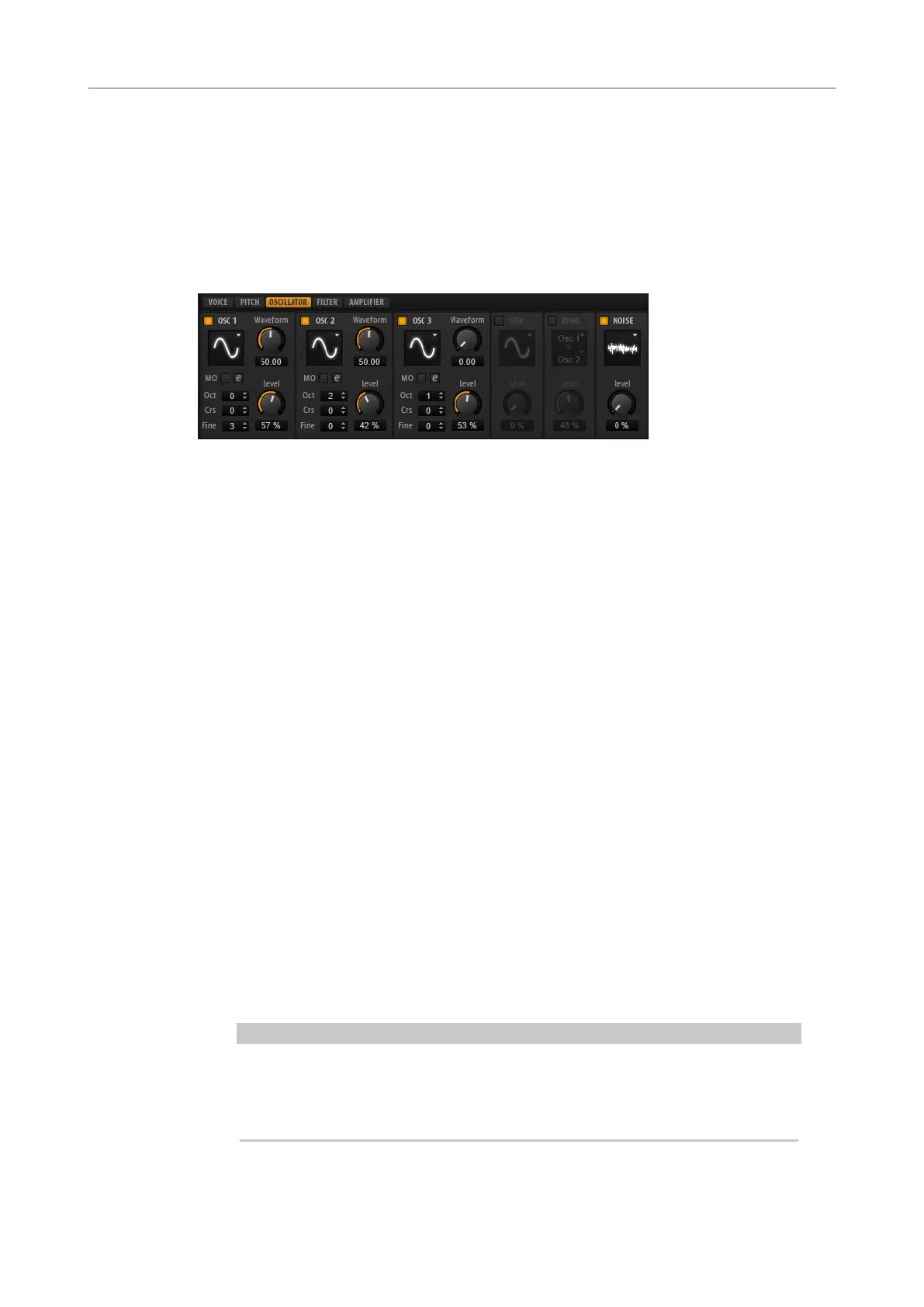

Oscillator Tab
The Oscillator tab offers six sound sources: three main oscillators, the sub oscillator, the ring
modulation, and the noise generator. To create interesting electronic spectra, you can mix any of
these sound sources. The resulting signal is sent to the
Filter and Amplier tabs for further
sound shaping.
The three main oscillators (OSC 1, OSC 2, and OSC 3) offer several wave shapes and algorithms.
● To activate an oscillator, click its On/Off button.
OSC 1/2/3 Type
The oscillator type denes the basic sound character of the oscillator. This pop-up
menu lists the waveforms Sine, Triangle, Saw, and Square, followed by the
algorithms PWM, Sync, CM and XOR. The combination of waveform and algorithm
controls the sound of the oscillator.
The following algorithms are available:
● PWM (pulse width modulation) is only supported by the square waveform. The
Waveform parameter sets the ratio between the high and low value of the
square wave. A setting of 50 % produces a pure square wave. With settings
below or above 50 %, the oscillator produces rectangular waves.
● Sync provides different hard-sync oscillators, where each is a combination of a
master and slave oscillator. The wave shape of the slave oscillator is reset with
each full wave cycle of the master oscillator. This means that a single oscillator
can produce a rich sync-sound without using other oscillators as slave or
master. The
Waveform parameter adjusts the pitch of the slave oscillator,
producing the typical sync sound.
● CM (cross modulation) provides a combination of two oscillators where a
master oscillator is modulating the pitch of a slave oscillator at the rate of the
audio sample. The
Waveform parameter adjusts the pitch ratio between slave
and master oscillator, resulting in a sound close to frequency modulation.
● XOR (exclusive OR) compares two square waveforms with an XOR operation.
Depending on the outcome of the
XOR operation, the wave shape of a third
oscillator is reset. The Waveform parameter adjusts the pitch ratio of the
square oscillators resulting in a sound close to ring modulation of the third
oscillator.
Osc 1/2/3 Waveform
Modies the sound of the oscillator algorithm. Its effect depends on the selected
oscillator type.
NOTE
● Except for PWM, all algorithms support the Sine, Triangle, Saw, and Square
wave shapes. PWM only supports the Square wave shape.
● The Waveform parameter for the three main oscillators can be assigned as
modulation destination in the modulation matrix.
Editing Layers
Oscillator Tab
36
HALion Sonic 3.4.0
