Page 17

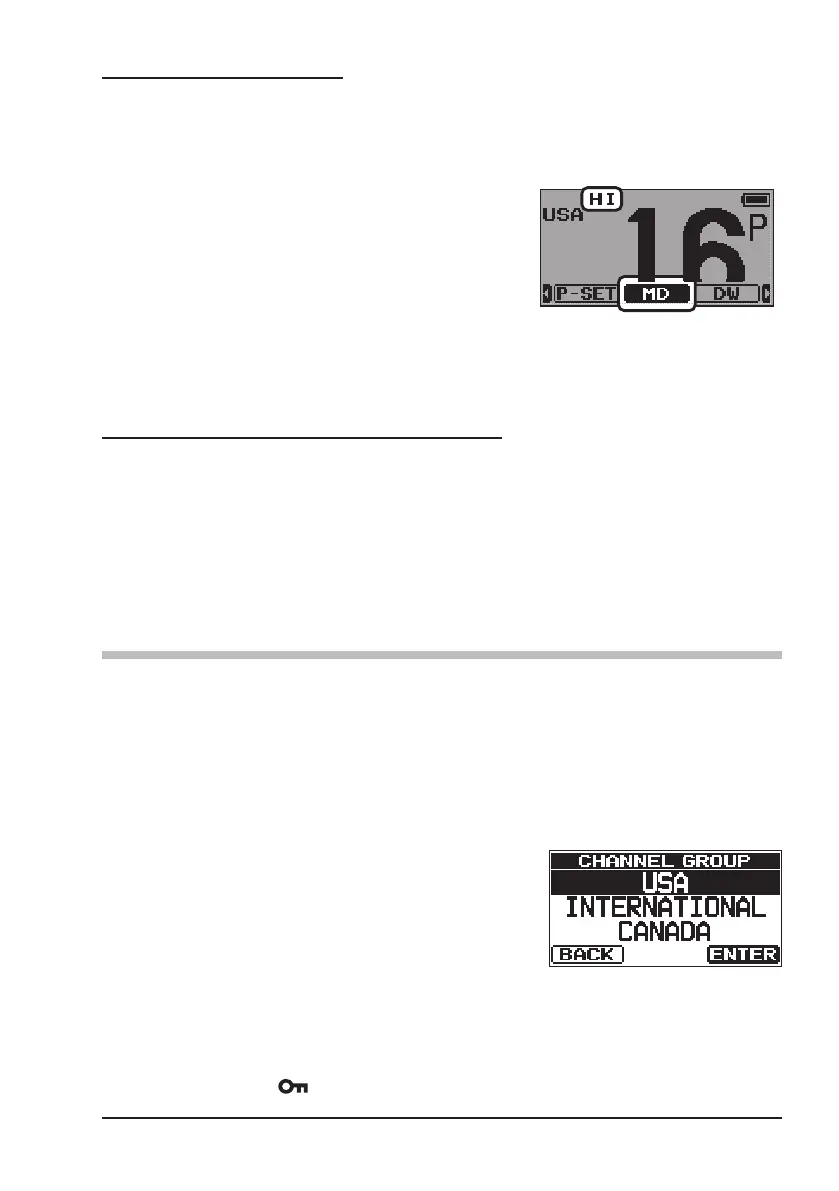

8.4.1 TRANSMIT POWER
The TX output power of the HX40 is set to high level
(
6 W
(
5 W
)
*
)
in factory
default, and the “HI” indicator is displayed on the top part of the screen.
To change the TX output power:
1. Press the [◄] or [►] key to display the soft keys.
2. Press the [◄] or [►] key repeatedly, until
[HI], [MD], or [LO] is selected above a soft
key at the bottom of the LCD.
3. Press the [ENT/MENU] key repeatedly to
switch between HI
(
6 W
(
5 W
)
*
)
, MD
(
2.5 W
)
,
or LO
(
1 W
)
output power.
*
(5W TX required in
Some Countries)
NOTE:
Soft Key displays the next Power Level to be selected when pressed. The
actual TX Power Level is always shown in the icon on the top line of the display.
8.4.2 TRANSMIT TIME - OUT TIMER
(
TOT
)
While the PTT switch is held down, transmission time is limited to 5 minutes.
This prevents prolonged
(
unintentional
)
transmissions. About 10 seconds
before automatic transmitter shutdown, a warning beep will sound from the
speaker. The transceiver automatically switches to receive mode, even if
the PTT switch continues to be held down. The PTT switch must rst be re-
leased, then wait 10 seconds before transmission may be started again. This
Time-Out-Timer
(
TOT
)
prevents a continuous transmission that would result
from an accidentally stuck PTT switch.
8.5 CHANNEL GROUP
Set the Channel Group according to the region.
1. Press and hold the [ENT/MENU] key.
2. Press the [▲] or [▼] key to select “CHANNEL SETUP”.
3. Press the [◄] or [►] key to select the [ENTER] soft key, then press the
[ENT/MENU] key.
4. Press the [▲] or [▼] key to select “CHANNEL GROUP”.
5. Press the [ENT/MENU] key.
6. Press the [▲] or [▼] key to select the de-
sired channel group “USA”, “INTERNA-
TIONAL”, or “CANADA”
*
.
*
(In the European version, when setting the
region, the selected European Channel
Group will be displayed instead of “CANADA”. For details, refer to the
Note on the Setting the Region on the separate yellow insert sheet.)
*
(In the EXP-5W version, “CHINA” will be displayed instead of “CANADA”. )
7. Press the [ENT/MENU] soft key to store the selected setting.
8. Press the [CLR/ ] key to return to radio operation.
