4. EQUIPMENT DESIGN

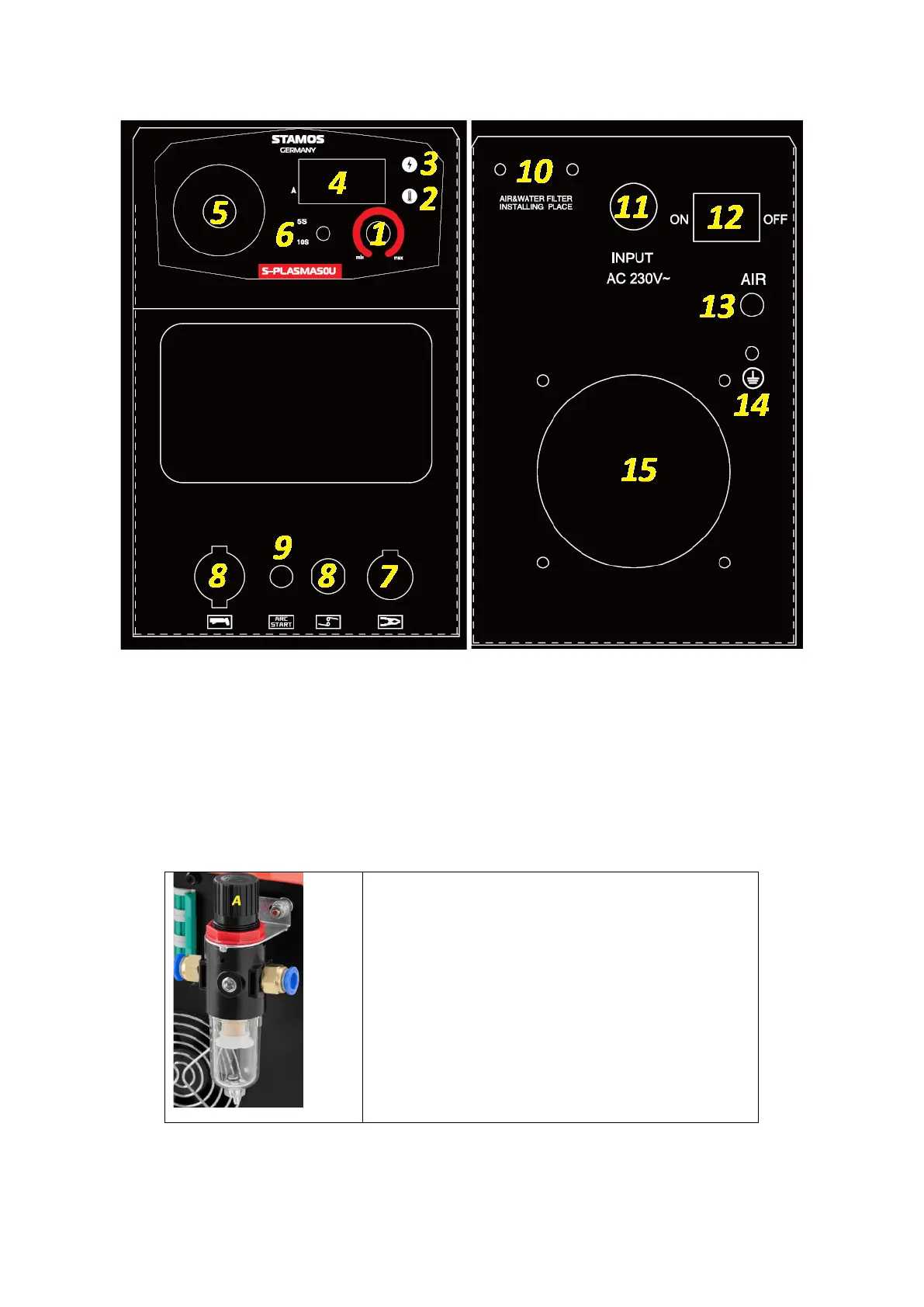

Front view / rear view S-PLASMA50U
1 – Cutting current adjustment knob
2 – Overheat indicator light
3 – Power indicator light
4 – Cutting current display
5 – Manometer
6 – Post-cutting gas release time switch – 5 s / 10 s
7 – Grounding wire connector
8 – Plasma burner current and gas connector
9 – Plasma burner control cable connector
10 – Place of assembly of the filtering and reducing unit:
A – gas pressure adjustment knob
Installation of the filtering and reducing unit:
1. Screw the copper gas nozzles into the gas inlet and
outlet holes.
2. Using bolts and nuts, screw the filter-reduction unit
holder to the frame at the back of the plasma cutter.
3. Install the filtering and reducing unit in the holder
and secure the connection with a nut.
4. Connect the compressor to the gas inlet of the
filtering and reducing unit.
5. Connect the gas outlet of the filter-reducing
assembly with the gas inlet of the plasma cutter (13)
11 – Power supply cable
12 – ON/OFF power switch
13 – Gas inlet
14 – Grounding
15 – Fan
