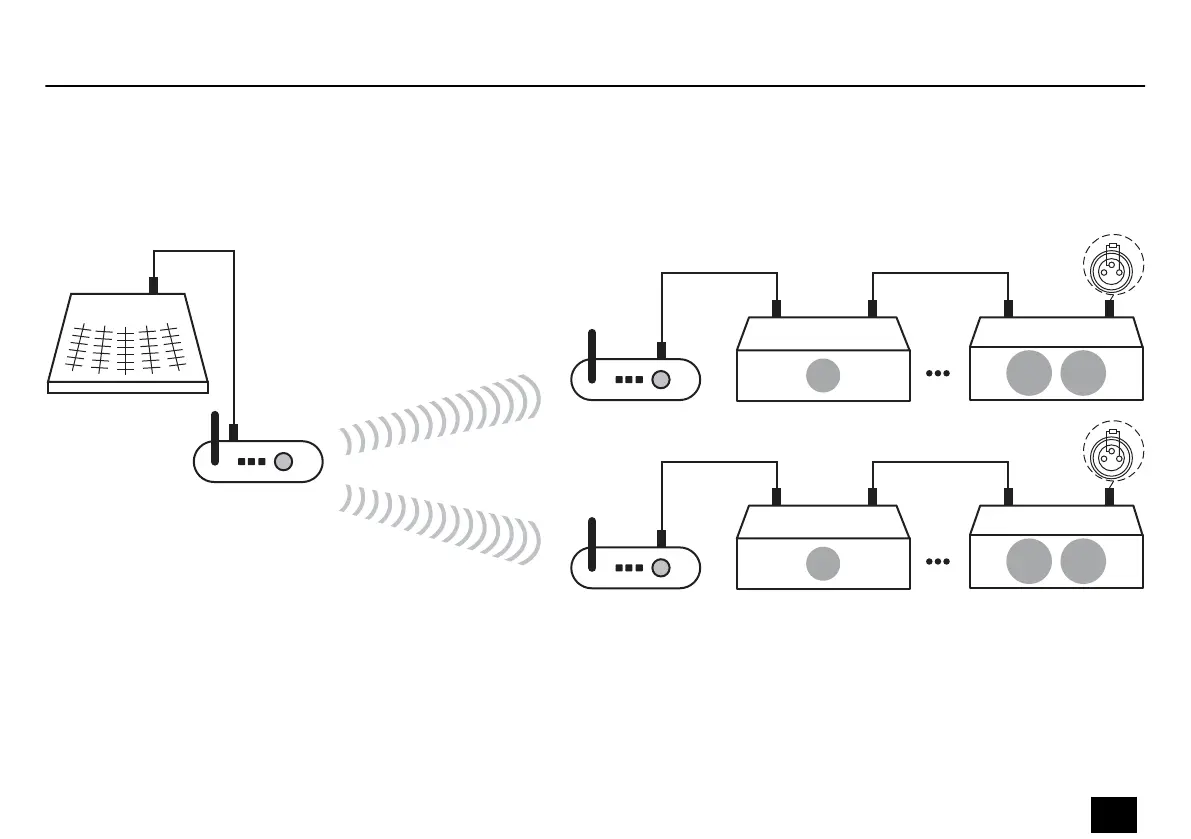

Connect a device congured as transmitter to the DMX output of your DMX controller and a
device congured as receiver to the DMX input of the rst respective DMX device in the DMX
chains that are to be controlled. In this point-to-multipoint conguration the DMX signal from
one transmitter is sent to several receivers.
DMX OutDMX In DMX OutDMX In
DMX Out
DMX In
(Tx)
(Rx)
DMX Out
C
1 n
WLS-DMX
WLS-DMX
DMX OutDMX In DMX OutDMX In
DMX Out
(Rx)
1 n
WLS-DMX
110 Ω, ¼ W
1 2
3
110 Ω, ¼ W
1 2
3
Connect the output of the rst DMX device to the input of the second one and so on, to form a
series connection. Make sure that the output of the last DMX device in the chain is terminated
by a resistor (110 Ω, ¼ W).
Point-to-multipoint connection
DMX chain
Starting up
Wireless DMX Transceiver G5
15
