Je bekijkt pagina 14 van 28

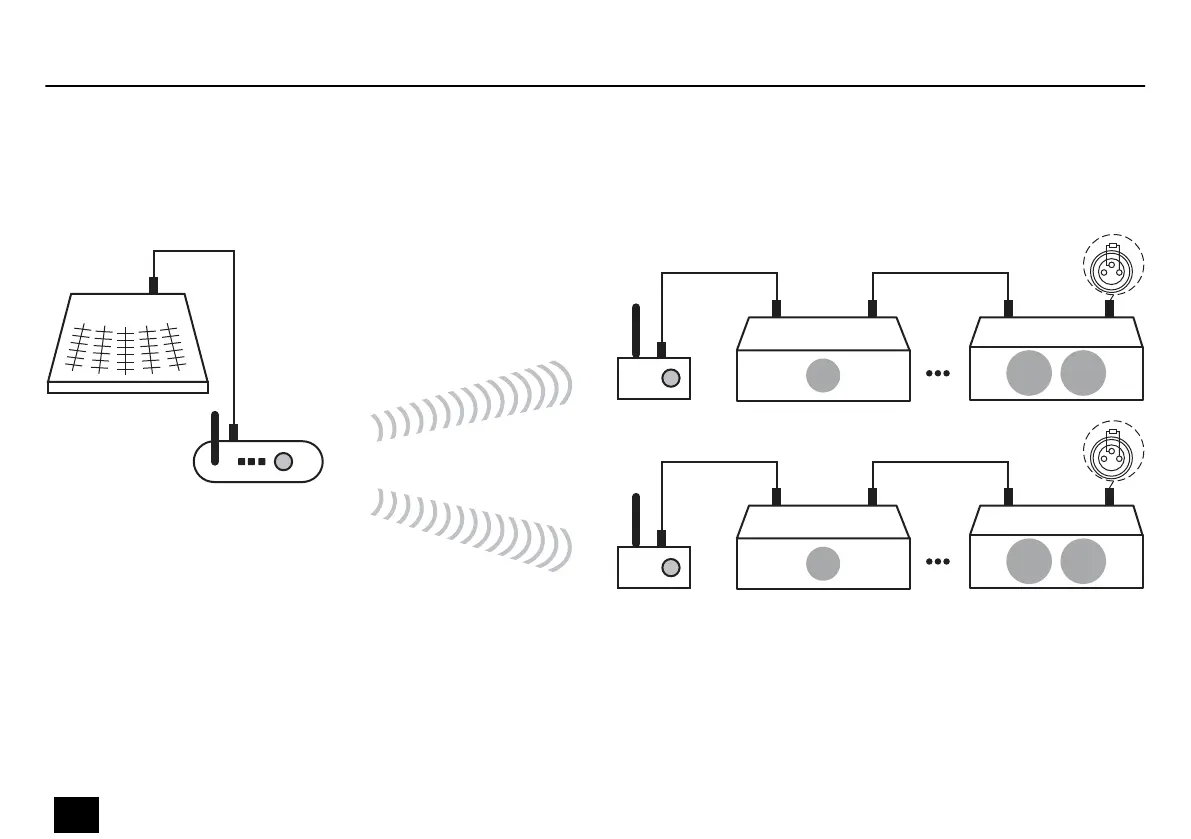

Connect a compatible transmitter to the DMX output of your DMX controller and a receiver to
the DMX input of each rst DMX device in the DMX chains that are to be controlled. In this
point-to-multipoint conguration the DMX signal from one transmitter is sent to several
receivers. Transmitter and all receivers must be set to the same frequency range.
DMX OutDMX In DMX OutDMX In
DMX Out
DMX In
(Tx)
DMX Out
C
1 n
WLS-DMX
DMX OutDMX In DMX OutDMX In
DMX Out
1 n
110 Ω, ¼ W
1 2
3
110 Ω, ¼ W
1 2
3
(Rx)
(Rx)
Connect the output of the rst DMX device to the input of the second one and so on, to form a
series connection. Make sure that the output of the last DMX device in the chain is terminated
by a resistor (110 Ω, ¼ W).
Point-to-multipoint connection
DMX chain
Starting up
14
Wireless DMX Receiver IP65
Wireless DMX Receiver
