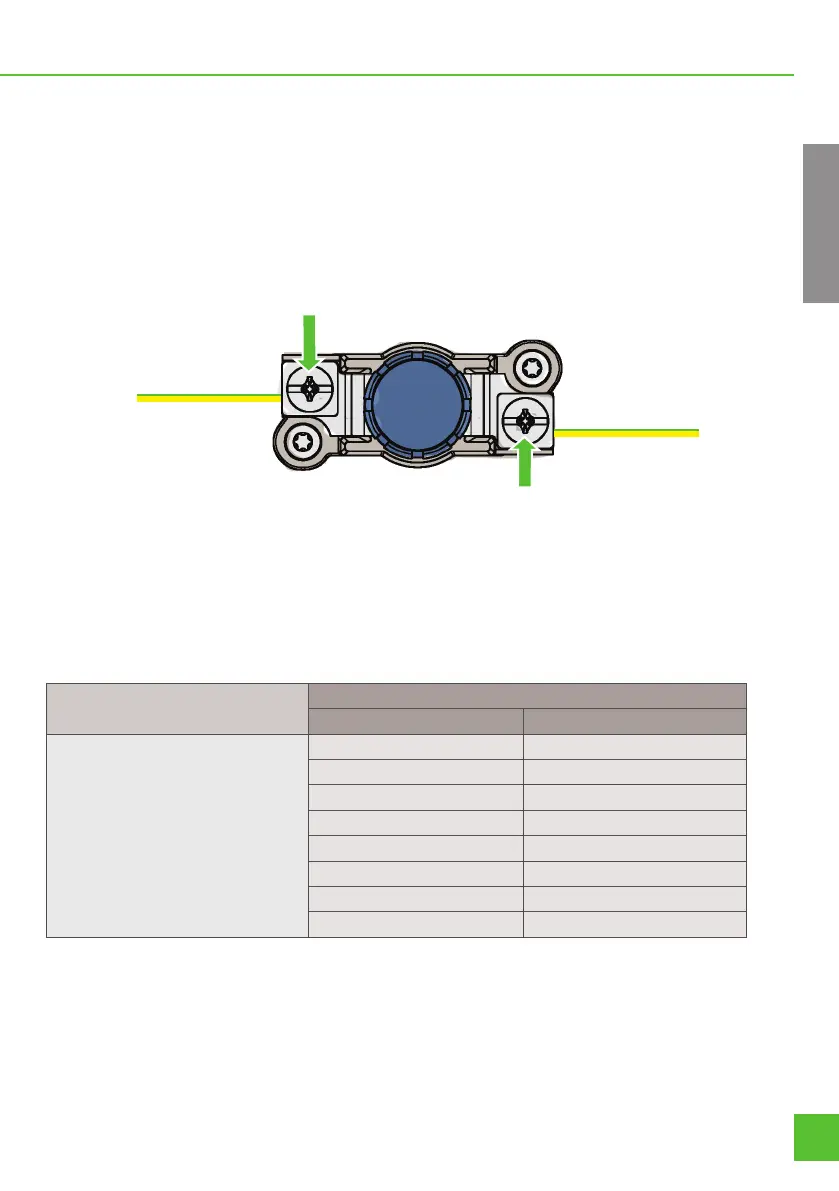

The intended outgoing cable is inserted into the housing through the cable gland (sealing range 9 to 16 mm).
Single wires are connected directly to the contacts and to the circuit breaker.
The outgoing cable is directly connected to the contacts with a torque of 2 Nm.
Single wires with a cross-section of 1 mm² to 6 mm² are permitted.
2 Nm
2 Nm
2.5 mm² to 6 mm²
2.5 mm² to 6 mm²
Cross-section that can be
clamped
per Clamping unit
rigid
flexible
2.5 mm²
2.5 mm²
4 mm²
4 mm²
6 mm² 6 mm²
2x2.5 mm² 2x2.5 mm²
2x4 mm² 2x4 mm²
2x 6 mm²
2x 6 mm²
*
1x 2.5 mm² & 1x 4 mm² 1x 2.5 mm² & 1x 4 mm²
1x 2.5 mm² & 1x 6 mm²
1x 2.5 mm² & 1x 6 mm²
*
*only with wire end ferrule
Smaller cross-sections
upon request
