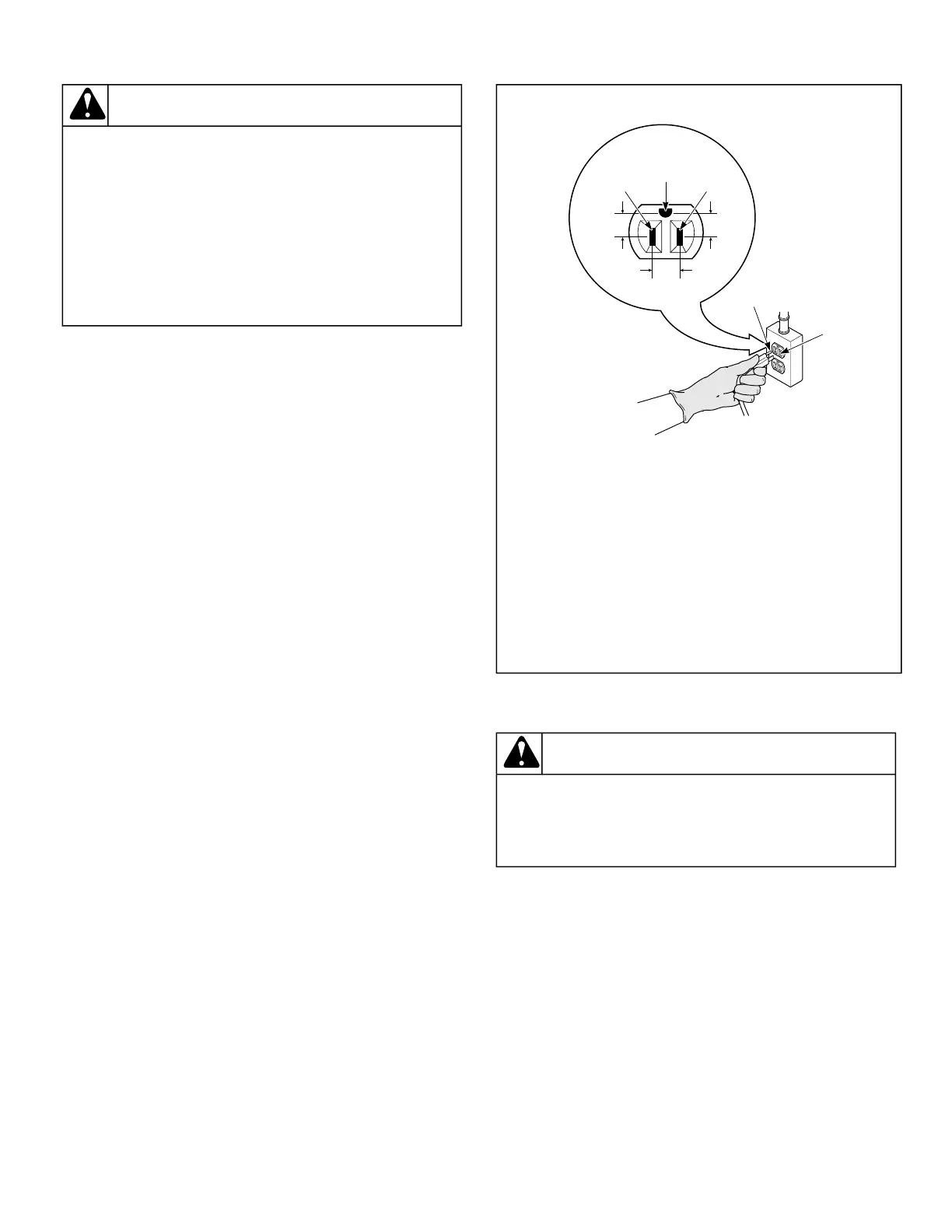

Je bekijkt pagina 10 van 12
WARNING
To reduce the risk of fire, electric shock, serious
injury or death, all wiring and protective earth/
ground connections MUST conform with the latest
edition of the National Electrical Code, ANSI/NFPA
No. 70, and such local regulations as might apply. It
is the customer’s responsibility to have the wiring,
fuses and circuit breakers installed by a qualified
electrician to make sure adequate electrical power
is available to the washer.
W824
When plugging in the washer:
• DO NOT overload circuits.
• DO NOT use an extension cord.
• DO NOT use an adapter.
• DO NOT operate other appliances on the same circuit. Use
separately fused 15 Amp circuits.
The washer is designed to be operated on a separate branch,
polarized, three-wire, effective earth/ground, 120 Volt, 60
Hertz, AC (alternating current), circuit protected by a 15 am-
pere fuse, equivalent fusetron or circuit breaker.
The three-prong earth/ground plug on the power cord should
be plugged directly into a polarized three-slot effective earth/
ground receptacle rated 110/120 Volts AC (alternating current)
15 Amps. Refer to
Figure 11
to determine correct polarity of
the wall receptacle.
Standard 120 Volt, 60 Hertz 3-Wire Effective Earth/
Ground Circuit
TLW2287N_SVG
6
8
7
2
1 3
5
4
1. L1
2. Earth/Ground
3. Neutral Side
4. Round Earth/Ground Prong
5. Neutral
6. 0 V.A.C.
7. 120 ± 12 V.A.C.
8. 120 ± 12 V.A.C.
Figure 11
WARNING
To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electric power source.
W082
Earth/Ground Instructions
This appliance must be properly connected to protective earth/
ground. In the event of malfunction or breakdown, the earth/
ground will reduce the risk of electric shock by providing a
path of least resistance for electric current.
The appliance is equipped with a cord having an equipment
earth/ground conductor and a three-prong earth/ground plug.
The plug must be plugged into an appropriate outlet that is
properly installed and connected to a protective earth/ground
in accordance with all local codes and ordinances.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 204104ENR5
