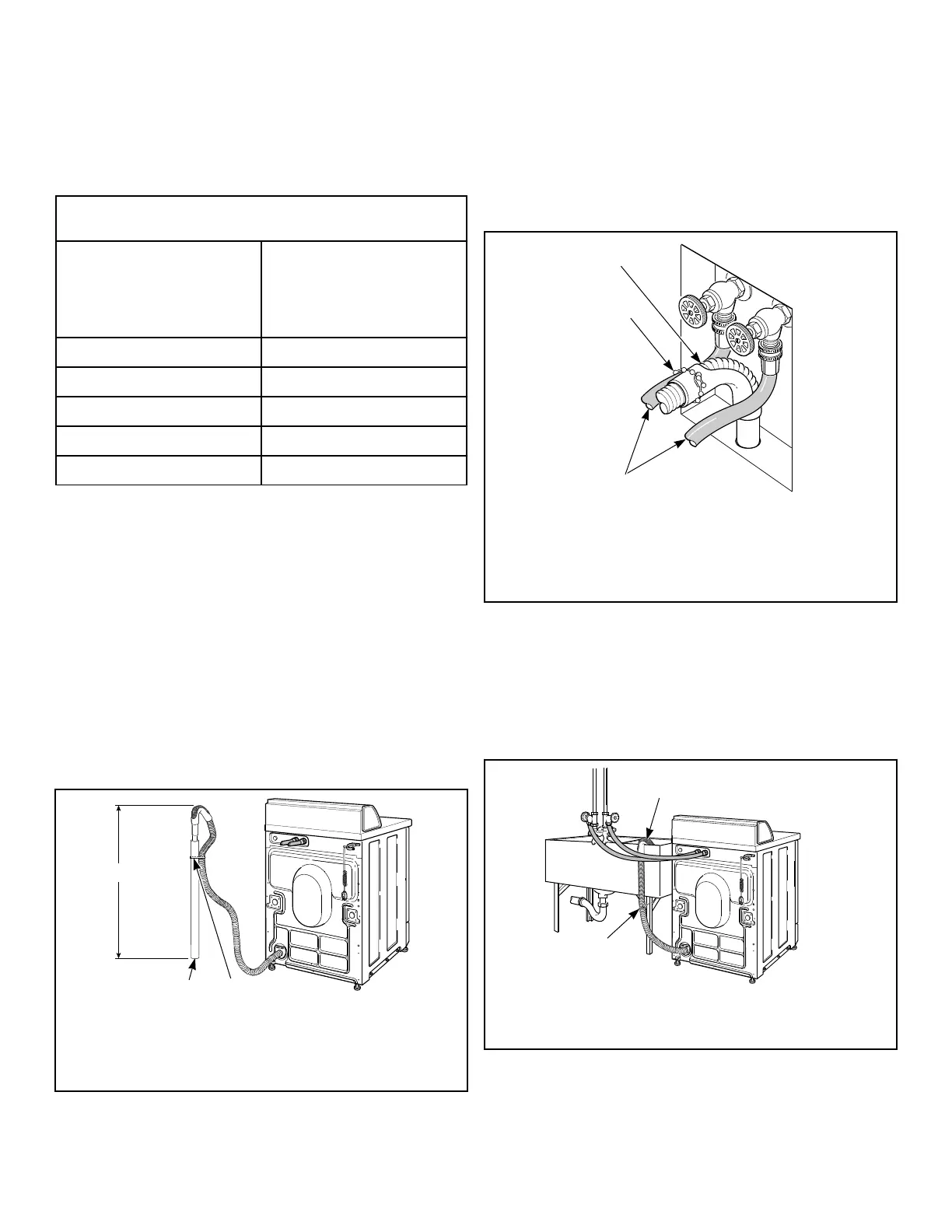

Je bekijkt pagina 10 van 14
Install the drain hose into the drain receptacle (standpipe, wall or
laundry tub) following the instructions below.
IMPORTANT: Drain receptacle must be capable of han-
dling a minimum of 1-1/4 inch [32 mm] outside diame-
ter drain hose.
Drain Flow Rate
Drain Height
Flow Rate
gallons per minute [lit-
ers per minute]
3 ft. [0.9 m] 8.6 [32.7]
5 ft. [1.5 m] 6.8 [25.9]
6 ft. [1.8 m] 6.0 [22.7]
7 ft. [2.1 m] 5.1 [19.5]
8 ft. [2.4 m] 4.0 [15.2]
Standpipe Installation
1. Place the drain hose into the standpipe.
2. Remove the beaded tie-down strap from accessories bag and
place around standpipe and drain hose. Refer to Figure 8 .
a. Insert the end of the beaded strap into the larger hole
found on the end of the strap.
b. Tighten to desired fit.
c. Lock strap in place by pulling beaded strap into the ta-
pered smaller opening of the beaded strap end. A distinct
snap noise should be heard once the strap is properly seat-
ed.
d. Pull on the strap once locked in place to ensure beaded
strap is properly installed. This will prevent the drain hose
from dislodging from drain receptacle during use.
FLW2301N_SVG
2
3
1
1.
24 to 36 in. [610 to 914 mm] Recommended Height
2. Beaded strap from accessory bag
3. Standpipe 2 in. [51 mm] or 1-1/2 in. [40 mm]
Figure 8
Wall Installation
For installations of this type, the drain hose MUST be secured to
one of the fill hoses using the beaded strap from accessories bag.
Refer to Figure 9 .
NOTE: End of drain hose must not be below 24 in. [610
mm] .
H023i_SVG
1
3
2
1. Drain Hose
2. Beaded Strap (tape if necessary)
3. Fill Hoses
Figure 9
Laundry Tub Installation
For this type of installation, the drain hose MUST be secured to
the stationary tub to prevent hose from disloding during use. Re-
fer to Figure 10 . Use the beaded strap (supplied in accessories
bag) to secure hose.
FLW2302N_SVG
1
2
1.
Drain Hose
2. Beaded Strap (tape if necessary)
Figure 10
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. 806987ENR2
