Exhausting the dryer through sides or bottom can be accomplish-
ed by installing a Directional Exhaust Kit, 528P3, available as
optional equipment at extra cost.
Exhaust System
For best drying results, recommended maximum length of ex-
haust system is shown in Table 2 .
To prevent backdraft when dryer is not in operation, outer end of
exhaust pipe must have a weather hood with hinged dampers (ob-
tain locally).
NOTE: Weather hood should be installed at least 305
mm [12 inches] above the ground. Larger clearances
may be necessary for installations where heavy snow-
fall can occur.

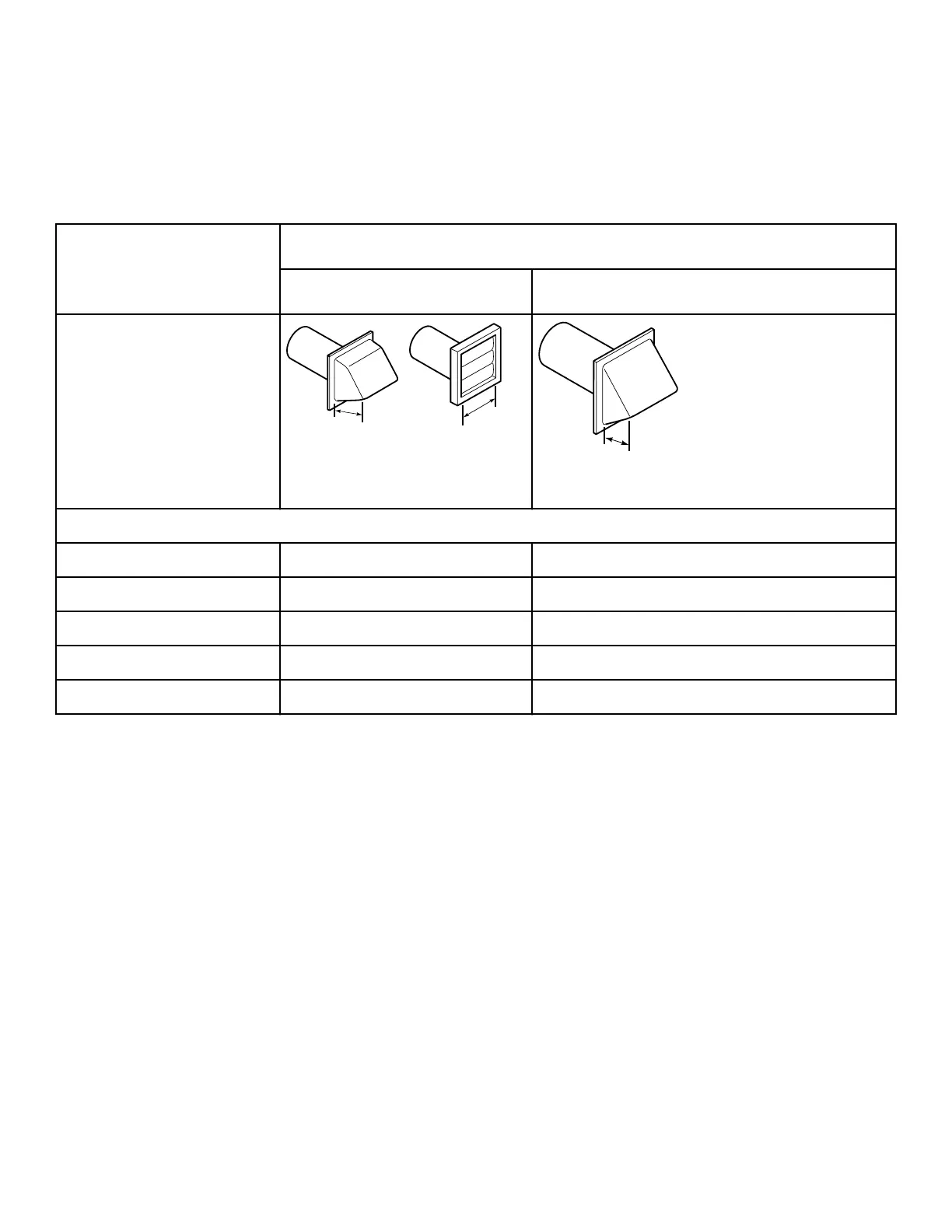

Number of 90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
D673I_SVG
1
1
1. 102 mm [4 in.]
D802I_SVG
1
1. 64 mm [2.5 in.]
Maximum length of 102 mm [4 in.] diameter rigid metal duct.
0 19.8 m [65 feet] 16.8 m [55 feet]
1 16.8 m [55 feet] 14.3 m [47 feet]
2 14.3 m [47 feet] 12.5 m [41 feet]
3 11.0 m [36 feet] 9.1 m [30 feet]
4 8.5 m [28 feet] 6.7 m [22 feet]
Table 2
NOTE: Deduct 1.8 m [6 feet] for each additional elbow.
NOTE: The maximum length of a 102 mm [4 in.] diame-
ter flexible metal duct must not exceed 2.4 m [7.87 ft.],
as required to meet UL2158, clause 7.3.2.A.
Multi-Dryer Installation Exhaust Requirements
Figure 6 shows a typical example of a multiple dryer installation.
Note how each dryer has its own exhaust system vented to the
central exhaust duct.
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. D514691ENR8
