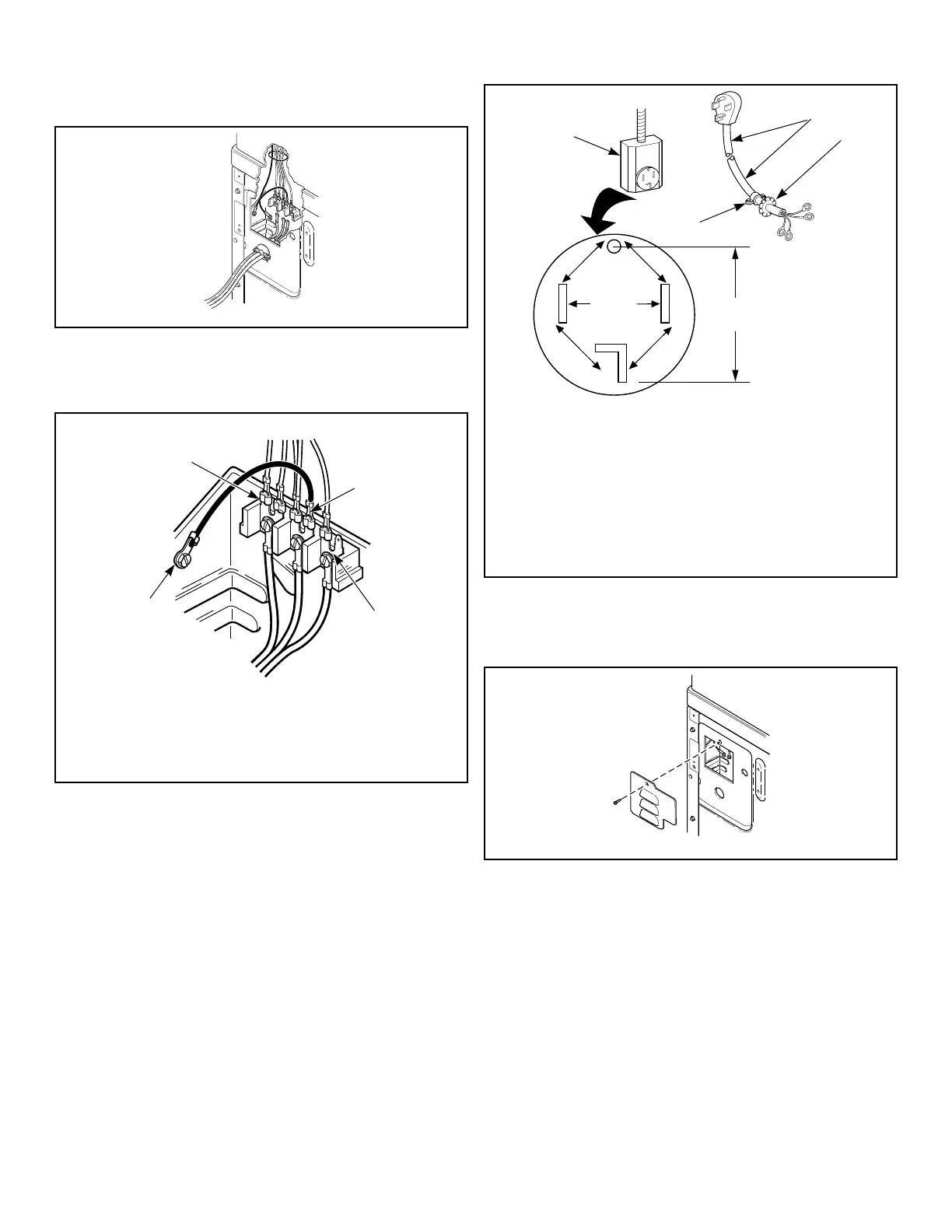

3. Use a strain relief and insert end of power cord through power
supply hole.
D696I_SVG
Figure 15
4. Use the three screws from the accessories bag to attach the
power cord wires to the terminal block. Refer to Figure 16 .
3-Wire Connection
DRY2508N_SVG
4
3
2
1
1. "L1" Terminal
2. Neutral Terminal
3. "L2" Terminal
4. Earth/Ground to Bulkhead
Figure 16
5. Using a screwdriver, tighten all screws firmly.
IMPORTANT: Failure to tighten these screws firmly
may result in wire failure at the terminal block.
6. Secure the strain relief to the power cord, or wires, where they
enter the dryer cabinet.
7. Check the continuity of the earth/ground connection before
plugging the cord into an outlet. Use an acceptable indicating
device connected to the center earth/ground pin of the plug
and the green screw on the back of the cabinet.
8. Reinstall access cover and screw.
Connecting Power Cord with Four-Wire Plug
NOTE: Four-wire cord is required for new branch-cir-
cuit installations, mobile homes or where codes do not
permit grounding through neutral.
DRY2016N_SVG
7
7
7
7
6
3
2
1
4
5
1. Typical Four-Wire Receptacle
2. Power Cord – Not Supplied with Dryer
3. Strain Relief Nut
4. Strain Relief
5. 0 V.A.C.
6. 240 ± 12 V.A.C.
7. 120 ± 12 V.A.C.
Figure 17
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
DRY2467N_SVG
Figure 18
3. Remove earth/ground screw from earth/ground to neutral wire
and save for use in Step 5. Earth/ground to neutral wire will
be attached to the neutral terminal in Step 6.
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
25 Part No. D514691ENR8
