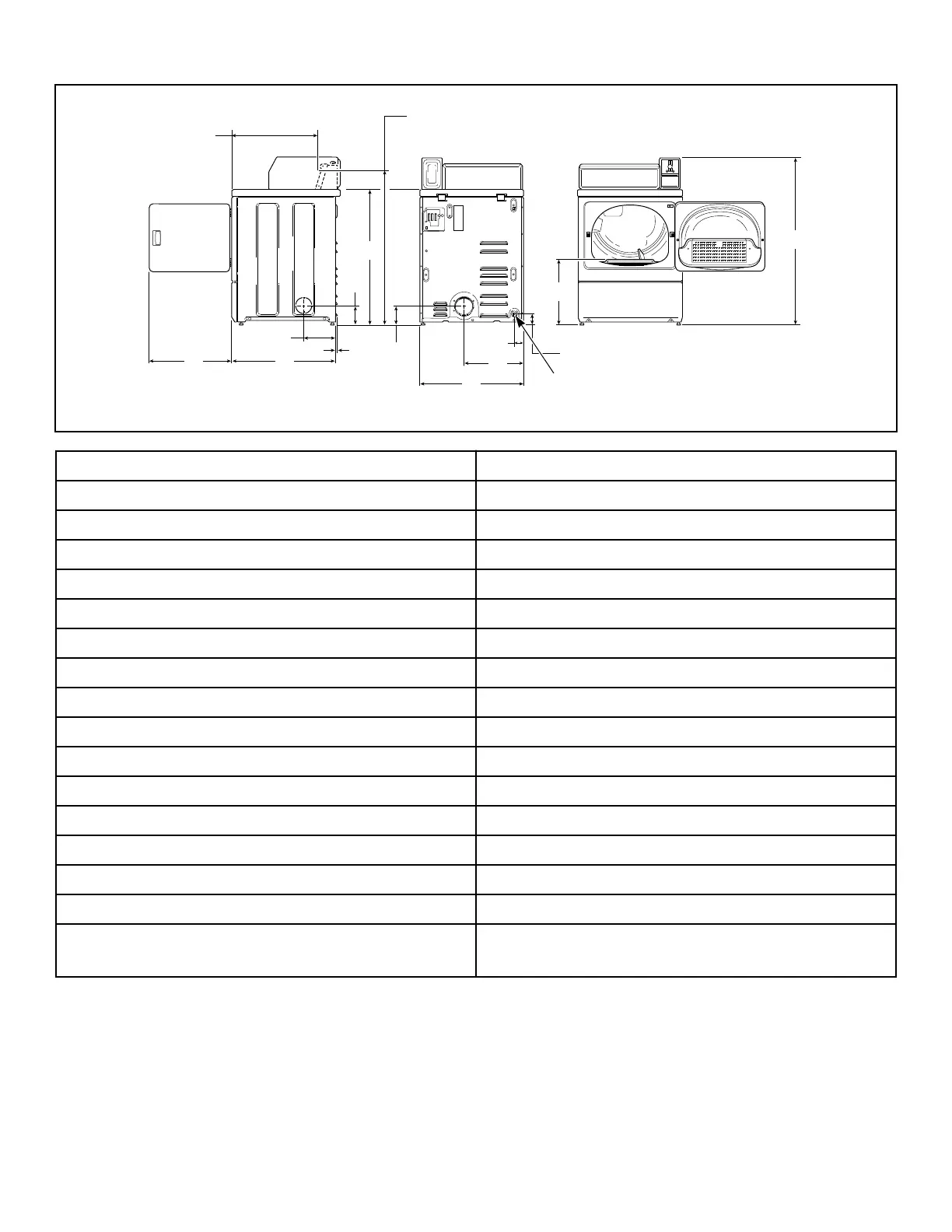

Gas Models
DRY2585N_SVG
K
N
M
L
G
F
E
D
J
B
A
C
H
O
I
1
1. 3/8 in. N.P.T. Gas Connection
A 560 mm [22.06 in.]
B *970 mm [38.19 in.]
C - Standard Capacity Meter Case *1092 mm [43 in.]
C - High Capacity Meter Case *1114 mm [43.875 in.]
D *392 mm [15.44 in.]
E *70 mm [2.8 in.]
F 60 mm [2.3 in.]
G 391 mm [15.4 in.]
H 683 mm [26.875 in.]
I *102 mm [4 in.]
J *914 mm [36 in.]
K *114 mm [4.5 in.]
L 10 mm [0.4 in.]
M 203 mm [8 in.]
N 711 mm [28 in.]
O 597 mm [23.5 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
NOTE: Gas models cannot be vented out left side of
cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient clear-
ance around it for needed ventilation and for the ease
of installation and servicing. For maximum drying per-
formance, we recommend that more clearance be al-
lowed around the dryer than the clearances that are lis-
ted throughout this manual.
Dimensions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. D514691ENR8
