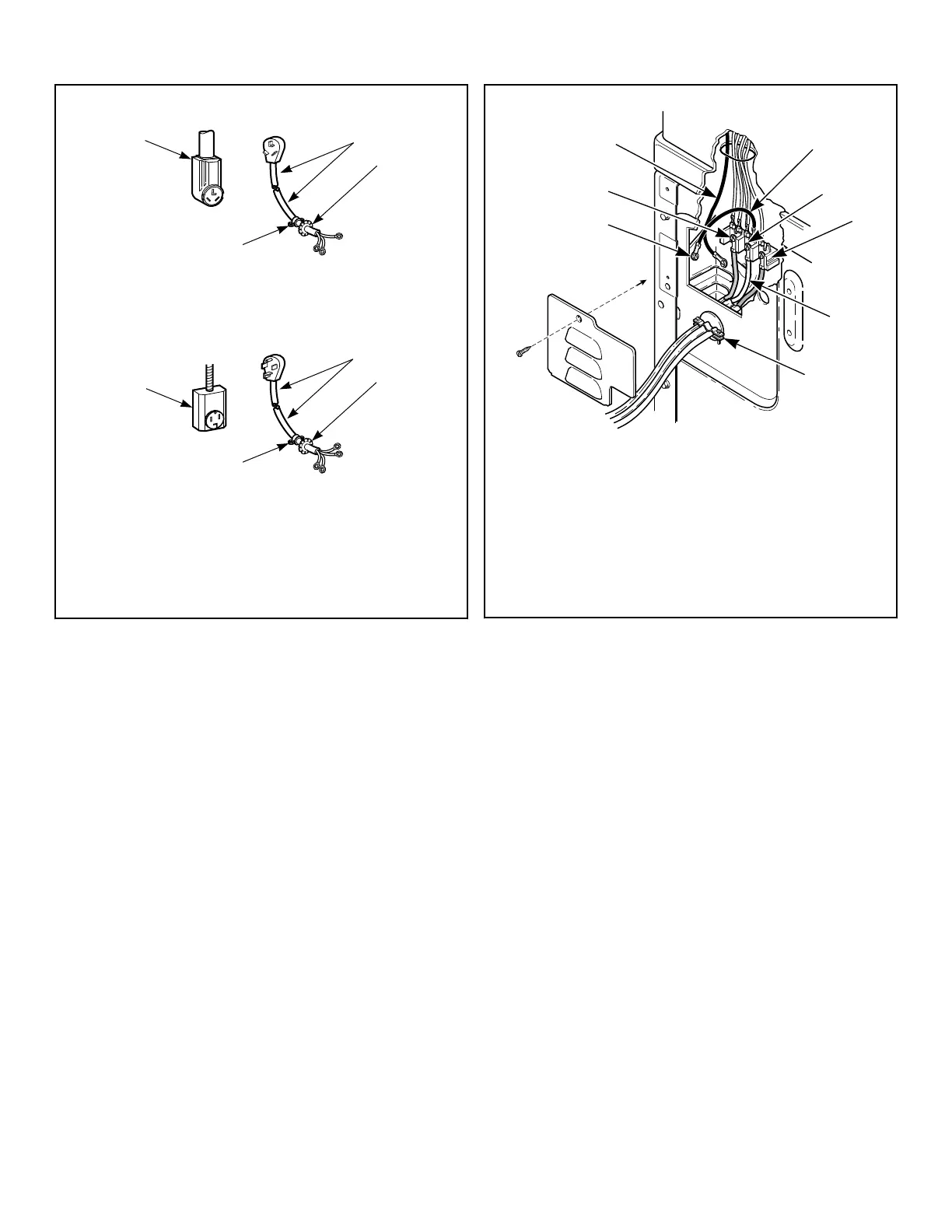

Three-Wire
D275I_SVG
3
2
1
4
Four-Wire
D006I_SVG
3
2
1
4
1. Typical Receptacle
2. Power Cord
3. Stain Relief Nut
4. Strain Relief
Figure 10
Three-Wire Connection
D679I_SVG
8
7
6
5
4
3
2
1
1. Ground Wire
2. Ground to Neutral Wire
3. Neutral Terminal
4. “L2” Terminal
5. Center Wire (Neutral)
6. Strain Relief (Not supplied with dryer)
7. Ground Screw
8. “L1” Terminal
Figure 11
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
25 Part No. D516119ENR4
