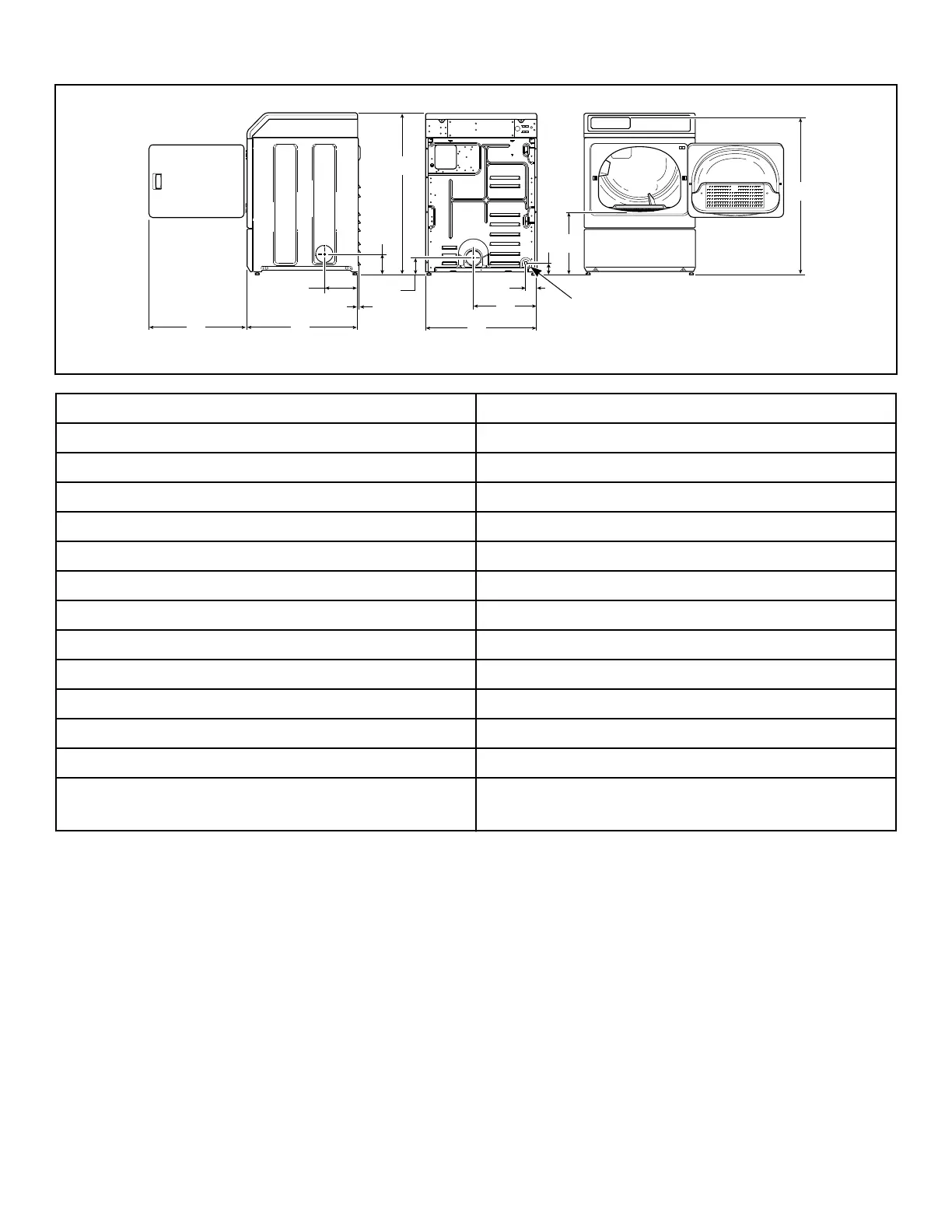

Gas Models
DRY2639N_SVG
F
E
D
C
B
A
J
K
M L
I
H
G
1
1. 3/8 in. NPT Gas Connection
A * 40.42 in. [1027 mm]
B * 39.61 in. [1006 mm]
C * 15.44 in. [392 mm]
D * 2.8 in. [70 mm]
E 2.3 in. [60 mm]
F 15.4 in. [391 mm]
G 26.875 in. [683 mm]
H 4 in. [102 mm]
I * 4.5 in. [114 mm]
J 0.4 in. [10 mm]
K 8 in. [203 mm]
L 28 in. [711 mm]
M 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
NOTE: Gas models cannot be vented out left side of
cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient clear-
ance around it for needed ventilation and for the ease
of installation and servicing. For maximum drying per-
formance, we recommend that more clearance be al-
lowed around the dryer than the clearances that are lis-
ted throughout this manual.
Dimensions
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. D514320ENR7
