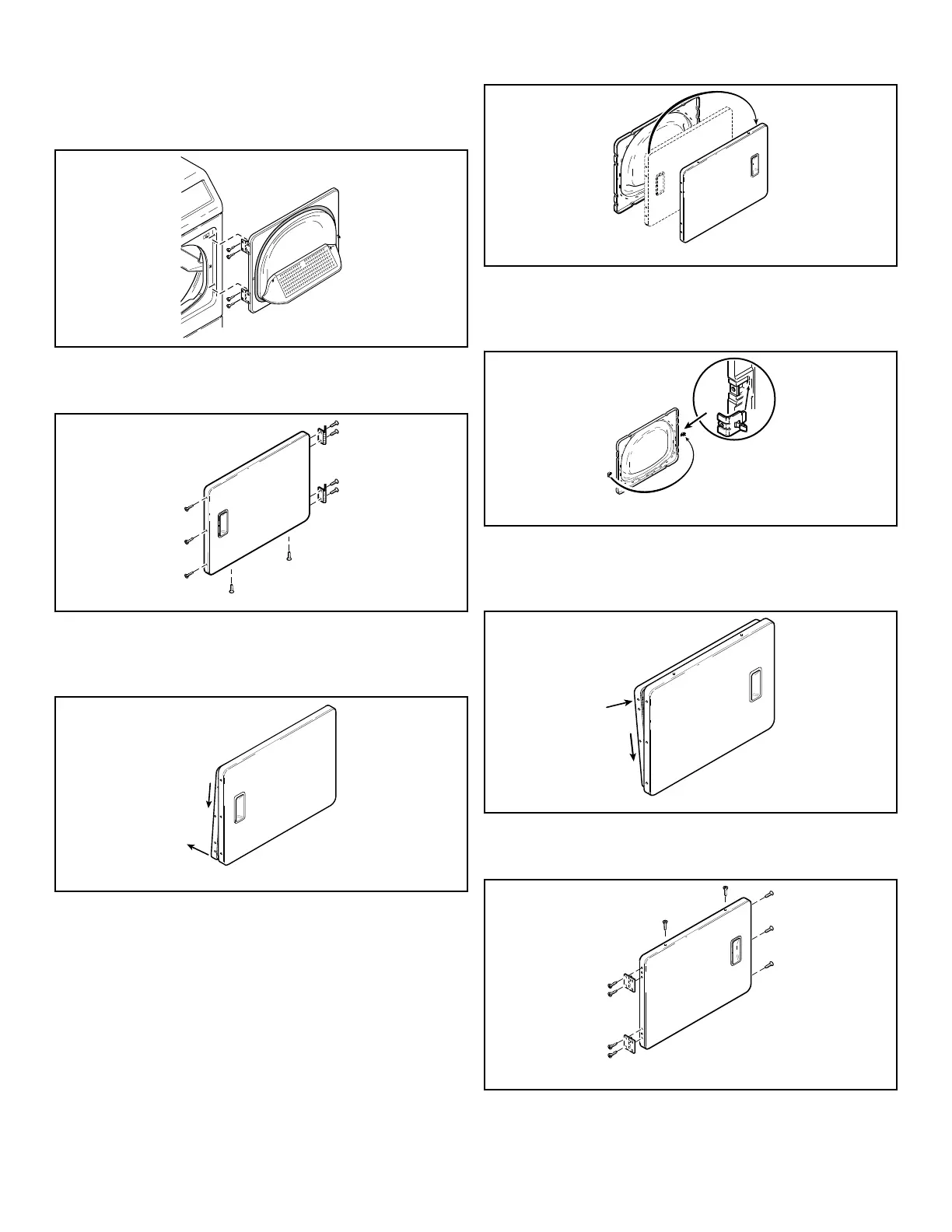

The door on this dryer is completely reversible. To reverse door
proceed as follows:
1. Remove four hinge attaching screws.
DRY2052N_SVG
Figure 15
2. Remove all nine screws.
D272P_SVG
Figure 16
3. Pull bottom of door liner out, then pull down, removing door
liner from door panel.
DRY1916N_SVG
B
A
Figure 17
4. Rotate door panel 180 degrees as shown.
D273P_SVG
Figure 18
5. Remove door strike from door liner and reinstall on opposite
side.
DRY1917N_SVG
Figure 19
6. Insert liner under flange on bottom of door, then push top of
door liner into place.
DRY1918N_SVG
B
A
Figure 20
7. Reinstall nine screws removed in Step 2.
DRY1919N_SVG
Figure 21
Installation
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. D514320ENR7
