Removing
1
Hold the cover and then, remove the screws on the cover.
2
Remove the cover by turning it counter-clockwise and the cover down
vertically.
If it can not be turned, turn the cover while pushing both side ( a).
3
Remove the camera from the ceiling unit.
For details, see the Installation Manual of the camera.
4
Loosen the screws and remove the ceiling unit from the bracket.
5
Remove the cable connecting to the ceiling unit.
For details, see the Installation Manual of the camera.
6
Loosen the left and right screws of the bracket by turning them counter-
clockwise until the fixing plates are in the lengthwise position.
7
Loosen the anchor bolt and remove the bracket from the ceiling.
Notes
Do not attempt to further loosen the left and right screws of the In-Ceiling
ˎ
Bracket when the fixing plates are in a closed position. Damage may be
incurred if the fixing plates forcefully press against the upper part of the In-
Ceiling Bracket.
Hold the bracket and ceiling unit while loosening screws. Otherwise the bracket
ˎ
and ceiling unit may fall.
Specifications
Mass Approx. 990g (2 lb 3 oz) (including cover)
Dimensions See .
Supplied accessories Template (1), M4Ï10 screws (3), Installation
Instructions (1 set)
Optional accessories Dome cover (clear) YT-LD124C
Dome cover (smoked) YT-LD124S

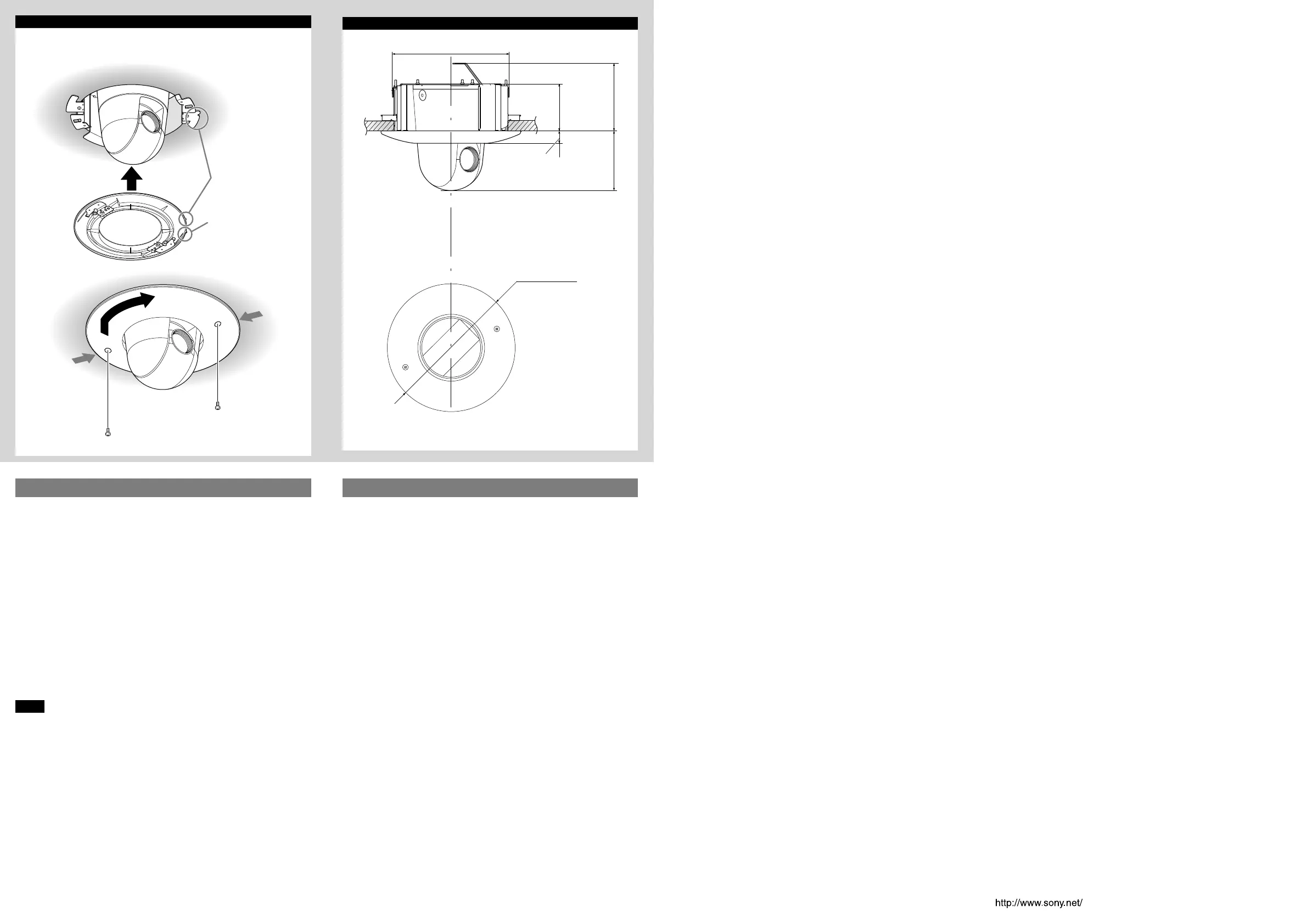

E
Align the marks
Protrusion (round type)
a
a
F
225.7 (9)
ø270 (10
3
/4)
90 (3
5
/8)
131 (5
1
/4)
23.8 (
15
/16)
115.1 (4
5
/8)
225.7
Unit: mm (inches)
