8
Location and function of parts

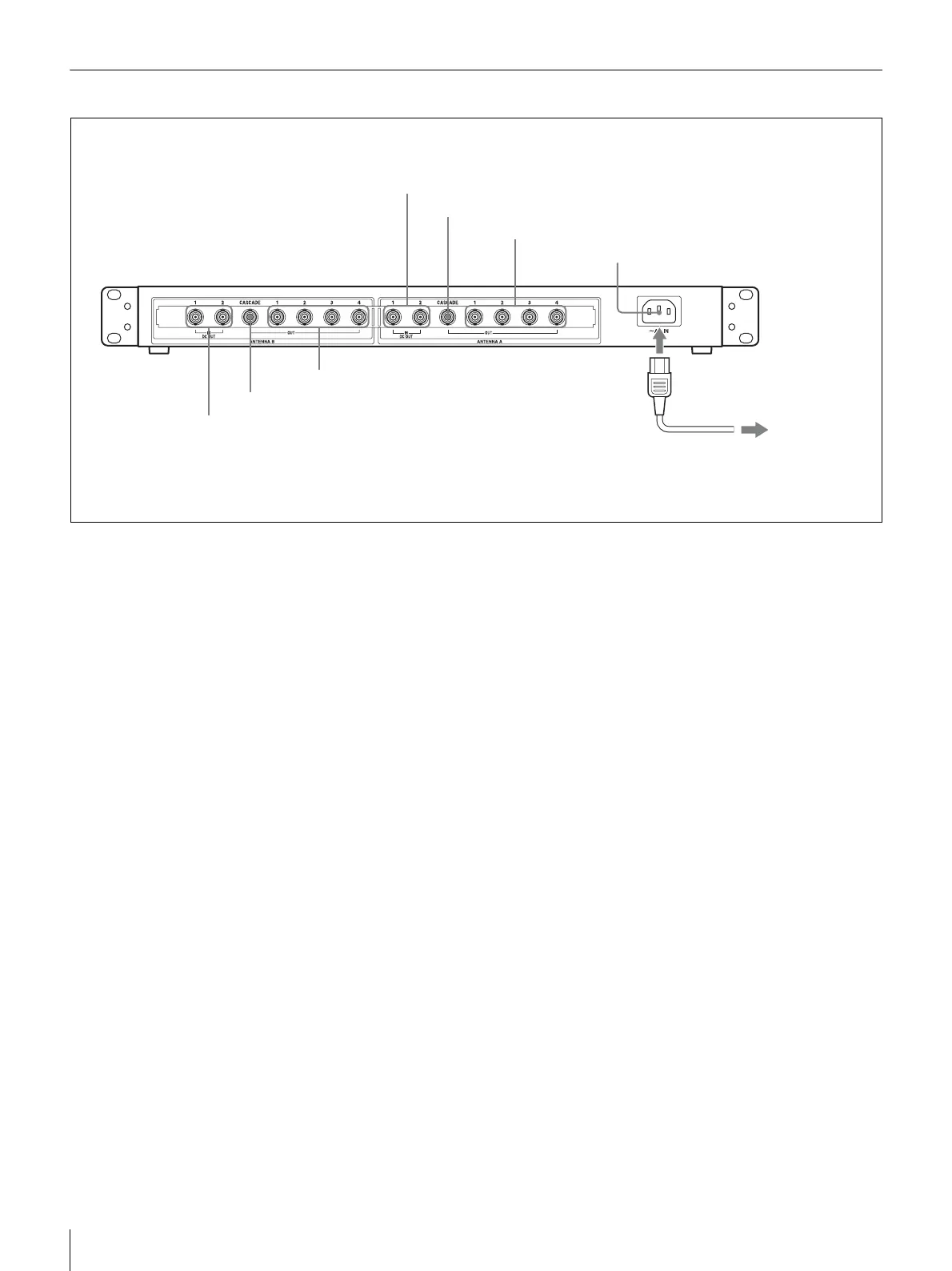

Rear panel
ANTENNA A block
a ANTENNA A IN / DC OUT 1 and 2 (antenna A
input/DC power output 1 and 2) connectors
When connected by coaxial cable, the signal is input from
the Sony UHF antenna while power is supplied to the
antenna’s booster amplifier. The power supply can be set
to 9V or OFF using the ANTENNA A DC OUT switch on
the front panel. Depending on the required range of the
wireless microphone, up to two antennas can be connected.
b ANTENNA A CASCADE connector
During use of two dividers at the same time, connect this
connector to the ANTENNA A IN/DC OUT connector 1
or 2 on the second divider.
c ANTENNA A OUT 1 to 4 (antenna A output 1 to 4)
connectors
Connect from ANTENNA A OUT connector on the unit to
the ANTENNA A IN connector on the tuner.
AC power block
d AC IN connector
Connect to an AC power source with the supplied AC
power cord.
ANTENNA B block
e ANTENNA B IN / DC OUT 1 and 2 (antenna B
input/DC power output 1 and 2) connectors
When connected by coaxial cable, the signal is input from
the Sony UHF antenna while power is supplied to the
antenna’s booster amplifier. The power supply can be set
to 9V or OFF using the ANTENNA B DC OUT switch on
the front panel. Depending on the required range of the
wireless microphone, up to two antennas can be connected.
f ANTENNA B CASCADE connector
During use of two dividers at the same time, connect this
connector to the ANTENNA B IN/DC OUT connector 1 or
2 on the second divider.
g ANTENNA B OUT 1 to 4 (antenna B output 1 to 4)
connectors
Connect from ANTENNA B OUT connector on the unit to
the ANTENNA B IN connector on the tuner.
2 ANTENNA A CASCADE connector
1 ANTENNA A IN/ DC OUT 1 and 2 connectors
3 ANTENNA A OUT 1 to 4 connectors
5 ANTENNA B IN/ DC OUT 1 and 2 connectors
4 AC IN connector
7 ANTENNA B OUT 1 to 4 connectors
AC power cord (supplied)
6 ANTENNA B CASCADE connector
to an AC power source
