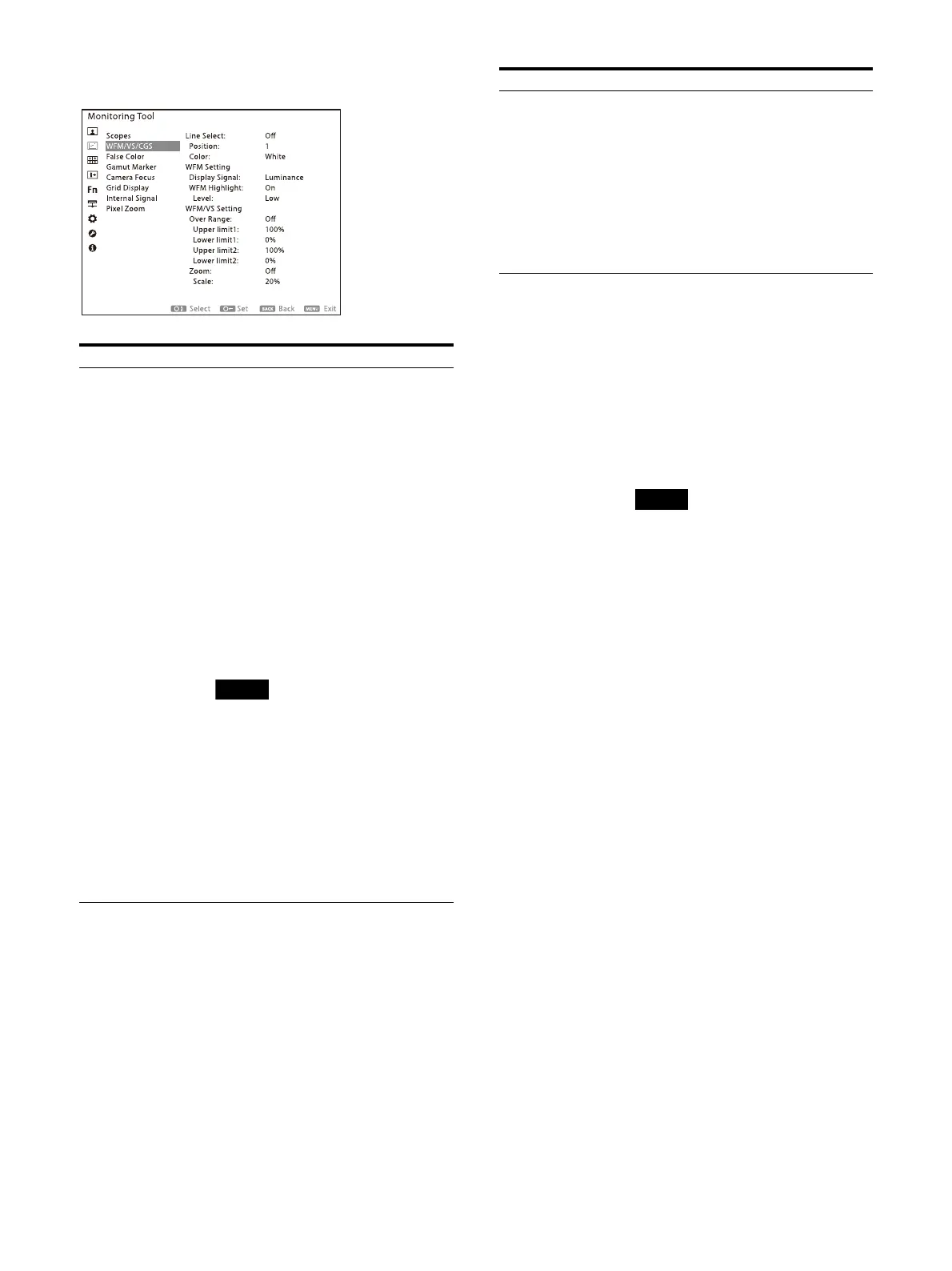

Submenu Setting

Line Select

 On: Displays the waveform of the

line specified for “Position” as

described below in WFM (Wave

Form Monitor) , Vector Scope

(vector scope) and CGS (Color

Gamut Scope).

 Off: Displays the normal waveform.

When “On” is selected

 Position: Set where the line is to be

displayed. Turn the CONTRAST

knob on the front panel of this

unit or on the controller to

operate it. Increasing the value

moves the line downwards and

decreasing the value moves it

upwards.

 Color: Select the display color of the

line.

Notes

 Even when “Line Select” is set to

“On”, the line is not displayed if

“WFM”, “Vector Scope” and “CGS” in

“Display” of “Scopes” are all set to

“Off“.

 For Quad View and Side by Side

displays, set the position of Screen

A. Since Screen B is set to the same

line on the screen display as Screen

A, the value of "Position” and the

position of the waveform line on

the display may not match.

WFM Setting

Display Signal Select the signal to be displayed on

the w

eform monitor.

 Luminance

 R

 G

 B

 YCC

 RGB parade

 RGB overlay

WFM Highlight  On: Highlights large frequency areas

in white on the waveform

monitor.

 Off: Does not highlight large

frequency areas.

When “On” is selected

 Level: Select the display level for the

white highlight.

 Low (Dark)

 Middle (Medium)

 High (Light)

WFM/VS Setting

Over Range The area exceeding the upper/lower

imit

of the specified signal level is

colored in magenta.

 Upper limit1: Sets an upper limit on

the signal level for Over Range.

 Lower limit1: Sets a lower limit on

the signal level for Over Range.

 Upper limit2: Sets an upper limit on

the signal level for Over Range.

 Lower limit2: Sets a lower limit on

the signal level for Over Range.

Notes

 When “RGB overlay” is selected for

“Display Signal” in “WFM Setting,”

magenta does not appear on the

area exceeding the upper/lower

limit though it is set in “Over

Range.”

 The "Upper limit1" and "Lower

limit1" settings apply to the

following.

-WFM/VS for Single View

-WFM/VS displayed in the lower left

ner (Screen C) in Quad View

-WFM/VS displayed in the lower left

orn

er (Screen A) in Side by Side

 The "Upper limit2" and "Lower

limit2" settings apply to the

following.

-WFM/VS displayed in the lower

t corner (Screen D) in Quad

View

-WFM/VS displayed in the lower

ight

corner (Screen B) in Side by

Side

 WFM and VS are not displayed

when an on-screen display such as

the menu screen, channel selection

screen or format display screen is

displayed.

 When "Format Display" is set to

"Off", WFM and VS will not be

hidden by the Format Display

(page 85).

Submenu Setting
