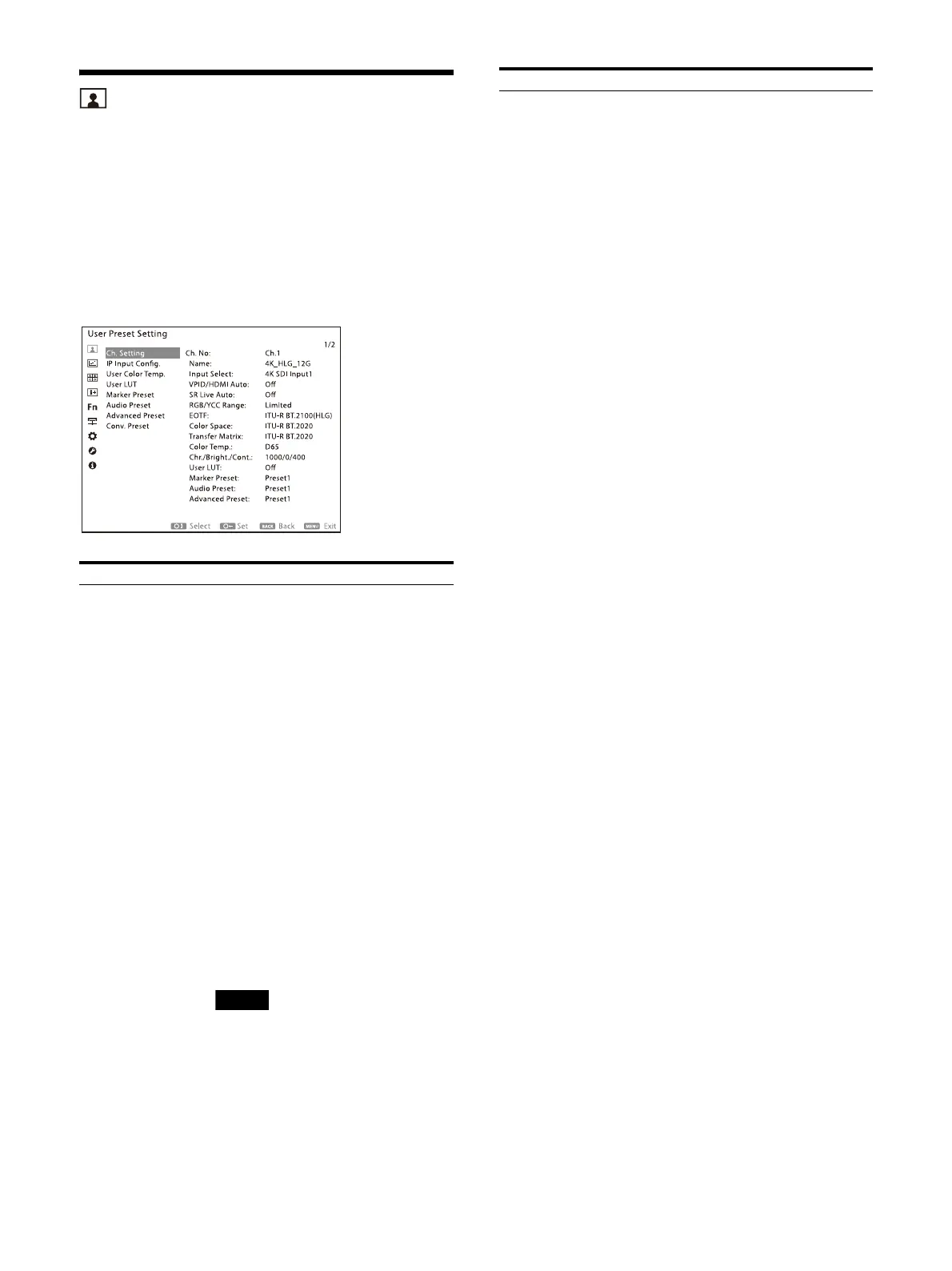

User Preset Setting menu

All channel settings can be configured or

adjusted. You can also copy the setting values

from one channel to apply them to another.

Ch. Setting

The input signal and video settings can be

adjusted.

Submenu Setting

Ch. No Select the channel to be configured.

Name Sets the channel name.

Input Select Select the connector and signal from

following.

 4K/2K SDI Input1

 4K/2K SDI Input3

 4K SDI Input1,2,3&4

 4K SDI Input1&2

 4K SDI Input3&4

 4K SDI Input1

 4K SDI Input3

 2K SDI Input1&2

 2K SDI Input3&4

 2K SDI Input1

 2K SDI Input2

 2K SDI Input3

 2K SDI Input4

 HDMI

 4K/2K IP Input1

 2K IP Input2

 4K/2K IP Input3

 2K IP Input4

1) BVM-HX3110/HX1710N only

Notes

 “4K/2K SDI Input1” and “4K/2K SDI

Input3” automatically distinguish

between 4K and 2K signals.

 When selecting “4K/2K IP Input1”,

“2K IP Input2”, “4K/2K IP Input3”, or

“2K IP Input4”, make sure to set “IP

In. Power Down (BVM-HX3110/

HX1710N)” (page 85) in the “System”

menu to “Off”.

 When selecting “4K/2K IP Input1”,

“2K IP Input2”, “4K/2K IP Input3”, or

“2K IP Input4”, make sure to set IP

signal configuration with “IP Input

Config. (BVM-HX3110/HX1710N)”

(page 38) in advance.

VPID/HDMI Auto

 On: “RGB/YCC Range,” “EOTF,”

“Color Space,” and “Transfer

Matrix” are automatically set as

appropriate based on the

Payload ID (VPID) signal

information when the SDI/IP

stream (ancillary data) is input,

and set as appropriate based

on the HDMI InfoFrame signal

information when the HDMI

signal is input.

 Off: When "SR Live Auto" is "On," the

setting conditions are followed.

When "SR Live Auto" is "Off,"

the values set for “RGB/YCC

Range,” “EOTF,” “Color Space,”

and “Transfer Matrix” are used.

SR Live Auto

 On: Automatically sets a group of

items required for conversion

settings from HDR signal to SDR

signal of "EOTF," "Color Space,"

"Transfer Matrix" and "Conv.

Preset."

The settings are configured

rding to the HDR SDR

Relation Table (items that need

to be set to generate SDR

signals from HDR signals)

included in the SR Live

Metadata of the input SDI/IP

stream (ancillary data).

For items for which SR Live

adata does not exist or is

invalid, the setting value for the

corresponding item in the

conversion preset data is

applied.

When OETF of HDR SDR

elat

ion Table is S-Log3, "EOTF"

is automatically set to "S-

Log3(Live HDR)."

When both "SR Live Auto" and

PID

/HDMI Auto" are "On," the

HDR SDR Relation Table

information of "SR Live Auto"

takes precedence over the

settings of "EOTF," "Color

Space" (Color Gamut) and

"Transfer Matrix."

 Off: When "VPID/HDMI Auto" is

"On," the setting conditions are

followed. When "VPID/HDMI

Auto" is "Off," the values set in

"EOTF," "Color Space," "Transfer

Matrix" and "Conv. Preset" are

used for a group of items

required for the HDR signal to

SDR signal conversion settings.

Submenu Setting
