53

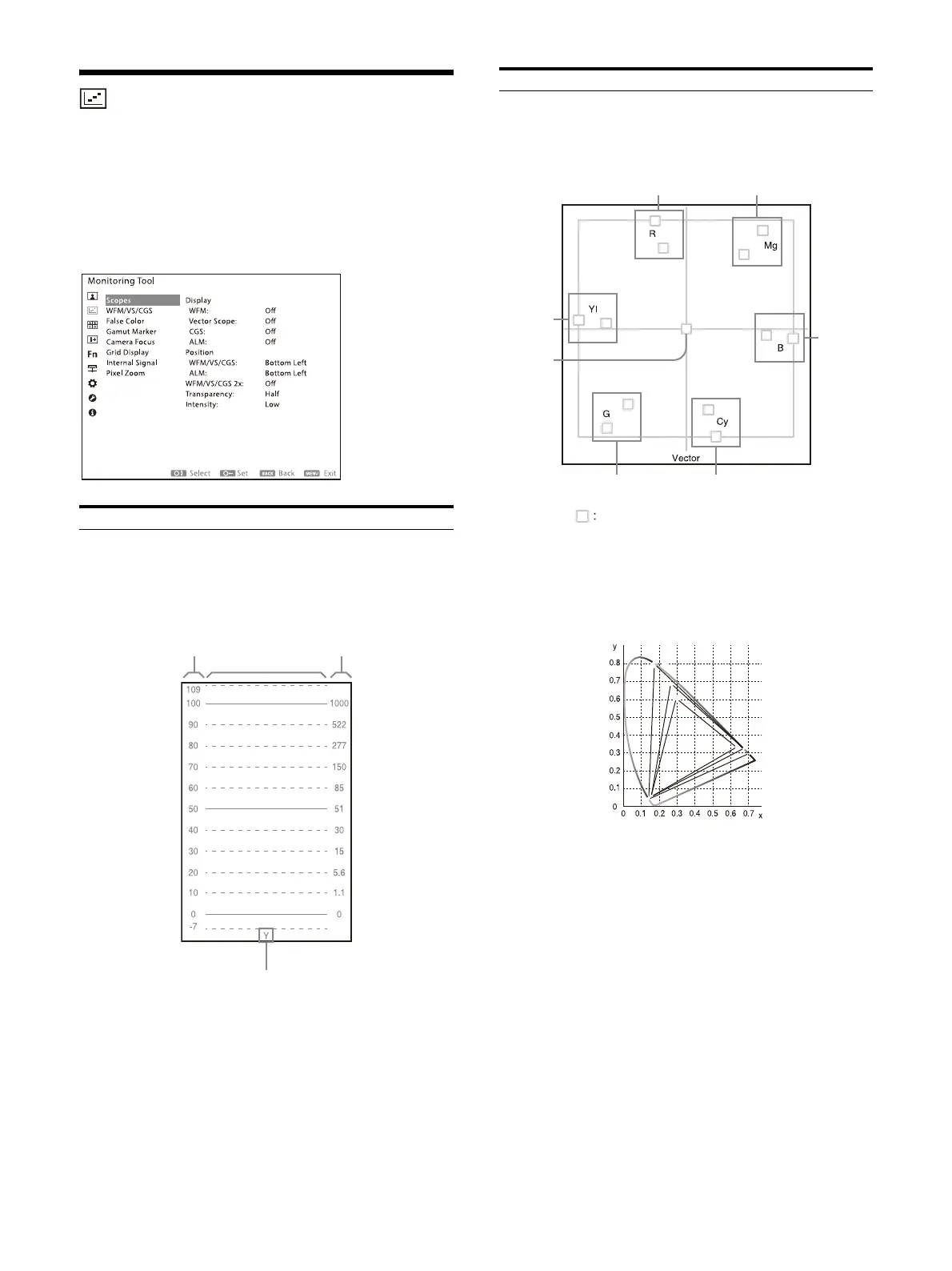

Monitoring Tool menu
The monitoring function for the input video
signal and recording assistance function are
configured.
Scopes
Submenu Setting
Display
WFM Sets whether to display WFM (Wave
F
orm Monit
or). Select “On” to display
the waveform.
1) The signal tone is displayed when EOTF is set to 2.2, 2.4,
2.
6,
CRT, or 2.4(HDR). The brightness of the input signal is
displayed w
hen EOTF is set to SMPTE ST 2084. When it is
set to ITU-R BT.2100(HLG), the brightness of the input signal
corresponding to the brightness of the monitor is
displayed. The brightness is calculated from the default
value of the System Gamma (page 36), and the display of
the scale does not change even if you change the System
G
am
ma settings. When EOTF is set to S-Log3 or S-Log3(Live
HDR), the brightness for input signals defined in SR Live for
HDR workflow is displayed.
Signal level (%)
Waveform
Signal tone or
brightness
1)
Type of the waveform
Vector Scope Sets whether to display Vector Scope
(vector scope). Select “On” to display
the color difference components of the
video signal as vectors.
CGS Sets whether to display CGS (Color
G
am
ut Scope). Select "On" to map the
video signal to x and y coordinates.
Different triangles based on the color spaces are displayed on
th
e C
IE1931 xy chromaticity diagram.
Color space settings
ITU-R BT.709/EBU/SMPTE-C: A triangle indicating the
chromaticity range of ITU-R BT.709 is displayed.
ITU-R BT.2020: Triangles (chromaticity range) indicating
ITU-R BT.709, DCI-P3, and ITU-R BT.2020 are displayed
in ascending order of size.
S-Gamut/S-Gamut3: Triangles (chromaticity range)
indicating ITU-R BT.709, DCI-P3, and S-Gamut/S-
Gamut3 are displayed in ascending order of size.
S-Gamut3.Cine: Triangles (chromaticity range) indicating
ITU-R BT.709, DCI-P3, and S-Gamut3.Cine are displayed
in ascending order of size.
DCI-P3: Triangles (chromaticity range) indicating ITU-R
BT.709 and DCI-P3 are displayed in ascending order of
size.
Submenu Setting
Red
Color target frame (The outer frame
indicates 100 %, and the inner frame
indicates 75 %.)
Magenta
Blue
CyanGreen
Black
Yellow
