Attaching to the monitor
3
GB
Attaching to the monitor
Accessories supplied
• Security attachments (2)
•PSW5 × 16 Screws (2)
• Instructions for Use (1)
• Information for Customers in Europe (1)

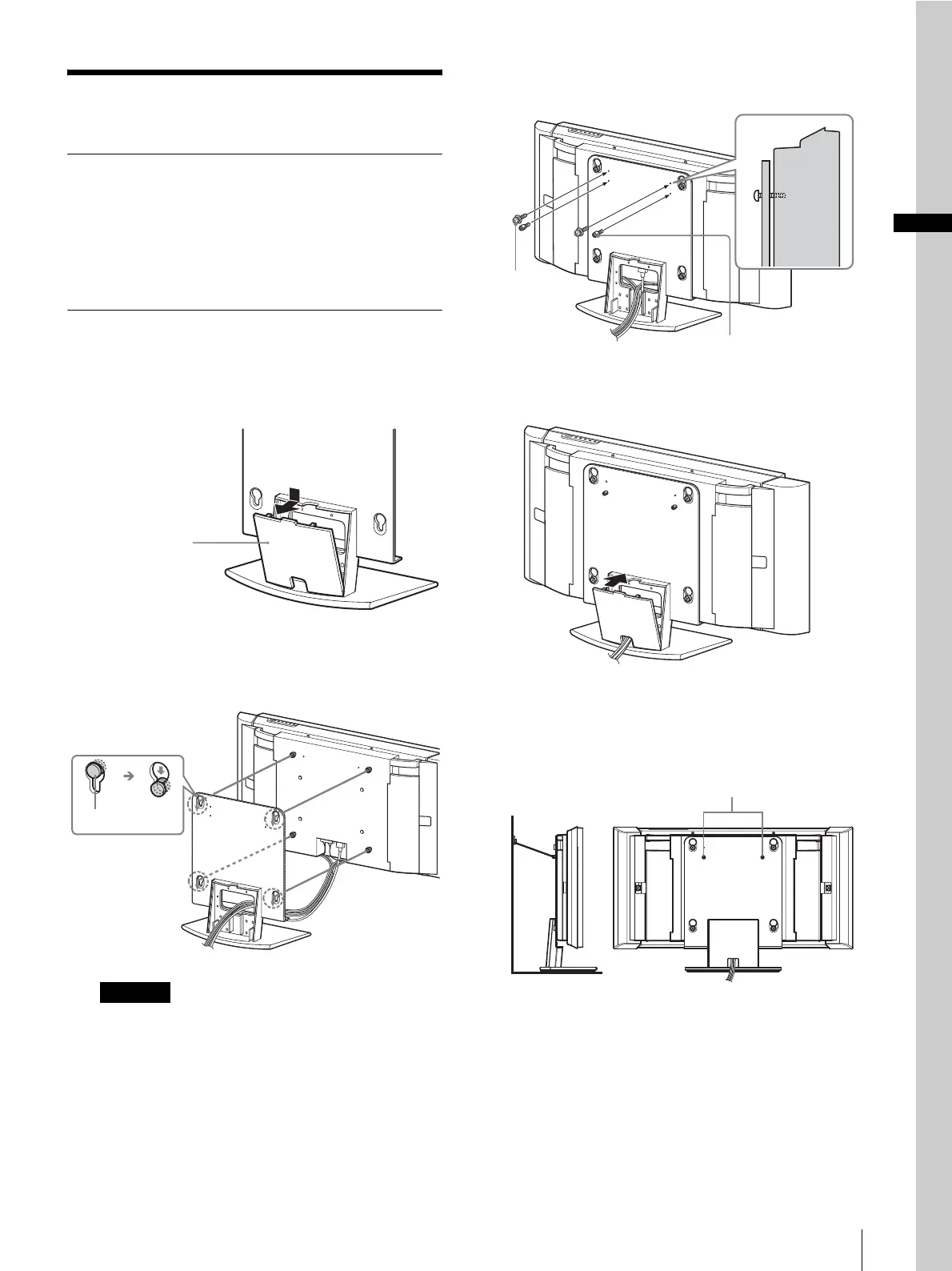

Attaching method
1 Remove the cable cover.
To remove the cable cover, push down on the tab at
the center top and pull it towards you.
2 Insert the hooks on the rear of the monitor
(4 locations) in the holes on the main bracket of the
Tabletop Stand (4 locations), then slide the monitor
straight downward.
Warning
• When attaching a monitor to the Tabletop Stand,
two persons should work together.
• Before tightening screws, check to make sure that
all the hooks on the rear of the monitor are
properly positioned in the holes on the main
bracket of the Tabletop Stand.
• Bundle the cables and draw them through the
hole on the stand.
3 Secure the monitor using the supplied screws (2).
Then, attach the security attachments.
4 Route the cables through the stand and attach the
cable cover again.
5 Anchor the stand to a wall. Draw a wire (or the like)
through the holes in the security attachments
located on the upper part of the main bracket and fix
the wire to a wall.
Cable cover
Hooks
Screws
Security attachments
Security attachments
GB
