Features and Functions
7
Features and Functions

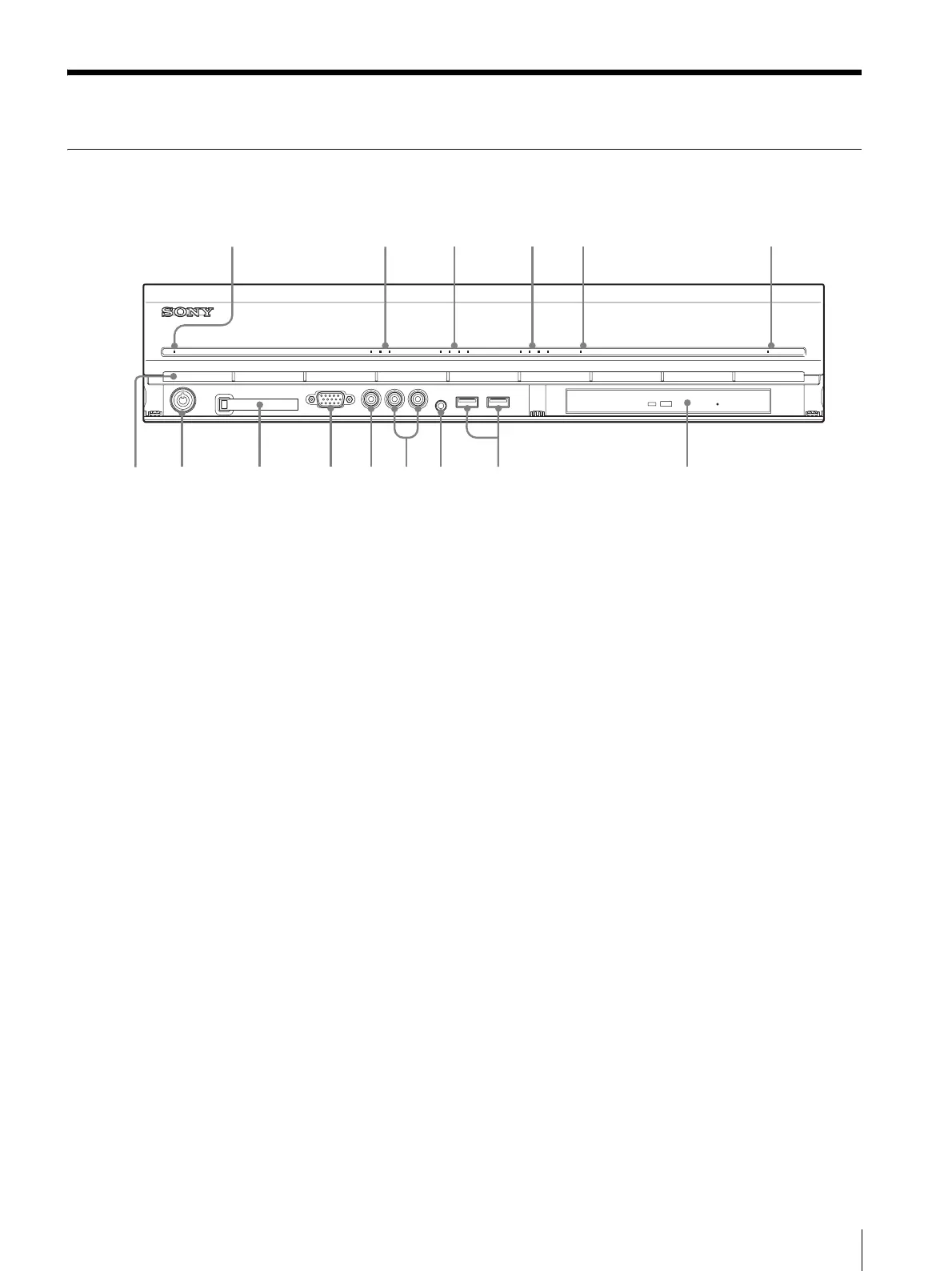

Front
NSR-100/50
A Power LED
Alternates between green and amber lights when the unit
is starting up.
Lights green when startup is complete.
Lights amber when it is on standby.
B Network LED (1 to 3)
Lights green when there is activity at the corresponding
LAN connector at the rear of the NSR.
C HDD LED
Blinks green when the internal hard disks are accessed.
Lights amber when an error occurs with a hard disk.
D Status LED (1 to 4)
Lights in sequence (1, 2, 3, 4) when the NSR starts.
When an error occurs, the corresponding status LED
lights together with the error LED, which lights or blinks
to indicate the type of error.
For details, see “STATUS LED” (page 23).
E Error LED
Lights or blinks when an error occurs.
F REC LED
Lights when recording images.
G DVD/CD drive
Use this drive to write data from the NSR hard disks to
DVD and CD.
* For details on compatible media, refer to the “User’s
Guide” (PDF) on the supplied “NSR Series Manual, Tool
& Source Codes CD”.
H USB connector
Use this connector to connect a USB keyboard, mouse,
USB flash memory or the RM-NS10 remote control to
the NSR.
I Audio input connector*
Use this connector to input audio from a peripheral
audio device, such as a microphone.
J Audio output connectors (L and R)
Use these connectors to output audio to a peripheral
audio device.
K Video output connector
Use this connector to output video to a peripheral video
device, such as a VCR.
The displayed images are the same as those for monitor
connector 1.
L Monitor connector 1
Use this connector to connect a monitor.
M CompactFlash card slot
Use this slot to save configuration data from the NSR
hard disks to a CompactFlash card.
POWER 1 2 3NETWORK 1 2 3 4HDD 1 2 3 4 ERRORSTATUS REC
123 4 5 6
708q
a
9q
s
q
d
q
f
q
g
