Installation
11
Installation
When you are sure that the site chosen to set up the
NSR provides appropriate space and strength to
support the recorder, connect the AC power cord.
The NSR-100 weighs approx. 14 kg (31.1 lb.), the
NSR-50 weighs approx. 12 kg (26.7 lb.), and NSR-25
weighs approx. 11 kg (24.2 lb.). The NSR has the

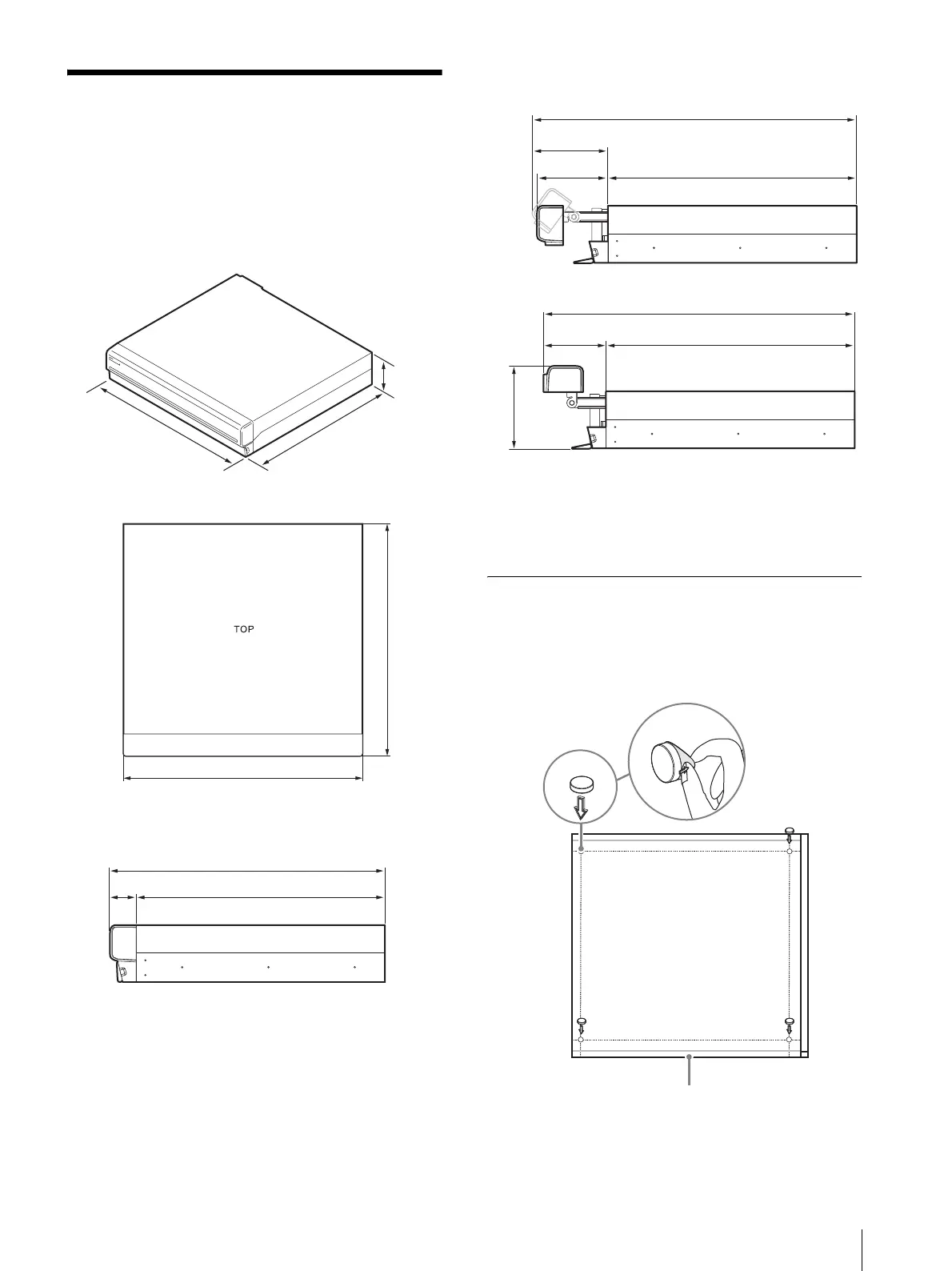

following dimensions.
Top
When the front bezel is closed
When the front bezel is opened
You can set up the NSR in a rack mount or on a flat
surface. If you plan to set it up on a flat surface, you must
attach the supplied rubber feet to the bottom of the
chassis.
Installation Without a Rack
Attach the provided rubber feet to the recorder.
Place the recorder upright so that the bottom surface is
visible. Then affix the adhesive surfaces of the rubber
feet on the bottom of the recorder as illustrated below.
16.9 in.
(430 mm)
16.4 in.
(417 mm)
3.4 in.
(87 mm)
16.9 in. (430 mm)
16.4 in. (417 mm)
16.4 in. (417 mm)
14.8 in. (377 mm)1.6 in. (40 mm)
19.4 in. (494 mm)
4.6 in.
(117 mm)
4.2 in.
(106 mm)
14.8 in. (377 mm)
14.8 in. (377 mm)
4.0 in.
(102 mm)
18.9 in. (479 mm)
4.8 in.
(123 mm)
Rubber
foot
Remove
the film
Bottom of the unit
