HDC1000R/1000: HKC-HB10 Installed
HDC1000R/1000: HKC-HB10 Installed
Side Panels
a SDI 1 connector (BNC type)
You can select the output signal with SDI-1 OUT on the
<SDI OUT> page of the MAINTENANCE menu.
For Dual Link formats: LINK-A, HD PROMPTER,
3G-SDI
For Single Link formats: MAIN(HD-SDI), HD
PROMPTER
Output signal selection is not possible when the camera is
used in a COAXIAL connection system (page 25) or Dual-
Camera system (page 26), as the connector is used for
connection to a camera control unit or connection between
the primary camera and secondary camera.
For the signal settings, see “Video Formats and the Output
Signals of the Camera” (page 11).
b SDI 2 connector (BNC type)
For HD-SDI or SD-SDI signal output.
Select the output signal with SDI-2 OUT on the <SDI
OUT> page of the MAINTENANCE menu. You can select
from among MAIN(HD-SDI), VF, RET, and SD-SDI.
LINK-B can also be selectable when the camera is used
with a Dual Link format.
For the signal settings, see “Video Formats and the Output
Signals of the Camera” (page 11).
c HD TRUNK IN connector (BNC type)
The conventional PROMPTER 2 output connector is
changed to a trunk signal input connector.
When a camera control unit equipped with an HD TRUNK
OUT connector is connected, an HD-SDI signal input from
this connector is fed from the HD TRUNK OUT connector
of the camera control unit.
• The HD trunk function cannot be used with a Dual Link
format.
• By changing the installation method, the connector can
be returned to the conventional PROMPTER 2
connector. For details, consult a Sony service or sales
representative. Note that it does not function as an HD
TRUNK IN connector in that status.
• The HD-SDI signal fed to this connector must be in
frequency synchronization with the camera.
• Signal selection is not possible when the camera is used
in a COAXIAL connection system (page 25) or Dual-
Camera system (page 26), as the connector is used for
connection to a camera control unit or connection
between the primary camera and secondary camera.
1
1
SDI 1 SDI 2 TEST OUT
OUTPUT REMOTE CRANE TRACKER RET
CONTROL
DC OUT
12V 1.5A
DC IN
AUDIO IN 1
MIC
LINE
MICOFF
+48V
OFF
+48V
AUDIO IN 2
AES/EBU
LINE
PROMPTER 1 HD TRUNK IN

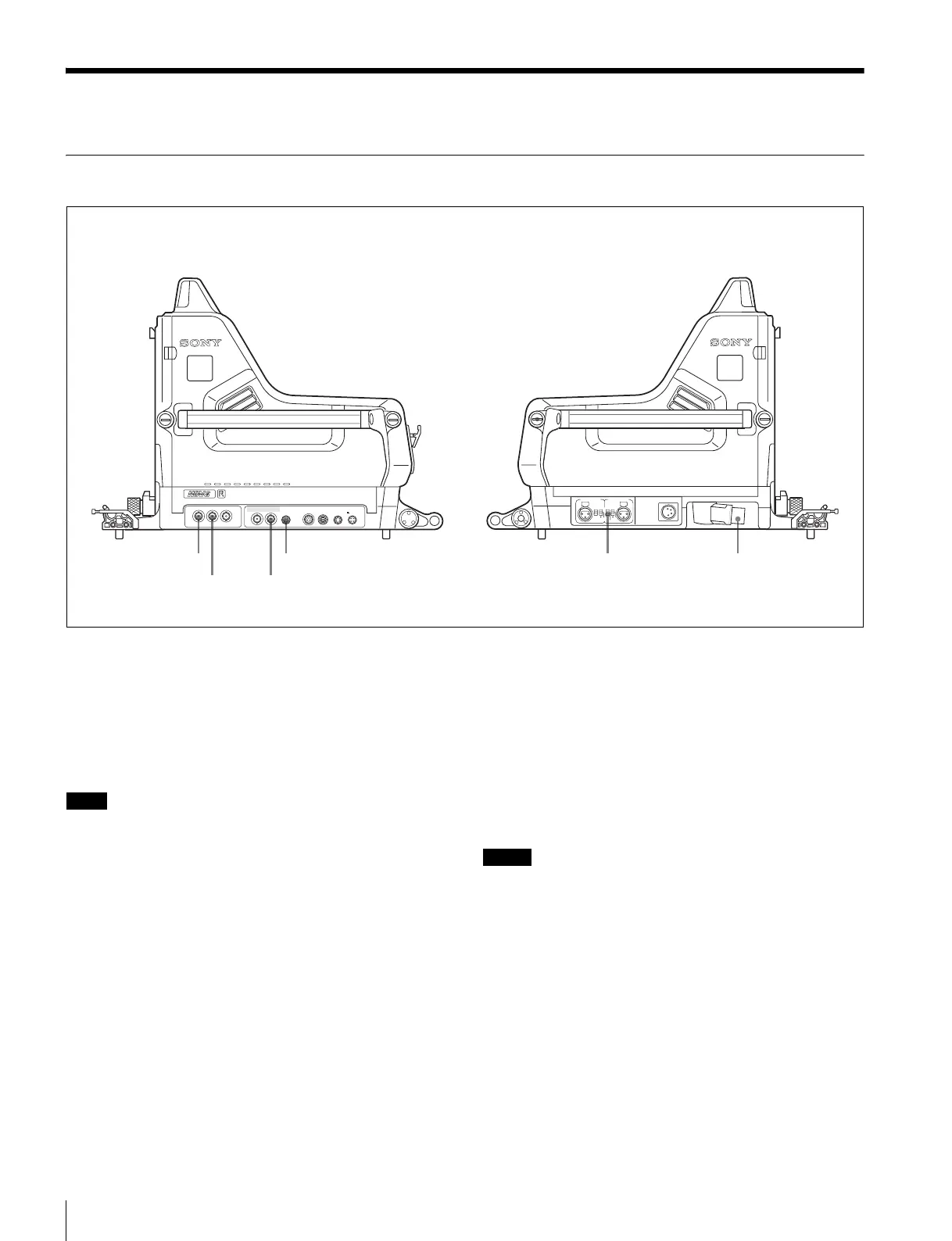

b SDI 2 connector
a SDI 1 connector
d REMOTE connector
e AUDIO IN 2 switch
f CCU connector
c HD TRUNK IN connector
The figure shows an HDC1000R.
