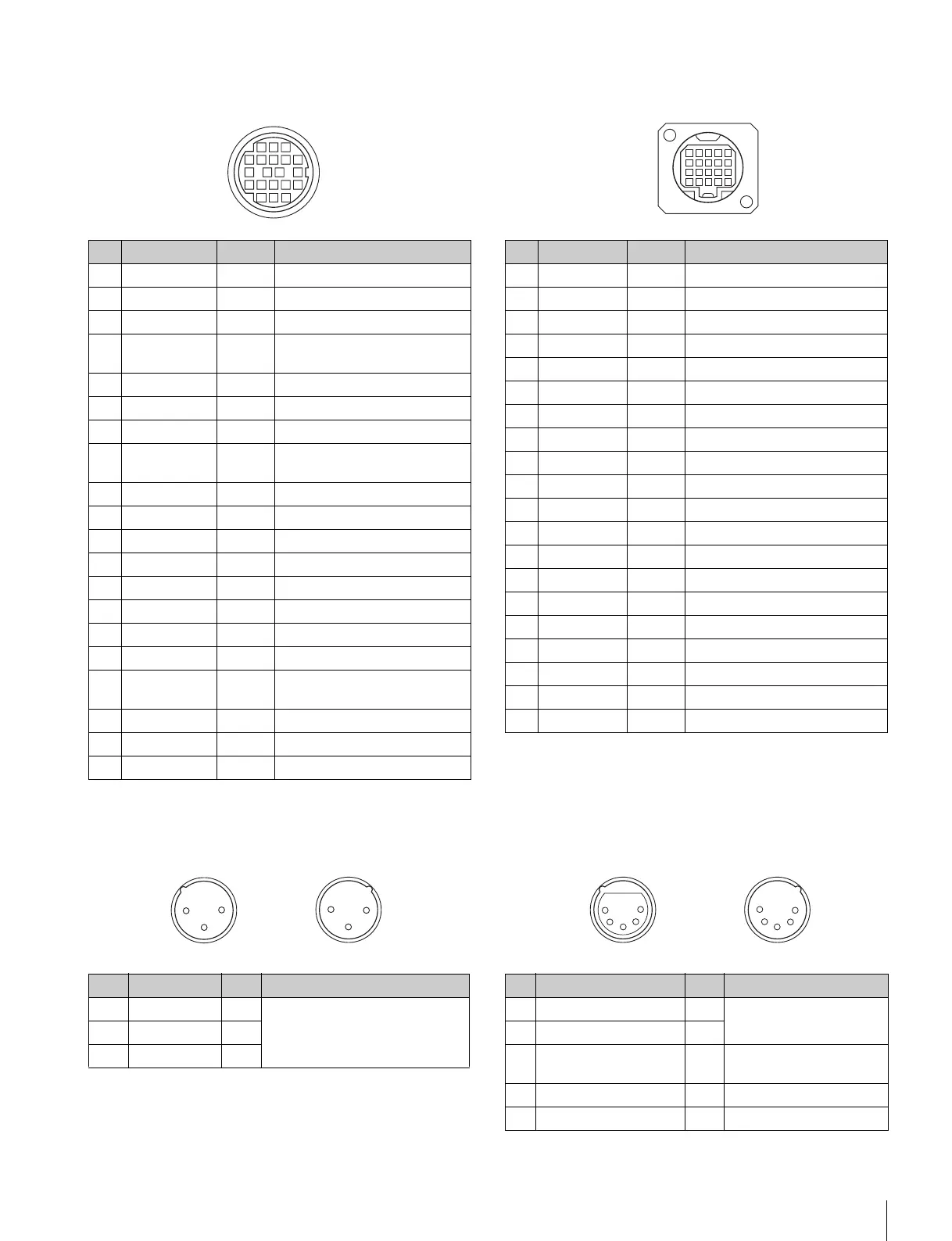

Specifications
VF connectors
CCD block adaptor
VF connector (20-pin, female)
MIC connectors
CCD block adaptor Cable adaptor
MIC connector MIC connector
(XLR 3-pin, female) (XLR 3-pin, male)
(0 dBu = 0.775 Vrms)
Cable adaptor
VF connector (20-pin, female)
INTERCOM connectors
CCD block adaptor Cable adaptor
INTERCOM connector INTERCOM connector
(XLR 5-pin, female) (XLR 5-pin, male)
(0 dBu = 0.775 Vrms)
No. Signal I/O Specifications
1 S DATA IN/OUT TTL level
2 NC No connection
3 NC No connection
4SCK OUTTTL level
MANU: 0 V or OPEN
5 NC No connection
6 NC No connection
7 NC No connection
8 G TALLY OUT ON: 5 V
OFF: GND
9 NC No connection
10 NC No connection
11 NC No connection
12 Y VIDEO OUT 1.0 Vp-p, Zo = 75 ohms
13 VIDEO GND — GND for VIDEO
14 Pb VIDEO OUT 700 mVp-p, Zo = 75 ohms
15 Pr VIDEO OUT 700 mVp-p, Zo = 75 ohms
16 NC No connection
17 R TALLY OUT ON: 5 V
OFF: GND
18 NC No connection
19 UNREG GND — GND for UNREG
20 UNREG OUT
No. Signal I/O Specifications
1 AUDIO (G) —
-60 dBu, -50 dBu, -40 dBu,
-30 dBu, -20 dBu, selectable
High impedance, balanced
2 AUDIO (X) IN
3 AUDIO (Y) IN
(
External View
)
123
181920
45678
1314151617
9101112
2
3
1
1
3
2
(External View)
(External View)
No. Signal I/O Specifications
1 NC No connection
2 NC No connection
3 NC No connection
4 NC No connection
5 NC No connection
6 NC No connection
7 NC No connection
8 NC No connection
9 NC No connection
10 NC No connection
11 NC No connection
12 Y VIDEO IN 1.0 Vp-p, Zi = 75 ohms
13 VIDEO GND — GND for VIDEO
14 Pb VIDEO IN 700 mVp-p, Zo = 75 ohms
15 Pr VIDEO IN 700 mVp-p, Zo = 75 ohms
16 NC No connection
17 NC No connection
18 NC No connection
19 NC No connection
20 NC No connection
No. Signal I/O Specifications
1 INTERCOM MIC (Y) IN
-20 dBu (CARBON MIC)
-60 dBu (DYNAMIC MIC)
2 INTERCOM MIC (X) IN
3 GND (INTERCOM
PGM)
—
4 INTERCOM RECEIVE OUT 0 dBu
5 PGM OUT 0 dBu
(External View)
12345
678910
11 12 13 14 15
16 17 18 19 20
5
3
2
4
1
1
3
4
2
5
(External View) (External View)
