28

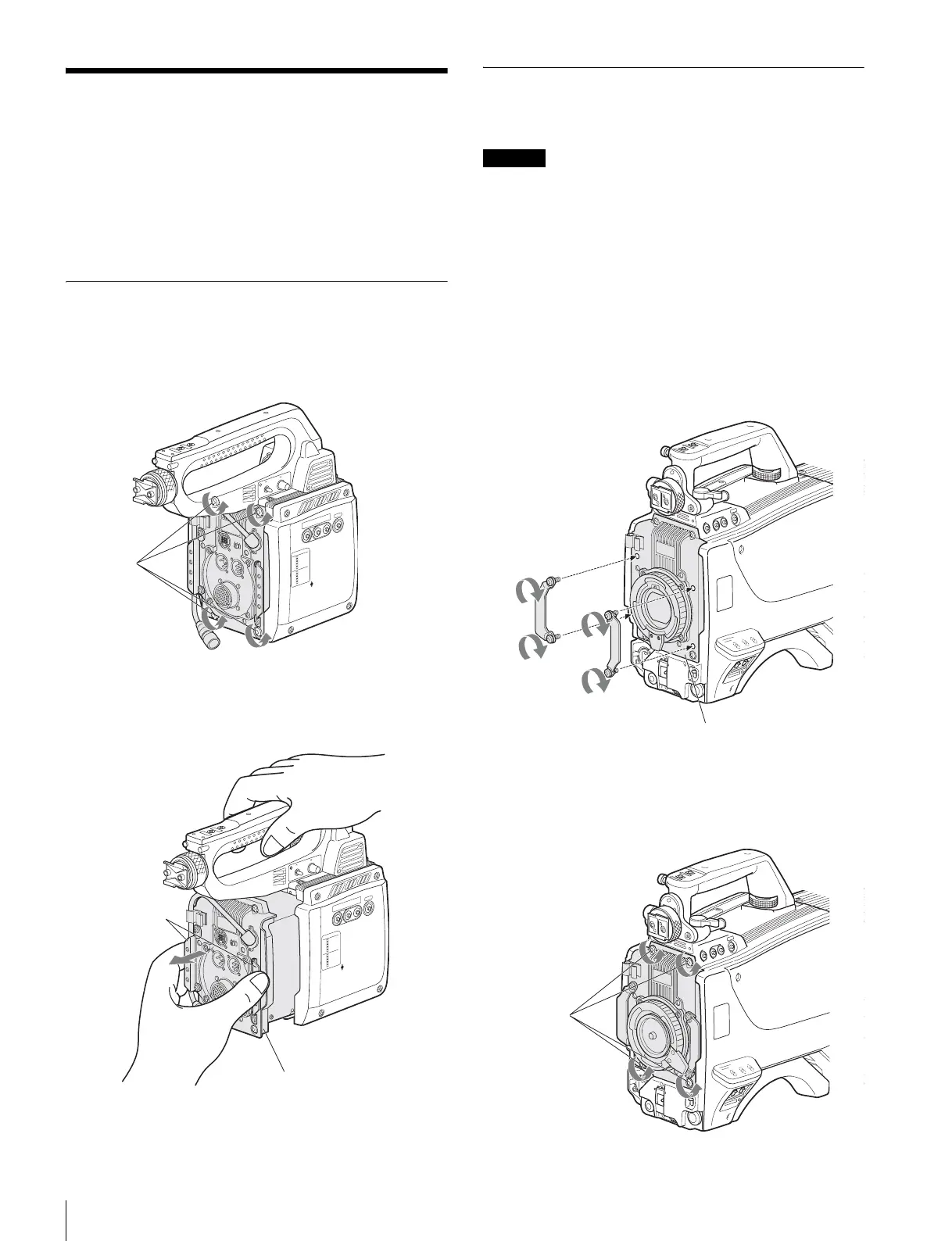

Assembly
Assembly
Mount the CCD block detached from the camera to the
CCD block adaptor then mount the cable adaptor of the
HKC-T1500/T3300 to the camera in its place.
Use a Phillips screwdriver.
Step 1: Removing the Cable Adaptor
from the CCD Block Adaptor
1
Loosen the four screws holding the cable adaptor.
2
Holding the handle of the CCD block adaptor with one
hand, grasp the cable adaptor by the hangers with the
other hand and pull it out horizontally.
Step 2: Removing the CCD Block
from the Camera
• Before removing the CCD block, set the POWER switch
of the camera to OFF.
• Do not touch any parts inside the CCD block adaptor and
the camera.
1
For an HDC1500-series camera, first remove the lens
mount cap from the camera and turn the lens fixing
lever to the bottom as shown below, then attach the
hangers (supplied with the HKC-T1500) to the CCD
block.
(The hangers have been attached to the HDC3300 at
the factory.)
2
Attach the lens mount cap to its original position.
3
Loosen the four screws holding the CCD block.
MIC
VF
INTERCOM
12.5
25
50m
OPT HEAD
CABLE
MIC
LEVEL
INTERCOM
ON
OFF
CLEAR
FILTER
FILTER
LOCAL
ND
CC
ND
1
1/4 ND
2
1/8 ND
3
1/16ND
4
1/64ND
5
CROSS
CC
A
3200KB
4300KC
6300K
D
8000KE
RET 1
INCOM
Screws
MIC
VF
INTERCOM
12.5
25
50m
OPT HEAD
CABLE
MIC
LEVEL
INTERCOM
ON
OFF
CLEAR
FILTER
FILTER
LOCAL
ND
CC
ND
1
1/4 ND
2
1/8 ND
3
1/16ND
4
1/64ND
5
CROSS
CC
A
3200KB
4300KC
6300K
D
8000K
E
RET 1
INCOM
Hangers
CCD block adaptor
Cable adaptor
(HKC-T1500 shown in the figure)
Caution
Hangers supplied with
the HKC-T1500
CCD block
HCD1500 series
Screws
(HKC-T1500 shown
in the figure)
