16
Note
The various parts of the lens used in adjusting the flange focal
length are in different positions on different lenses. Refer to
the operation manual for the particular lens.

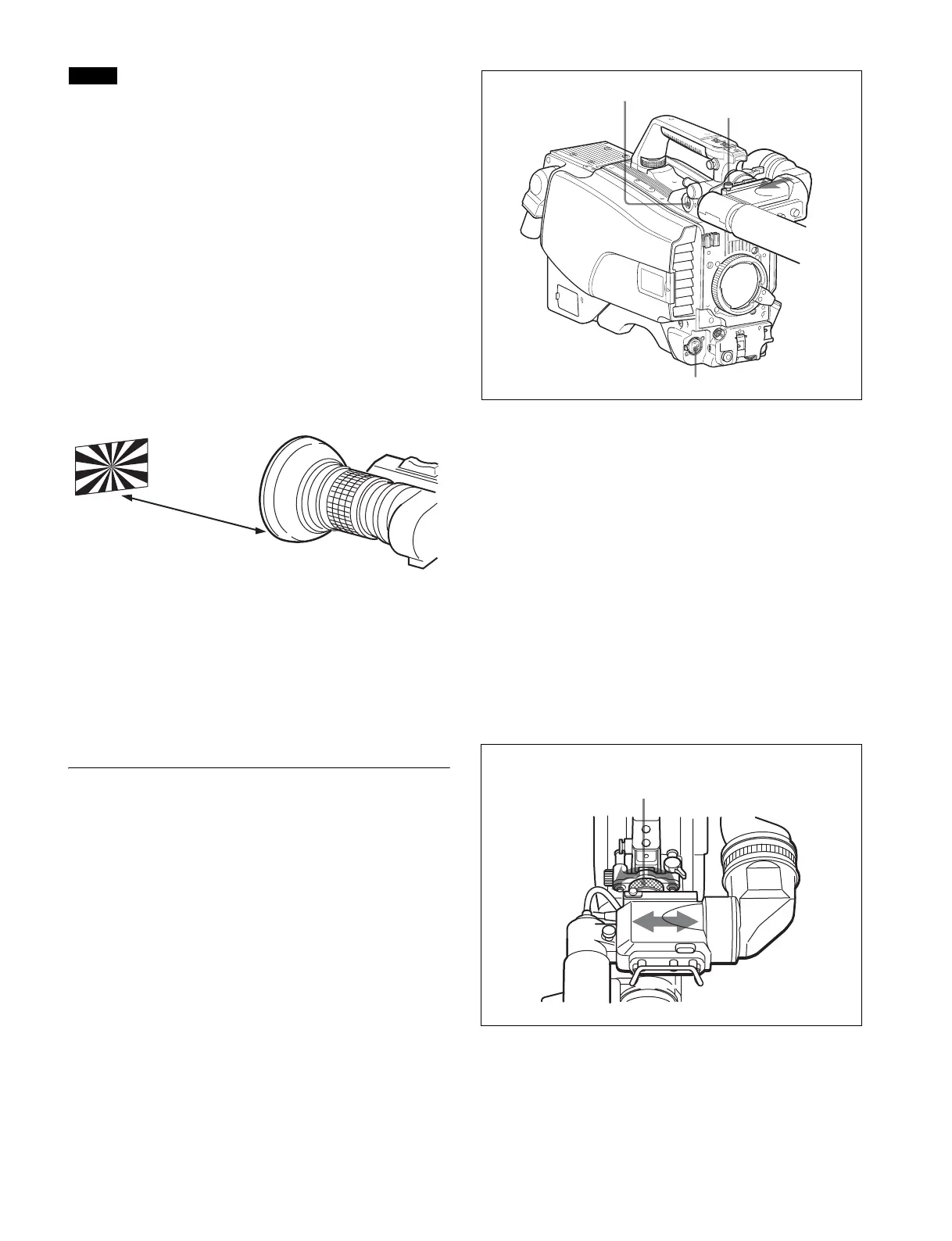

Adjustment procedure
1 Set the iris control to manual, and open the iris fully.
2 Place a flange focal length adjustment chart
approximately 3 meters from the camera and adjust
the lighting to get an appropriate video output level.
3 Loosen the Ff (flange focal length) ring lock screw.
4 With either manual or power zoom, set the zoom ring
to telephoto.
5 Aim at the flange focal length adjustment chart and
turn the focus ring to focus the image.
6 Set the zoom ring to wide angle.
7 Turn the Ff ring to bring the chart into focus. Take
care not to move the distance ring.
8 Repeat steps 4 through 7 until the image is in focus at
both telephoto and wide angle.
9 Tighten the Ff ring lock screw.
Attaching a Viewfinder
WARNING
When the viewfinder is attached, do not leave the camera with
the eyepiece facing the sun. Direct sunlight can enter through
the eyepiece, be focused in the viewfinder and cause fire.
Attaching a viewfinder
The instructions are made using the HDVF-20A/200
viewfinder as an example.
For details about the viewfinder, refer to the operation manual
of the viewfinder.
1 Slide the viewfinder in the direction of the arrow.
The viewfinder stopper automatically pops down.
2 Set the viewfinder left-right position, then tighten the
left-right positioning ring (see “To adjust the position
to the left or right” below).
3 Connect the viewfinder cable to the VF connector of
the camera.
4 Connect the microphone cable to the MIC 1 IN
connector of the camera.
Adjusting the viewfinder position
The viewfinder position may be adjusted towards the front and
rear and to the left and right to make it easy to see into it.
To adjust the position to the left or right
1 Loosen the viewfinder left-right positioning ring.
2 Slide the viewfinder left or right to move it into a good
viewing position.
About 3 meters (10 ft)
Viewfinder stopper
VF connector
MIC 1 IN connector
Viewfinder left-right
positioning ring
