13
CE and CN models (for PAL areas)

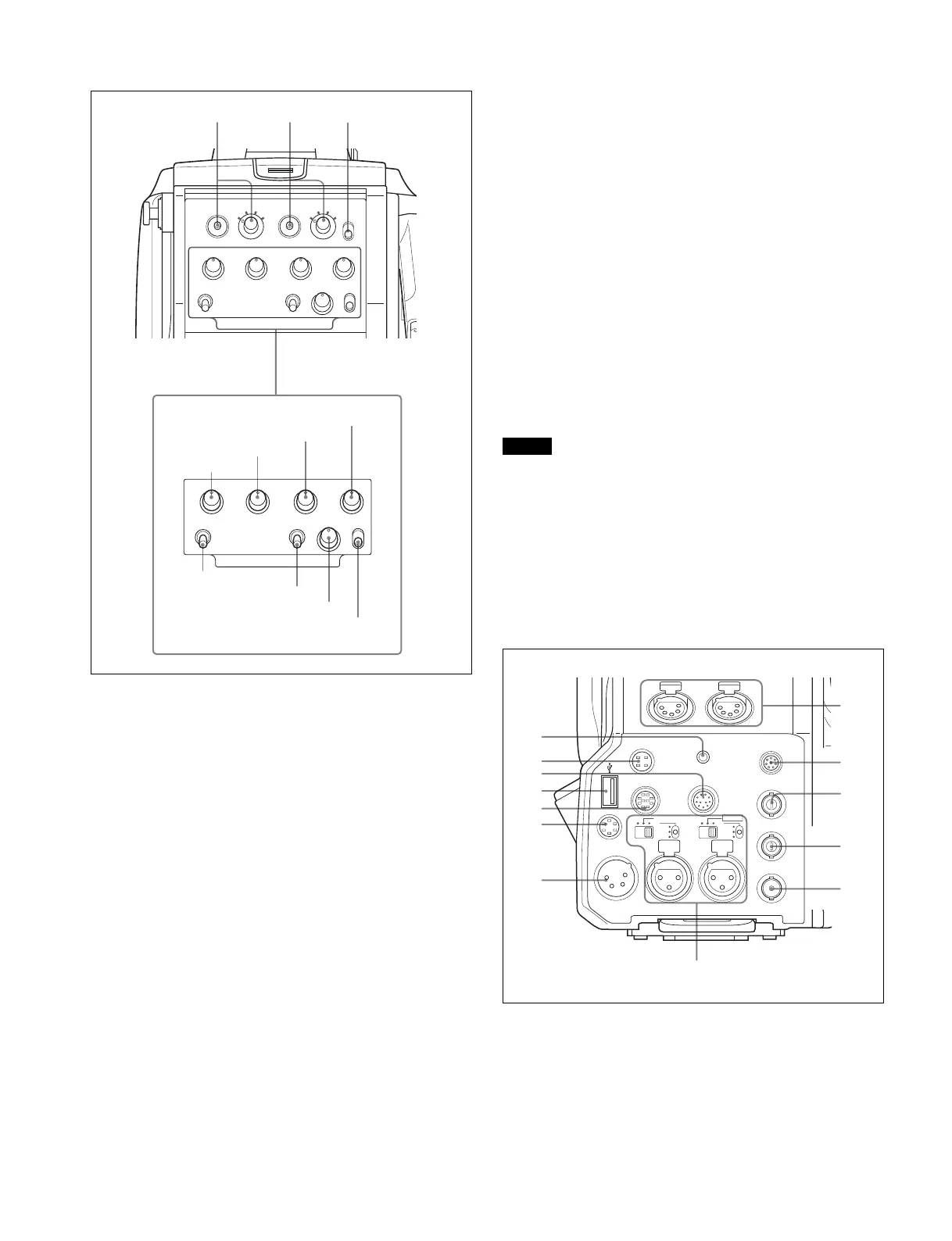

a INTERCOM1 and INTERCOM2 controls and switches
The reception level controls are common to intercom 1 and
intercom 2. The talk lines can be set independently for
intercom 1 and intercom 2.
ENG (engineer line) control:
Adjust the intercom audio listening level of the engineer line.
PROD (producer line) control
Adjust the intercom audio listening level of the producer line.
PGM1 (program 1) control
Adjust the audio listening level of program 1.
PGM2 (program 2) control
Adjust the audio listening level of program 2.
TRACKER control
Adjust the intercom audio listening level at the TRACKER
connector (page 14) on the connector panel when using the
connector for intercom.
MIC LINE1 (intercom microphone line 1) switch
Select the talk line for intercom 1.
PROD: To talk over the producer line
OFF: To turn off the headset microphone for intercom line 1
ENG: To talk over the engineer line
MIC LINE2 (intercom microphone line 2) switch
Select the talk line for intercom 2.
PROD: To talk over the producer line
OFF: To turn off the headset microphone for intercom line 2
ENG: To talk over the engineer line
LEVEL switch
REAR: The intercom audio listening level is adjusted with the
controls on this panel.
FRT: The intercom audio listening level is adjusted with the
INTERCOM LEVEL control (page 11) on the front of the
camera.
b RET 1 (return video 1) button and select switch
The return video signal selected with the switch is displayed
on the viewfinder screen while the button is pressed.
c RET 2 (return video 2) button and select switch
When other return video systems are used in addition to return
video 1, you can monitor the signal selected with the switch on
the viewfinder screen while pressing the button.
Note
The RET 1 button has priority over the RET 2 button if both
buttons are pressed.
If RET 1 and RET 2 buttons are pressed at the same time, the
two buttons function as the RET 3 button according to the
setting of the <RETURN> page in the OPERATION menu.
d LIGHT switch
Set to ON to illuminate the operation panel.
Connector panel
a EARPHONE jack (stereo minijack)
For connecting an earphone or headset to hear the intercom
audio.
b DC OUT (DC power supply output) connector (4-pin)
To supply power to devices such as a wireless receiver
(optional) (max. 0.5 A).
ENG PROD
INTERCOM 1
MIC
LINE1
PROD
OFF
ENG
MIC
LINE2
PROD
OFF
ENG
PGM1 PGM2
TRACKER
INTERCOM 2
LEVEL
REAR
FRT
ENG PROD
INTERCOM 1
MIC
LINE1
PROD
OFF
ENG
MIC
LINE2
PROD
OFF
ENG
PGM1 PGM2
TRACKER
INTERCOM 2
LEVEL
REAR
FRT
RET1
1
2 3
4
RET2
1
2 3
4
LIGHT
ON
OFF
PGM1 control
PGM2 control
TRACKER control
LEVEL switch
MIC LINE1 switch
ENG control
PROD control
MIC LINE2 switch
a
234
OFF
+48V
MIC
FRONT MIC
PROMPTER
/GEN
LOCK
RET CTRL
AUDIO IN
CH1 CH2
TEST
OUT
SDI
MONI
DC IN 10.5-17V
LINE
OFF
+48V
MIC
AES/EBU
LINE
EARPHONE
REMOTE
DC OUT
CRANETRACKER
b
c
d
e
f
g
h
i
j
k
a
l
m
