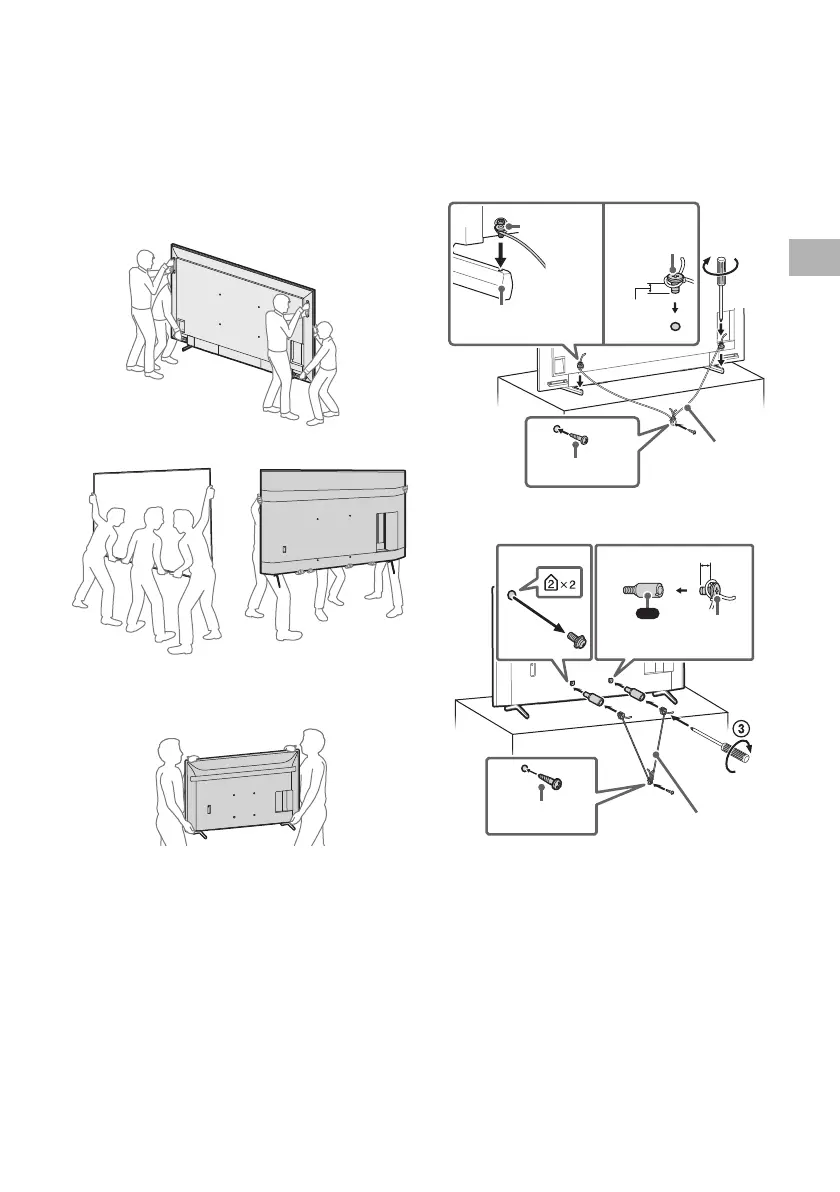

Transporting
• Before transporting the LCD Monitor, disconnect all cables.
• Two or more persons (three or more persons for 214.8 cm
(85 inches), four or more persons for 247.7 cm (98 inches) and
above LCD Monitor) are needed to transport a large LCD
Monitor.
• When transporting the LCD Monitor by hand, hold it as shown
below. Do not put stress on the LCD panel and the frame around
the screen.
• When lifting or moving the LCD Monitor, hold it firmly from the
bottom.
FW-98BZ53L / 98BZ50L / 98BZ30L
FW-85BZ40L / 85BZ30L
FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L /
65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L /
43BZ30L
• When transporting the LCD Monitor, do not subject it to jolts or
excessive vibration.
• When transporting the LCD Monitor for repairs or when moving,
pack it using the original carton and packing material.
• When handling or mounting the LCD Monitor set, do not lay
down the LCD Monitor (for applicable LCD Monitor model only).
Topple prevention
(Models with supplied support belt kit)
Refer to the Setup Guide on top of the cushion.
The supplied wood screw is only for affixing to a solid object
made of wood.
(Except models with supplied support belt kit)
FW-98BZ53L / 98BZ50L / 98BZ30L
FW-85BZ40L / 85BZ30L / 75BZ40L / 75BZ35L / 75BZ30L /
65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /
55BZ30L / 50BZ30L / 43BZ30L
3
2
1
1.5 N·m
{15 kgf·cm}
Screw (not supplied)
Screw hole on the LCD
Monitor’s Table-Top Stand
6 - 12 (mm)
M6 screw (not
supplied)
Cord (not
supplied)
M6 screw
(not supplied)
12
4
VS
1.5 N·m
{15 kgf·cm}
M6 screw
(not supplied)
Cord (not supplied)
Screw (not supplied)
10 - 12 (mm)
(supplied)
