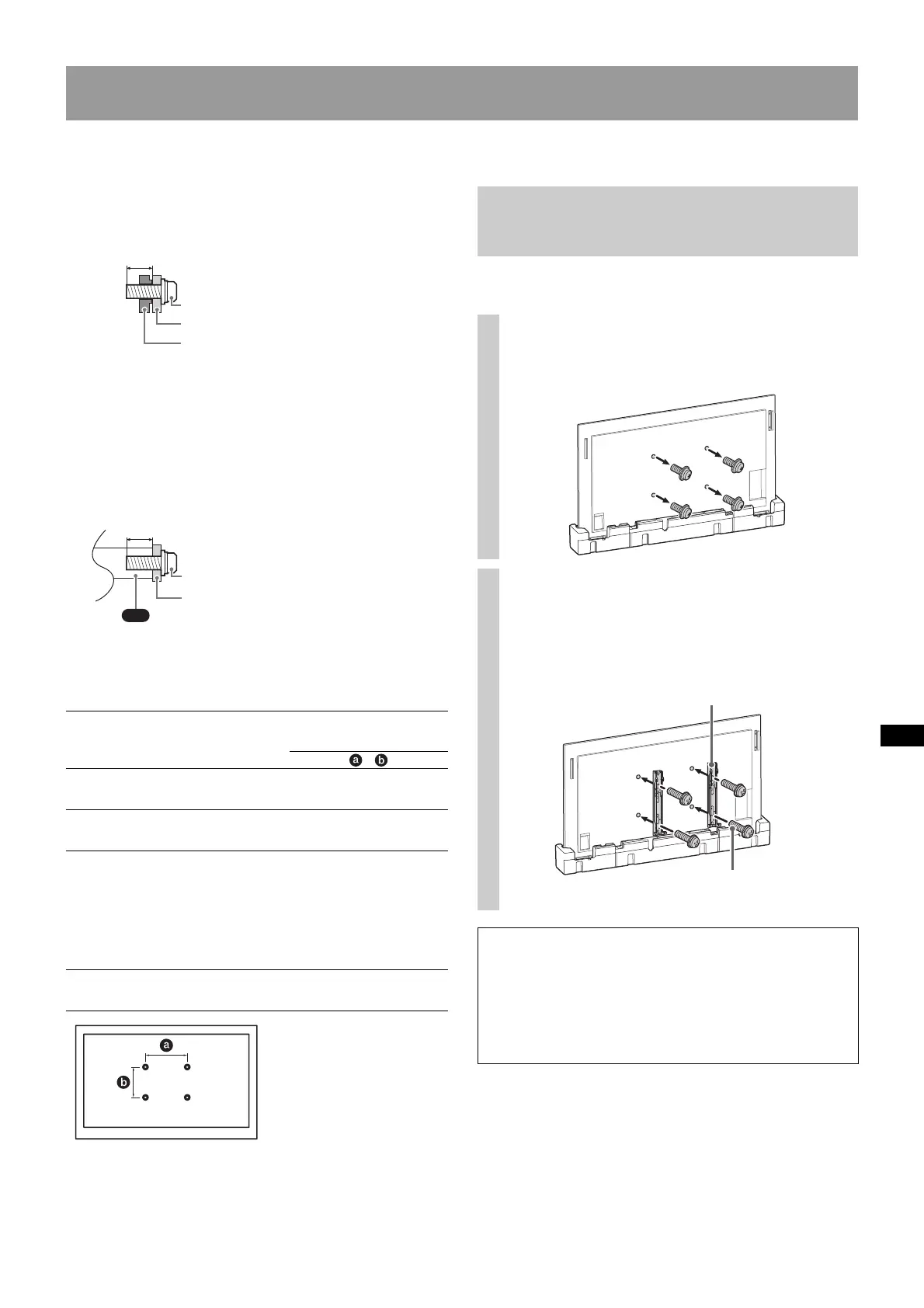

Landscape Style
The length of the screw for Wall-Mount Bracket
differs depending on the Wall-Mount Bracket
thickness. Please refer to below illustration.
FW-98BZ53L / FW-98BZ50L / FW-98BZ30L
11 – 20 (mm)
Screw (M8)
Wall-Mount Bracket
LCD Display’s rear cover
FW-85BZ40L / FW-85BZ35L / FW-85BZ30L /
FW-85EZ20L / FW-75BZ40L / FW-75BZ35L /
FW-75BZ30L / FW-75EZ20L / FW-65BZ40L /
FW-65BZ35L / FW-65BZ30L / FW-65EZ20L /
FW-55BZ40L / FW-55BZ35L / FW-55BZ30L /
FW-55EZ20L / FW-50BZ30L / FW-50EZ20L /
FW-43BZ30L / FW-43EZ20L
VS
10 – 12 (mm)
Screw (M6)
Wall-Mount Bracket
Refer to the following table for wall-mount hole
pattern.
Model Name Wall-mount hole
pattern
×
FW-98BZ53L / FW-98BZ50L /
FW-98BZ30L
600 × 400 mm
FW-85BZ40L / FW-85BZ35L /
FW-85BZ30L / FW-85EZ20L
400 × 400 mm
FW-75BZ40L / FW-75BZ35L /
FW-75BZ30L / FW-75EZ20L /
FW-65BZ40L / FW-65BZ35L /
FW-65BZ30L / FW-65EZ20L /
300 × 300 mm
FW-55BZ40L / FW-55BZ35L /
FW-55BZ30L / FW-55EZ20L
FW-50BZ30L / FW-50EZ20L /
FW-43BZ30L / FW-43EZ20L
200 × 200 mm
FW-98BZ53L / FW-98BZ50L / FW-98BZ30L
Installing the LCD Display to the
Wall from Carton*
1
*1
Only for limited region/country/model.
1
Remove the screws from the
rear of the LCD Display.
2
Attach the Wall-Mount Bracket
(not supplied) using the screws
(not supplied).
Wall-Mount Bracket
(not supplied)
Screw (not supplied)
When using an electric screwdriver, set the torque
setting to approximately 1.5 N·m {15 kgf·cm}.
Do not lift the Wall-Mount Bracket (not supplied)
before the screws (two screws each for left/right)
are secured. This may distort the Wall-Mount
Bracket or the LCD Display cabinet.
Be sure to store the unused screws and Table-Top
Stand in a safe place until you are ready to attach the
Table-Top Stand. Keep the screws away from small
children.
5 (EN)
