Installing the LCD Display to
the Wall
Using the optional Wall-Mount Bracket
(SU-WL855 only)* (not supplied)
To Customers:
For product protection and safety reasons,
Sony strongly recommends that installation
of your LCD Display be performed by Sony
dealers or licensed contractors. Do not
attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the
installation, periodic maintenance and
examination of this product.
Wall-Mount Bracket Installation
Information
For instructions on Wall-Mount Bracket
installation, see the Installation Information
(Wall-Mount Bracket) on the Sony Customer
Support website for your LCD Display
model at the following address.
https://www.sony.com/am/support
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this LCD Display, especially to
determine the strength of the wall for
withstanding the LCD Display’s weight.
• Sony is not liable for any damage or injury
caused by mishandling or improper
installation.

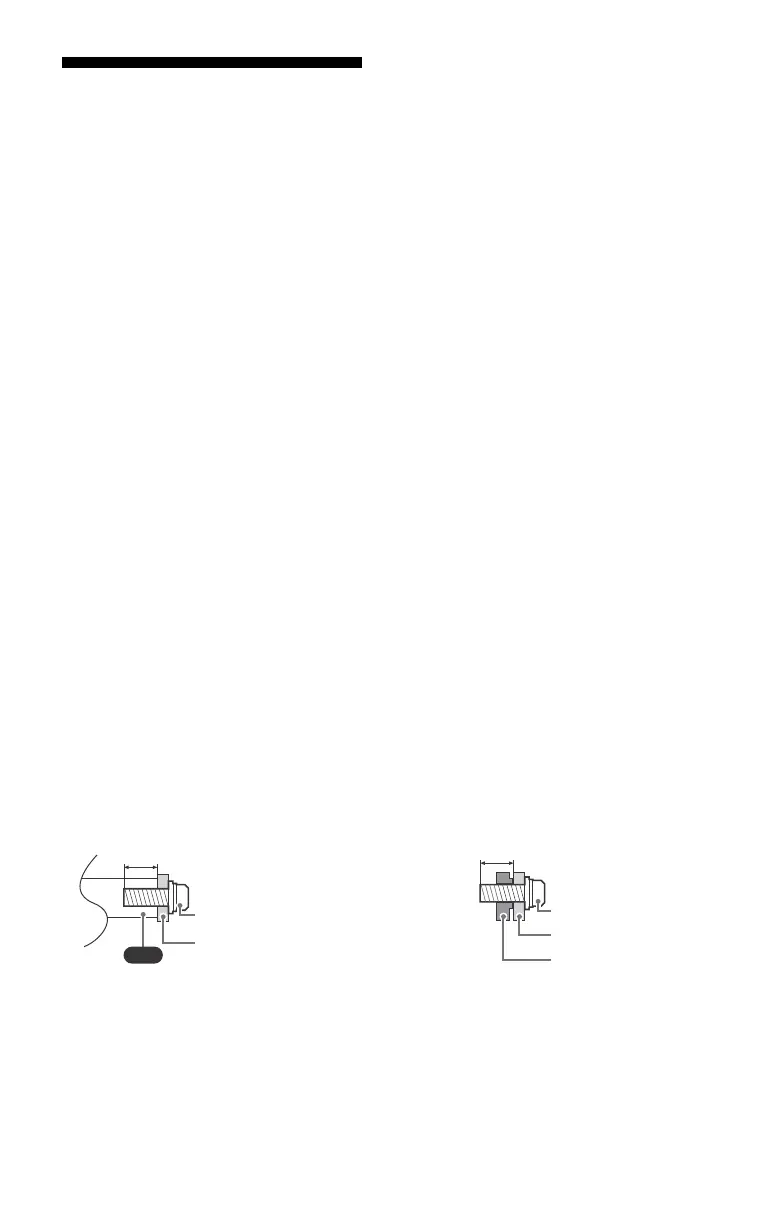

• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
10 – 12 (mm)
VS
Screw (M6)
Wall-Mount Bracket
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand
(models with Table-Top Stand only). Keep
the screws away from small children.
Note
• Read the supplied safety documentation for
additional safety information.
* Only for limited region/country/model.
Using the optional Wall-Mount Bracket
(except SU-WL855) (not supplied)
This LCD Display’s instruction manual only
provides the steps to prepare the LCD
Display for Wall-Mount installation before it
is installed on the wall.
Your LCD Display can be mounted to a wall
using a suitable Wall-Mount Bracket (not
supplied). If the Table-Top Stand is attached
to the LCD Display, the LCD Display may
require detaching the Table-Top Stand
(models with Table-Top Stand only).
Prepare the LCD Display for the Wall-Mount
Bracket before making cable connections.
For product protection and safety
reasons, Sony strongly recommends that
installation of your LCD Display on the
wall be performed by qualified
professionals. Do not attempt to install it
yourself.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this LCD Display, especially to
determine the strength of the wall for
withstanding the LCD Display’s weight.
• The screws for installing the Wall-Mount
Bracket to the LCD Display are not
supplied.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
FW-98BZ53L / 98BZ50L / 98BZ30L
11 – 20 (mm)
Screw (M8)
Wall-Mount Bracket
LCD Display’s rear cover
16
EN
