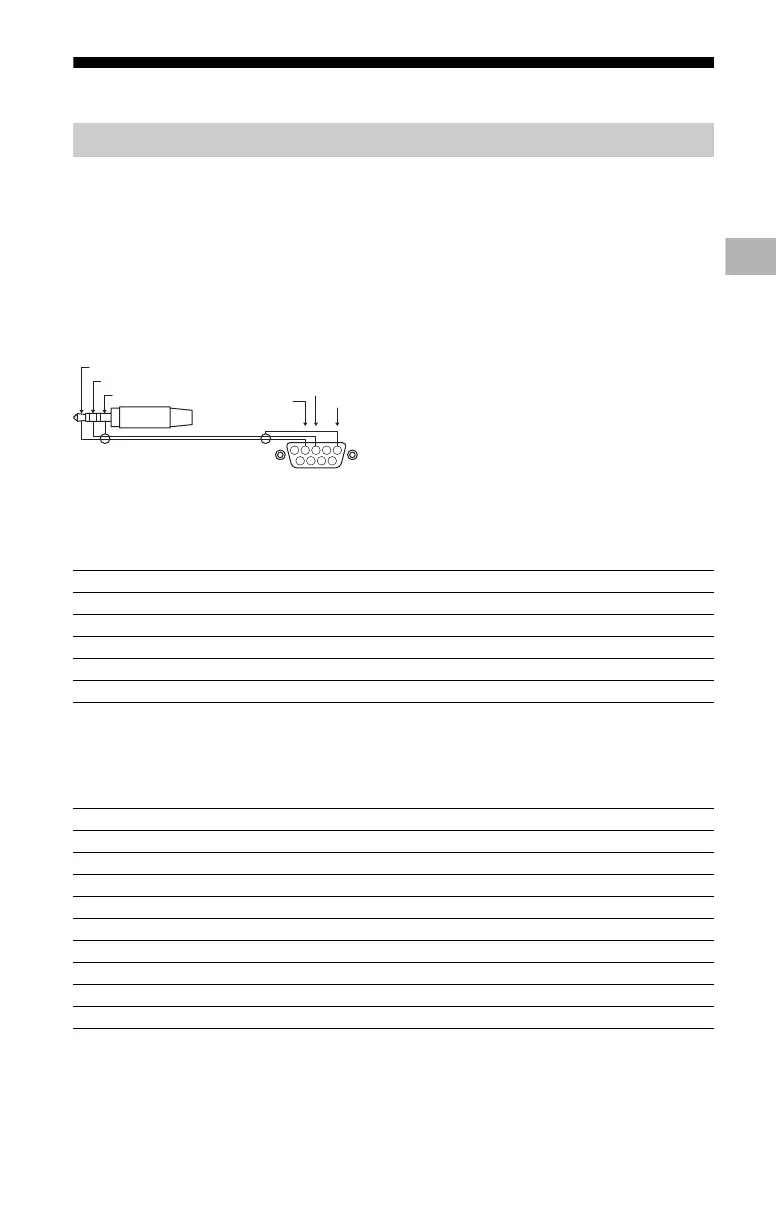

Control functions
RS-232C
You can control the LCD Display from an external service via RS-232C. The RS-232C connection
is briefly explained in this page.
Interface
EN
Establish the RS-232C connection to the LCD Display by using a 3.5 mm stereo mini plug
(supplied).
3.5 mm Stereo mini plug
TIP: LCD Display
t
Controller
RING: Controller
t
LCD Display
Connection settings
When establishing the RS-232C connection, make connection settings as below.
1 2 3 4
6 7 8 9
5
GND
TXD
RXD
TIP
RING
SLEEVE
Baud rate 9600 bps
Data 8 bit
Parity None
Start bit 1 bit
Stop bit 1 bit
Flow control None
Data format
We introduce the data format for the RS-232C communication below.
(a) Requests from the controller to the LCD Display
No. Item Value
Header 0x8C : Control
2
3
Category
Function
0x00
0xXX
(fixed)
4 Length 0xXX (=Data X+1 byte)
5 Data 1 0xXX
: : 0xXX
: : 0xXX
X+4 Data X 0xXX
X+5 Check Sum 0xXX
13
