4
OUTPUT2 connector (4-pin)
Outputs balanced audio signal.
When attached to the DWR-S03D, it outputs the TUNER2
au
dio.
S
lot interface connector
When attached to the DWR-S03D, the power, audio signals,
a
nd control signals are passed between the devices.
Wireless receiver slot
Attach to the optional DWR-S03D.
For details on how to attach, see “Attaching the Receiver”
(page 4).
Bottom
Connection screw holes
Two units can be attached together using four M2 screws
(recommended thread depth of 3 mm) and mounting parts.
U
se these screw holes to attach the units.
W
ireless receiver attachment M2 screws
Use to secure the attached wireless receiver to the unit.
Attachment and
Connection

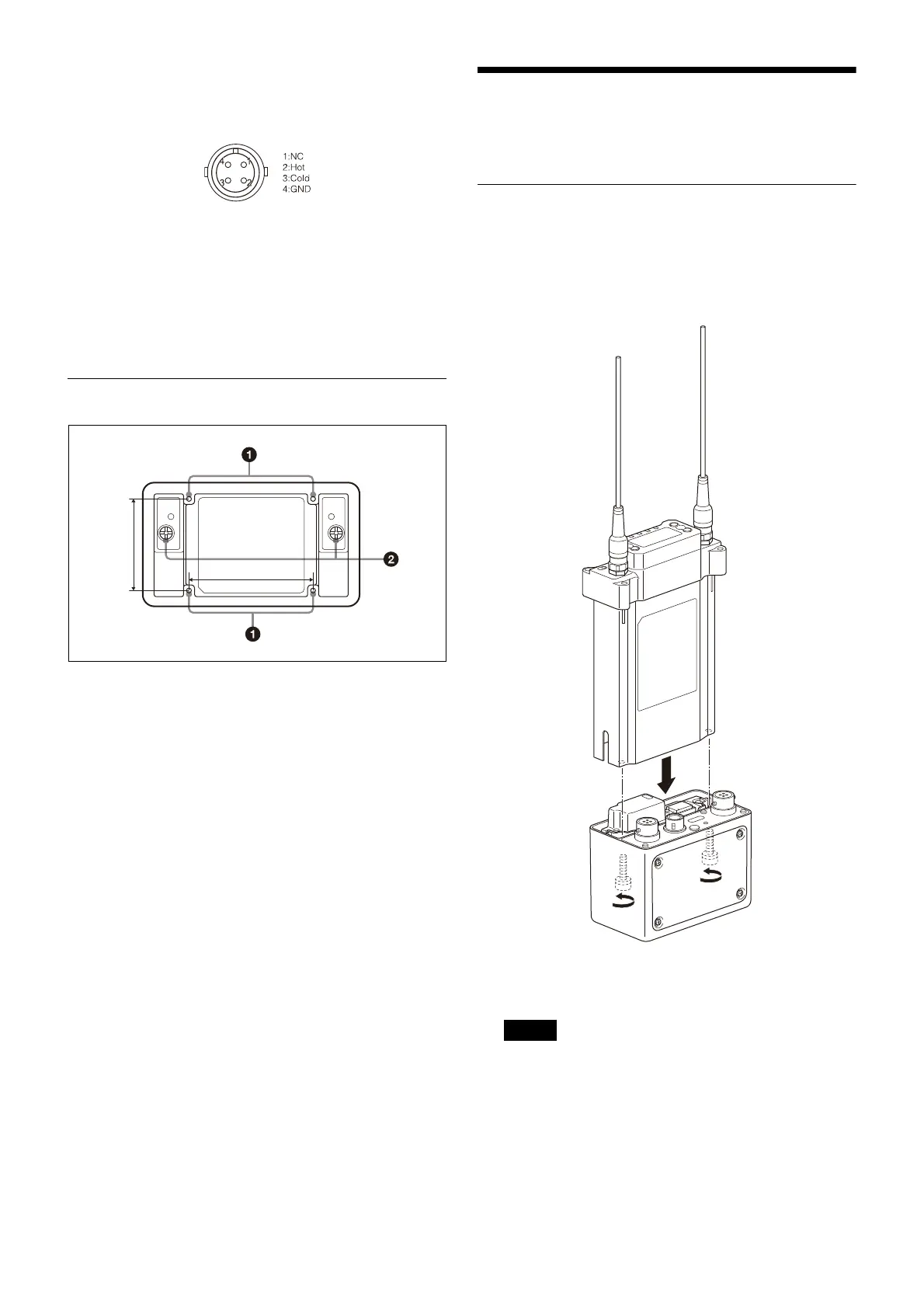

Attaching the Receiver
Insert the DWR-S03D into the wireless receiver slot of the
unit.
1
Attach the unit and DWR-S03D as shown in the
following diagram.
2 Fasten the two M2 mounting screws of the wireless
receiver using a screwdriver.
Use a Phillips #1 screwdriver.
• Check that the two screws are tightened securely
(
recommended tightening torque: 0.25 N·m). If the
s
crews are loose, any vibration or impact may cause
a malfunction.
• After attaching the unit and DWR-S03D, refrain from
a
ttaching/detaching them except in the event of a
malfunction or maintenance, as they are not
intended to be attached and detached frequently.
31.4 (1
1
/
4
)
42.6 (1
11
/
16
)
Notes
