Attaching to the Camera
33
Adjusting the flange focal length
The unit is shipped with the flange focal
length already adjusted. If you need to
adjust the flange focal length, remove the
lens mount, and change the shims with
those of the appropriate thickness. You
can adjust the thickness by ±0.1 mm in
0.01 mm increments.
Shims
The following shims are supplied with the
uni
t.
0.05 mm × 1 (circular)
0.01 mm × 15 (1/3 arc)
1/3 arc shims should always be used as a
s
et of three shims. Insert shims to increase
the flange focal length. The unit is shipped
with the flange focal length already
adjusted using the following three types of
shims.
0.10 mm (circular)
0.05 mm (circular)
0.01 mm (1/3 arc)
A seal is attached showing the shim
th
ickness when shipped.

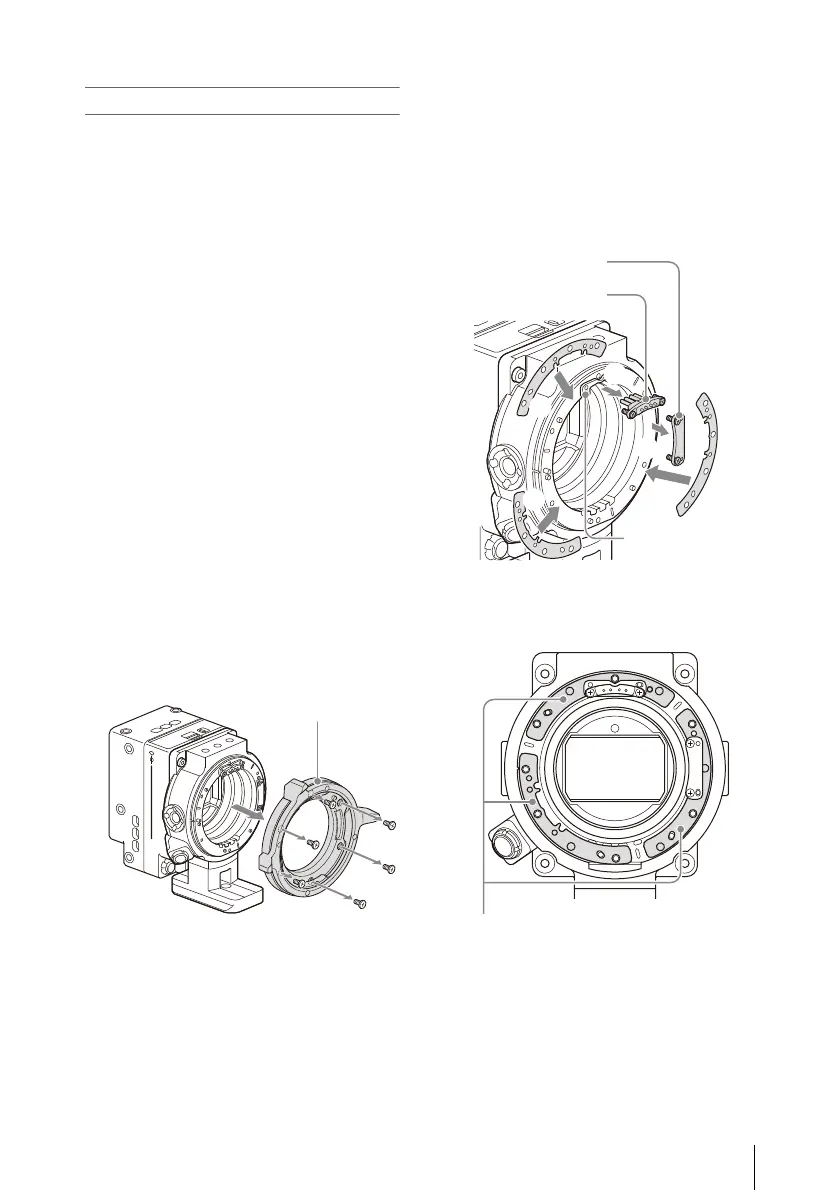

Adjusting the flange focal length
1 Remove the six Torx screws and
remove the PL-mount flange.
2 Loosen the four Phillips screws
securing the PL connectors and
plate, and remove the PL
connectors, PL connector block,
and plate.
3 Attach shims to the PL-mount
adaptor (three locations).
When using 1/3 arc shims
Attach shims so that they have the
sa
me thickness in all three locations.
PL-mount
flange
ʕ
ʕ
ʕ
ʔ
ʔ
Plate
PL connector
block
PL connectors
Shims
