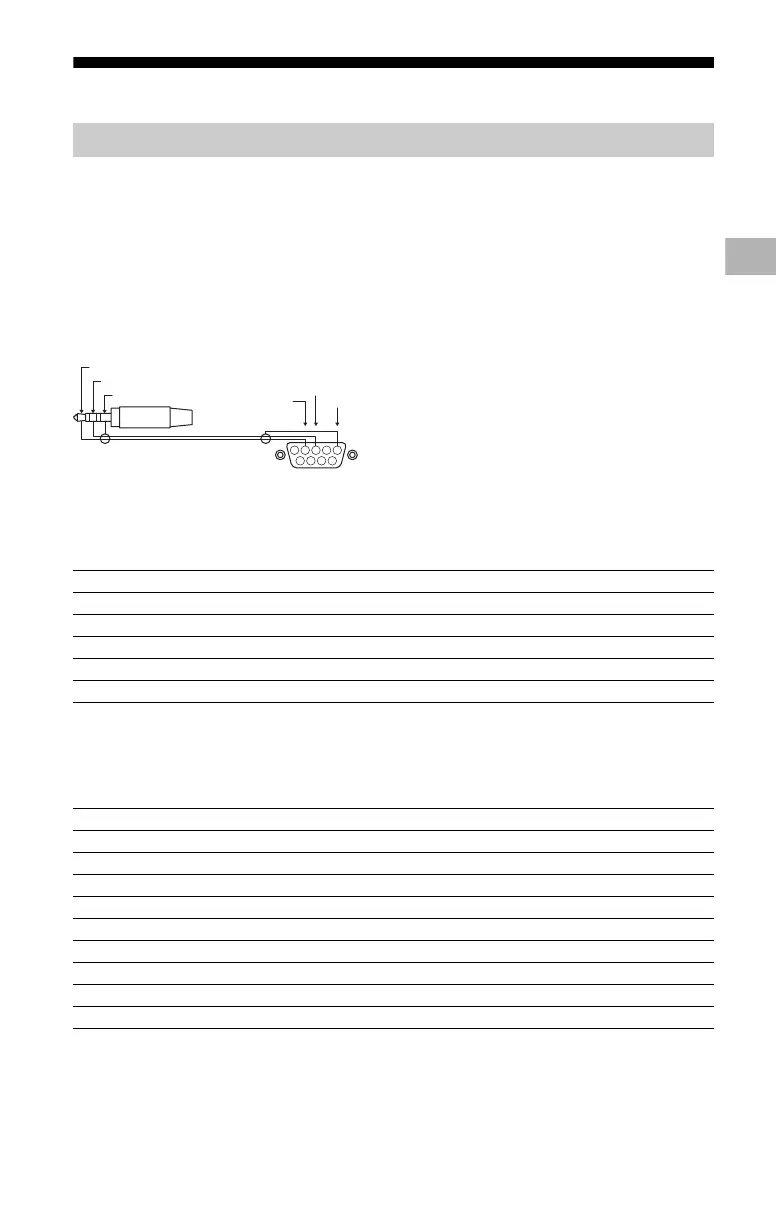

Control functions
You can control the LCD Display from an external service via RS-232C. The RS-232C connection
is briefly explained in this page.
Establish the RS-232C connection to the LCD Display by using a 3.5 mm stereo mini plug
(supplied).
3.5 mm Stereo mini plug
When establishing the RS-232C connection, make connection settings as below.
We introduce the data format for the RS-232C communication below.
(a) Requests from the controller to the LCD Display
RS-232C
Interface
Connection settings
Baud rate 9600 bps
Data 8 bit
Parity None
Start bit 1 bit
Stop bit 1 bit
Flow control None
1 2 3 4
6 7 8 9
5
GND
TXD
RXD
TIP: LCD Display
t
Controller
RING: Controller
t
LCD Display
TIP
RING
SLEEVE
Data format
No. Item Value
1Header 0x8C: Control
2Category 0x00 (fixed)
3Function 0xXX
4 Length 0xXX (=Data X+1 byte)
5Data 1 0xXX
:: 0xXX
:: 0xXX
X+4 Data X 0xXX
X+5 Check Sum 0xXX
