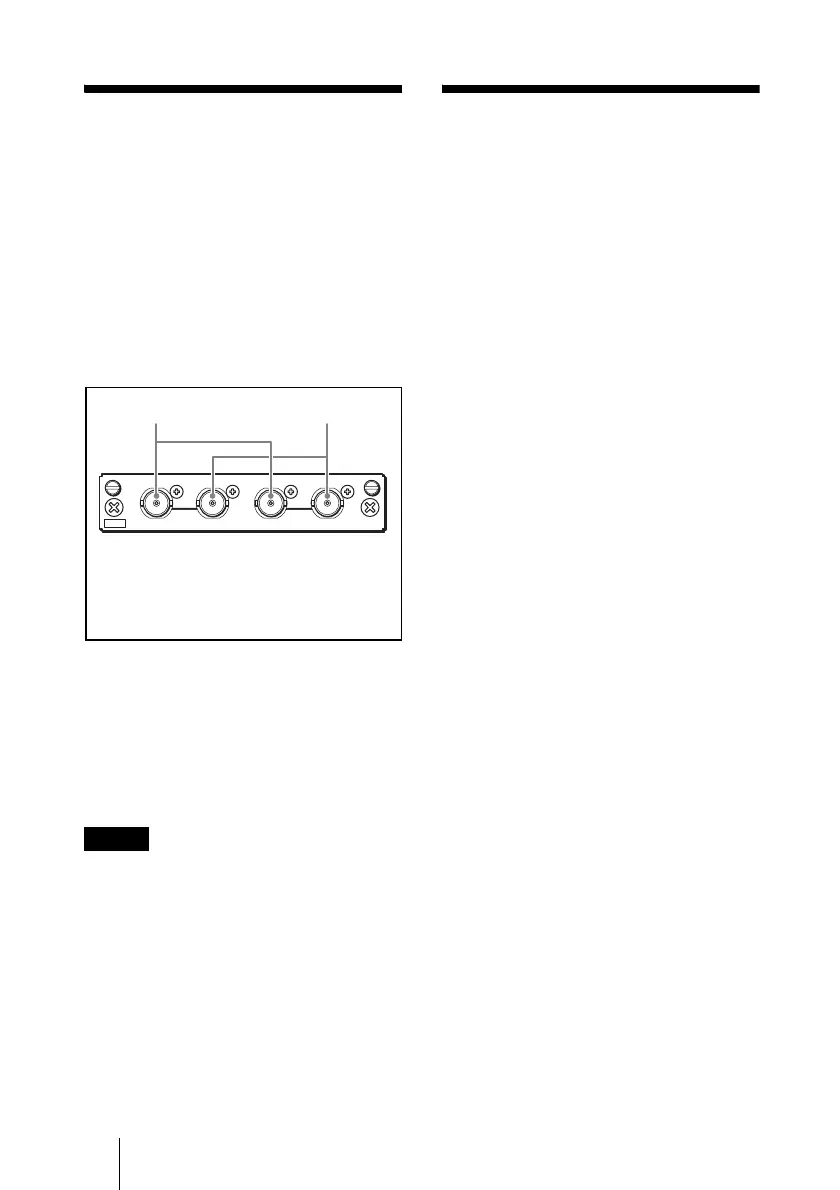

GB
4 Using the Input and Output Connectors / Specifications
Using the Input and
Output Connectors
For information about installing this unit in an
input option slot, refer to the instructions for use
for the monitor.
Configuration of input/output
connectors and signals that may be
input
The configuration of the input and output
connectors, and the signals that may be input
are shown below.
Input of serial digital component
signals
You can input serial digital signals to
connectors 1 and output signals displayed on
the screen of the main unit or the monitor from
connector 2.
You need not attach the 75Ω termination to
connector 2.
• The OUT connector (monitor out) outputs
signal only when the power of the main unit
is ON. The monitor out signal is not output
when the monitor is in standby mode.
• The signal from the OUT connector does not
comply with ON-LINE output signal
specifications.
Specifications
General
Voltage +3.3 V, +5 V (supplied from the
main unit)
Power consumption
Approx. 4 W
Operating conditions
Temperature
0 °C to 35 °C (32 °F to 95 °F)
Optimum temperature
20 °C to 30 °C (68 °F to 86 °F)
Humidity
0% to 90% (no condensation
allowed)
Pressure
700 hPa to 1060 hPa
Storage and transport conditions
Temperature
–20°C to +60°C (–4°F to
+140 °F)
Humidity
0% to 90% (no condensation
allowed)
Pressure
700 hPa to 1060 hPa
Maximum external dimensions (w/h/d)
100 × 20 × 162 mm
(4 ×
13
/16 × 6
1
/2 inches)
Mass Approx. 270 g (9.5 oz)
Input/Output connectors
Digital input
BNC (2), with monitor output
connector
Available signal format
Refer to the instructions for use of the monitor.
Signal characteristics
Digital component signals
Sampling frequency
3G-SDI: Y/Cb/Cr (4:2:2)
148.5 MHz/74.25 MHz/
74.25 MHz
Y/Cb/Cr (4:4:4)
148.5 MHz/148.5 MHz/
148.5 MHz
G/B/R 148.5 MHz/
148.5 MHz/148.5 MHz
HD-SDI: Y/Cb/Cr
74.25 MHz/37.125 MHz/
37.125 MHz
Notes
250TG
3G SDI
OUTOUT ININ
1
2
1
2
1 Input serial digital component signals.
2 Output serial digital component monitor
signals.
