5
Installation
Installation

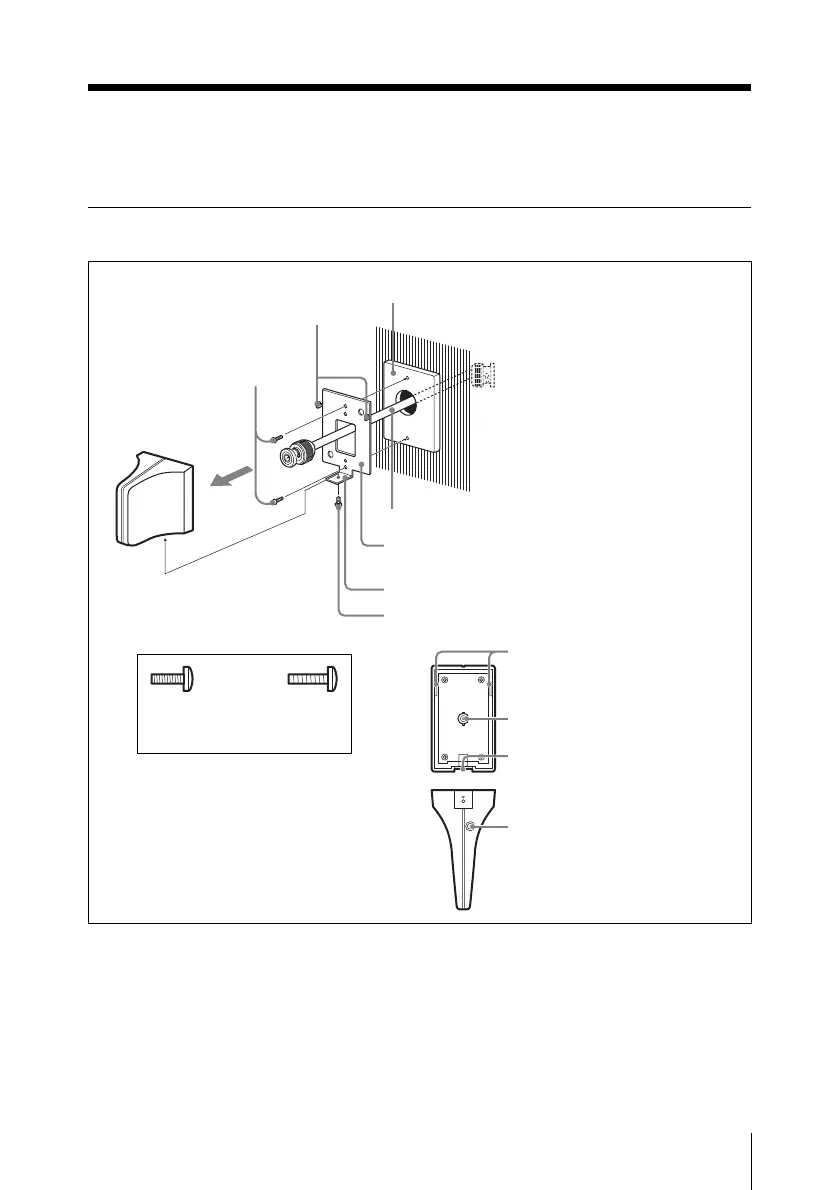

Wall installation using built-in outlet box
1) For details, refer to the Operating Instructions for the corresponding device.
2) Use a 50-ohm cable (at least RG-212/U).
M3 screw
No.6-32UNC
screw
Plate covering the outlet box
Hangers
NO.6-32UNC
screws (supplied)
to the BNC
connector
Coaxial cable
2)
Attachment A
(supplied)
Antenna seat
M3 screw (supplied)
Connect to the ANTENNA A/B
IN (DC OUT) connector on
either of the following devices:
• Wireless microphone tuner
1)
• Tuner base unit
1)
• Antenna divider
1)
• Powered mixer
1)
Fit these slots over the
hangers of attachment A.
BNC connector
Place this groove over the
antenna seat of attachment A.
LED (Lights when DC power is
supplied by the connected
device. Lights green when the
gain is 10 dB and lights red when
the gain is 18 dB.)
