Instructions D'Installation
Multiple U.S. and foreign patents pending.

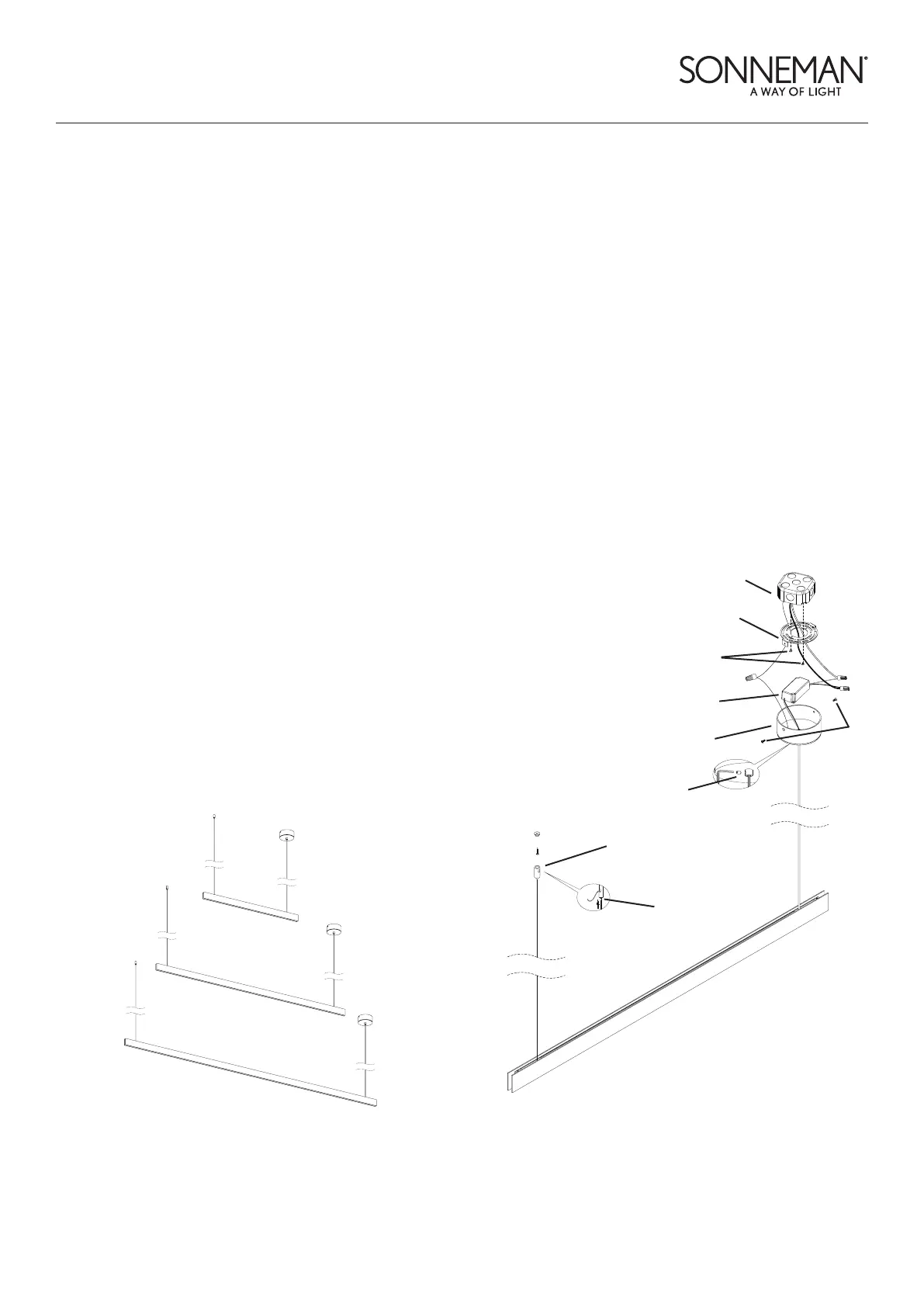

Assembly Instructions
Adjust the steel cable to the desired height: To
shorten the cable, push the cable up and it will lock
automatically. To lengthen the cable, lift up on the
cable and push up on the plunger lock (H). While
keeping the plunger lock depressed, lower the
cable to the desired length. Release the plunger
lock to set.
6. Fit the canopy (G) over the mounting plate (B), tucking
the power supply, power cord, and any loose wires
inside. Use the two canopy screws (I) to fasten the
canopy to the mounting plate.
7. If necessary, make any nal adjustments to the
hanging length of the power cord and/or steel cable.
Once the position is nal, trim the steel cable where it
exits the cable hanger.
8. Restore power to the outlet box.
1. Shut o power to the outlet box (A).
2. Attach the mounting plate (B) to the outlet box (A)
with the outlet box screws (C).
3. Determine the location of the cable hanger (D) based
on the desired orientation of the xture and the
distance between the hanging points. Attach the
cable hanger base to the ceiling using appropriate
hardware. Screw the main body of the cable hanger
onto the base.
4. Make appropriate electrical connections to the power
supply (E) using wire nuts:
a. Connect the power supply’s live wire to the live
supply wire.
b. Connect the power supply’s neutral wire to the
neutral supply wire.
c. Connect the xture’s ground wire (green or
uncoated) to the ground supply wire. If no ground
wire is present in the outlet box, connect the
xture's ground wire to the mounting plate (B)
using the green screw (included).
5. Determine height at which the xture is to be hung.
a. Adjust the power cord to the desired length: Use
the screwdriver to loosen the slotted set screw (F).
Adjust length of power cord. Tighten the set screw
to set. Reserve extra cord in the canopy (G).
b. Insert the steel cable into the cable hanger (D).
Care Instructions:
Use a clean, dry cloth when dusting.
To protect the nish, avoid any harsh
abrasives or chemicals.
Note:
• This xture is dimmable with Electronic Low Voltage (Trailing-Edge)
type dimmers, Incandescent (Leading-Edge) type dimmers, and
0-10V type dimmers only.
