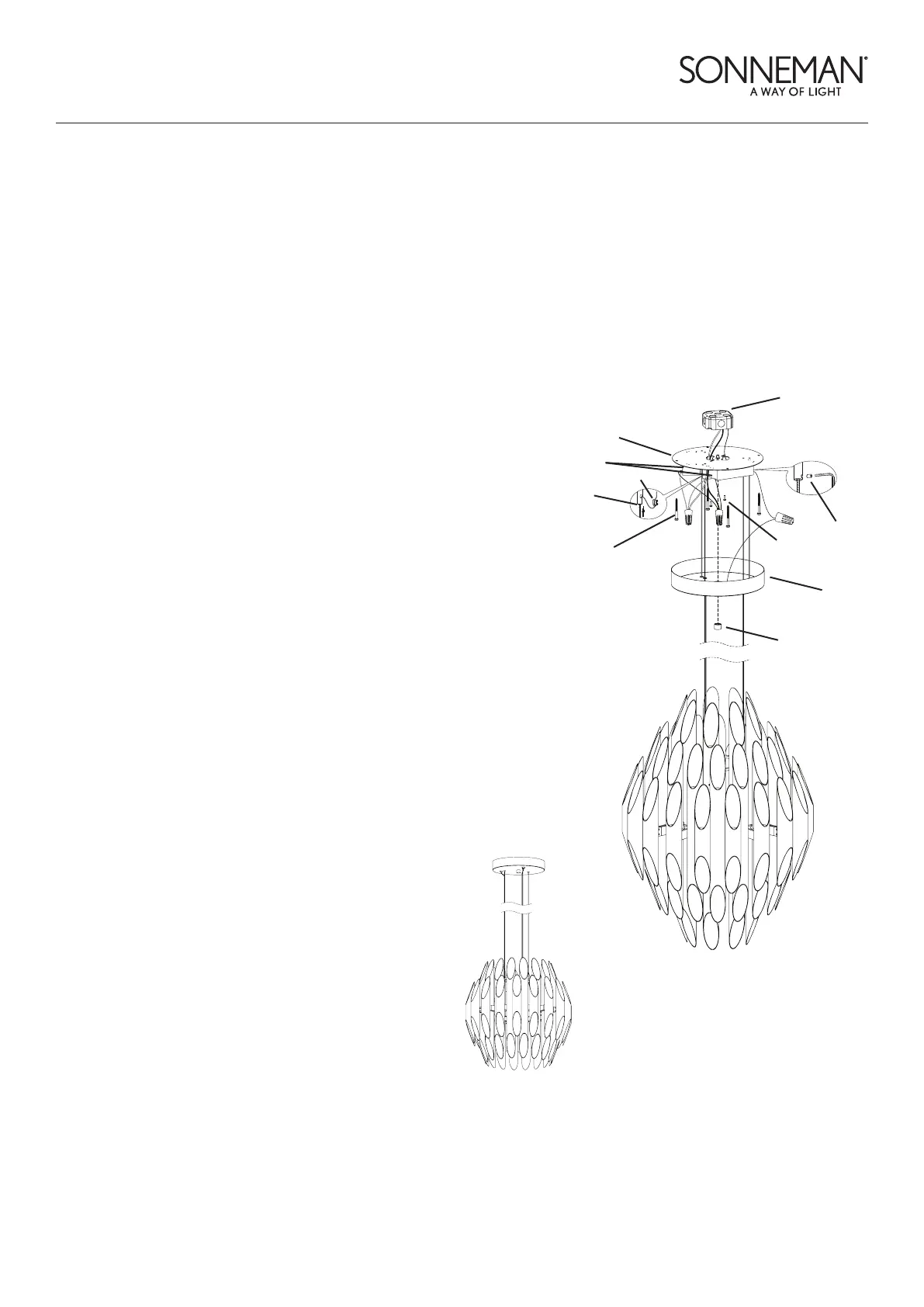

Assembly Instructions
no ground wire is present in the outlet box, connect the
power supply's ground wire to the mounting plate (B)
using the green screw (included).
6. Fit the canopy (H) over the mounting plate (B), tucking any
loose wire or cable inside, so that the threaded rod extends
through the center hole. Screw the canopy nut (J) onto the
threaded rod to secure the canopy.
7. Restore power to the outlet box (C).
1. Shut o power to the outlet box (A).
2. CAUTION: Fixture must be supported independent of the
outlet box. Customer is responsible for ensuring appropriate
ceiling construction to support the wieght of the xture.
3. Attach the mounting plate (B) to the outlet box (A) with the
outlet box screws (C). Secure the plate to the ceiling using
the 4 supplied lag screws (D) or other appropriate hardware
for other surfaces.
4. Determine height at which the xture is to be hung. Note
that this xture hangs from three steel cables. The power
cords should not bear weight.
a. Adjust the 3 steel cables to the desired height: To
shorten the cable, push the cable up and it will lock
automatically. To lengthen the cable, lift up on the cable
and push up on the plunger lock (F). While keeping the
plunger lock depressed, lower the cable to the desired
length. Release the plunger lock to set. Adjust the posi-
tion of the cable lock (E) close to the cable gripper and
tighten the screws. Reserve extra cable in the canopy (H).
b. Adjust the 2 power cords to the desired length. Use the
screwdriver to loosen the slotted set screw (G). Adjust
length of power cord. Tighten the set screw to set. Re-
serve extra cord in the canopy (H).
c. The location of the spreader ring inside the xture should
not need to be adjusted. In the case that it requires
Care Instructions:
Use a clean, dry cloth when dusting.
To protect the nish, avoid any harsh
abrasives or chemicals.
Note:
• This xture is dimmable with Electronic Low Voltage (Trailing-Edge)
type dimmers, Incandescent (Leading-Edge) type dimmers, and
0-10V type dimmers only.
(G)
(B)
(C)
(I)
(A)
(D)
2047
2048
(F)
(H)
(J)
adjustment, you may loosen the set screws,
adjust the cables and power cords, and
re-tighten the set screws.
5. Make appropriate electrical connections to the
power supplies (I) using wire nuts:
a. Connect the power supply’s live wire to the
live supply wire.
b. Connect the power supply’s neutral wire to
the neutral supply wire.
c. Connect the xture’s ground wire (green
or uncoated) to the ground supply wire. If
(E)
