Mixers, Source Selectors & Switchers - RB- DSS10 2
2 RB-DSS10 10 Way Stereo Digital Source Selector
Introduction
The headphone output has its own volume control, which is independent of
the level adjustment for the main outputs, and has a maximum output level
of +12dBu.
As well as routing the selected audio signal, the unit will also route a
remote signal input through the remote connector to the selected input
source, for starting external audio equipment, such as a CD player.
There is a designation strip on the front panel, useful for giving the buttons
a meaningful description.
The LED on the front panel is used to indicate that power is present on the
unit. However, it also has a secondary role to indicate whether the selected
channel is routing the AES/EBU (red LED) or S/PDIF input (amber LED).

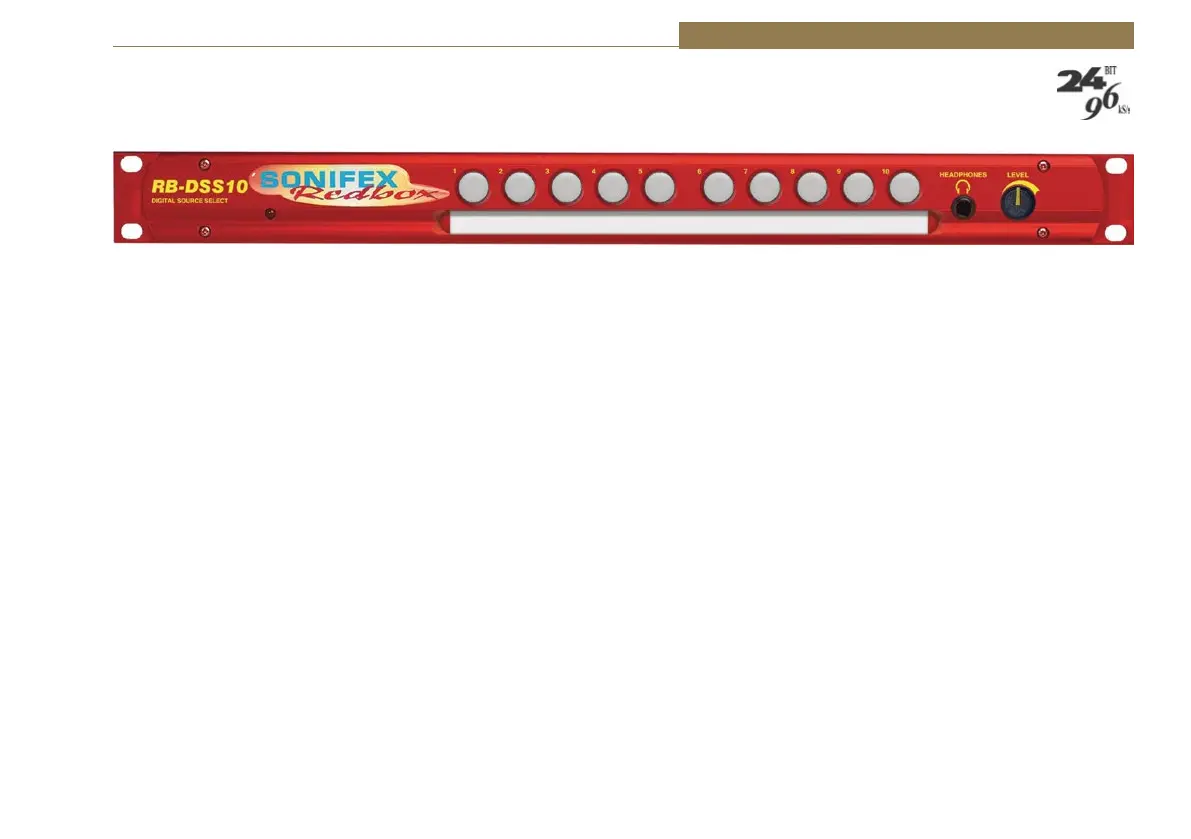

Fig 2-1: RB-DSS10 Front Panel
The RB-DSS10 10 Way stereo Digital Source Selector is a 1U rack-mount
which produces an AES/EBU and S/PDIF level digital audio output from 10
selectable AES/EBU or S/PDIF digital input signals. There are 10 illuminated
front panel push buttons, which select and indicate the current channel
selection. The selection and indication is also available through a remote
connector on the rear panel. To stop accidental front panel selection there
is a remote input to inhibit the front panel buttons.
The digital receivers in this unit are fully 24 bit, 96kHz capable. When an
input is selected from the front panel, or remotely, the unit will attempt
to capture the incoming signal on either the AES/EBU or the S/PDIF signal
inputs, with priority given to the AES/EBU input. If the AES/EBU signal
becomes locked while the S/PDIF signal is routed, the unit will automatically
switch to the incoming AES/EBU signal.
Once the receiver has successfully locked to a digital input, the LED
illuminates, the tally is made, and the audio is routed simultaneously
to both the digital audio outputs and converted to analogue audio for
monitoring on the front panel headphone socket. If the incoming audio
signal is not present, the push button LED and remote tally flash to indicate
that the incoming digital signal is missing.
