Mixers, Source Selectors & Switchers - RB- SS10 1
Status Outputs
This 25 way D-type socket (female) connector contains the remote status
tallies.
Pin No. Signal Name I/O Description
Pin 1 REMTALLY1 O
Internal open collector to ground for
output 1
Pin 2 REMTALLY2 O
Internal open collector to ground for
output 2
Pin 3 REMTALLY3 O
Internal open collector to ground for
output 3
Pin 4 REMTALLY4 O
Internal open collector to ground for
output 4
Pin 5 REMTALLY5 O
Internal open collector to ground for
output 5
Pin 6 REMTALLY6 O
Internal open collector to ground for
output 6
Pin 7 REMTALLY7 O
Internal open collector to ground for
output 7
Pin 8 REMTALLY8 O
Internal open collector to ground for
output 8
Pin 9 REMTALLY9 O
Internal open collector to ground for
output 9
Pin 10 REMTALLY10 O
Internal open collector to ground for
output 10
Pin 11 N/C - No internal connection
Pin 12 N/C - No internal connection
Pin 13 GND - Signal ground
Pins 14 to 23 +5V O To supply up to a maximum of 500mA
Pin 24 N/C - No internal connection
Pin 25 N/C - No internal connection

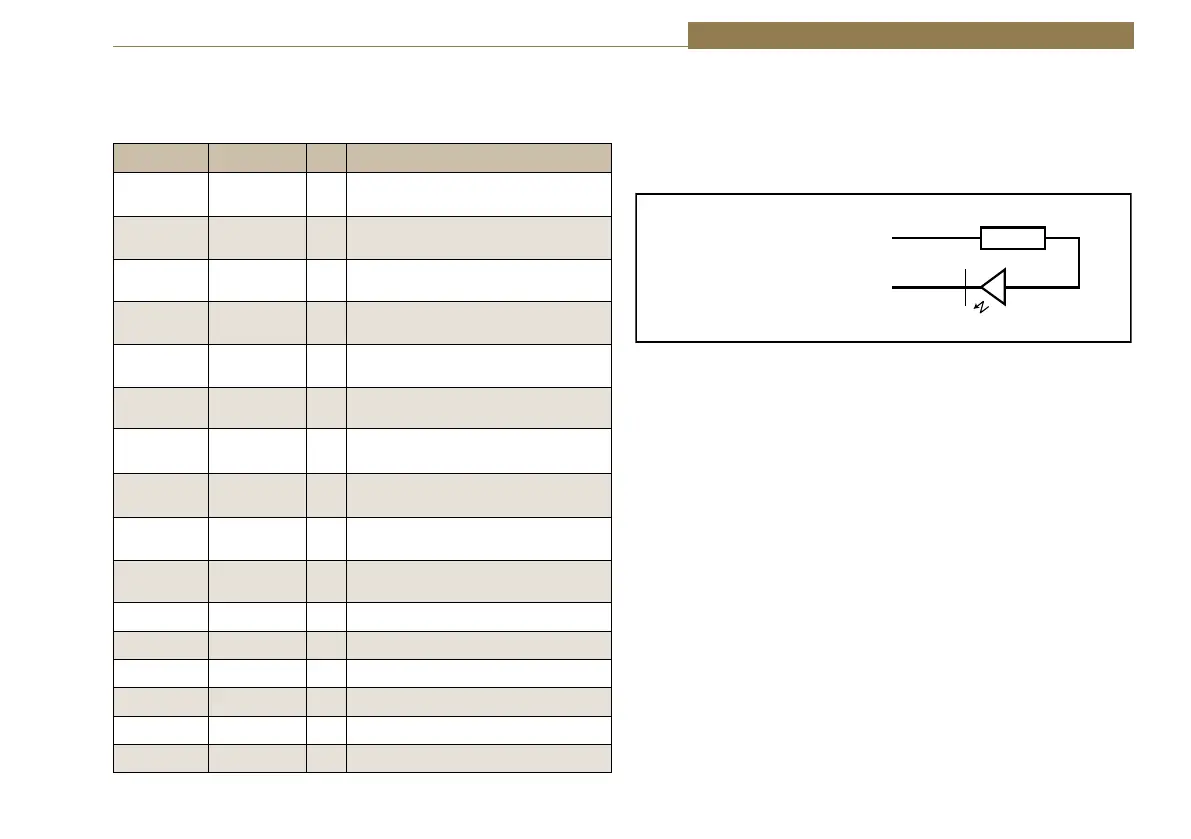

Fig 1-10: Status Output Pin Connections
Pins 1 to 10 are to replicate the front panel push button indicators and have
a maximum sink current of 100mA per pin. An example of how to connect
the signals is shown below.
Pins 11, 12, 24 and 25 have no connection inside the unit.
Fig 1-11: Connection Example
Start Output
Collector 1 to 10
(Pins 1 to 10)
Start Output
Emitter 1 to 10
(Pins 14 to 23)
Play
Command
Command
Common
Remote Inputs 1 to 10
Front Panel Inhibit Mix Mode
(Pins 1 to 12)
Signal Ground
(Pins 14 to 24)
+5V
(Pins 14 to 23)
Remote Tally 1 to 10
(Pins 1 to 10)
