Mixers, Source Selectors & Switchers - RB- SS10 1
1 RB-SS10 10 Way Stereo Analogue Source Selector/Mixer
Introduction

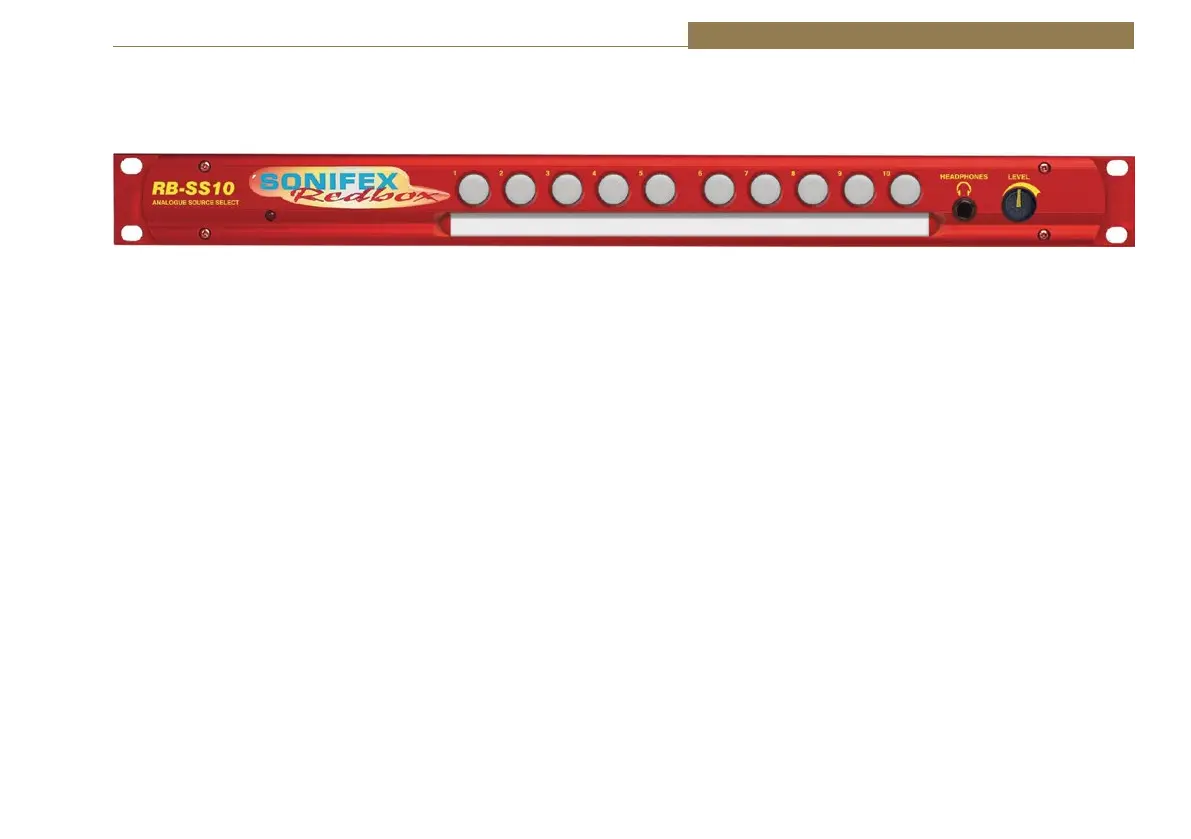

Fig 1-1: RB-SS10 Front Panel
The RB-SS10 10 Way Stereo Analogue Source Selector/Mixer is a 1U
rack-mount unit that produces a stereo analogue audio output from 10
selectable stereo analogue sources. There are 10 illuminated front panel
push buttons, which select and indicate the current channel selection. The
selection and indication is also available through a remote connector on the
rear panel. To stop accidental front panel selection there is a remote input
to inhibit the front panel buttons.
As well as being able to act as a source select module, the RB-SS10 can act
as a mixer, by enabling the mix mode (using the remote input).
The gain for left and right inputs can be individually adjusted by using the
preset potentiometers on the front panel.
As well as routing the selected audio signal, the unit will also route a
remote signal input through the remote connector to the selected input
source, for starting external audio equipment such as a CD player.
The front panel headphone output has its own volume control, which
is independent of the level adjustment for the main outputs, and has a
maximum output level of +12dBu. The volume control can be made to also
alter the output level of the main XLR outputs by using a switch on the rear
panel to enable/disable this feature.
There is a designation strip on the front panel, useful for giving the buttons
a meaningful description. The strip covers the input gain controls so that
once configured, they can’t easily be altered – ideal for installation work.
The LED on the front panel is used to indicate that power is present on the
unit.
