Technical Specification 3
3 Technical Specification
HY-03 Connection Details
All of the connections are located on the rear of the HY-03 :

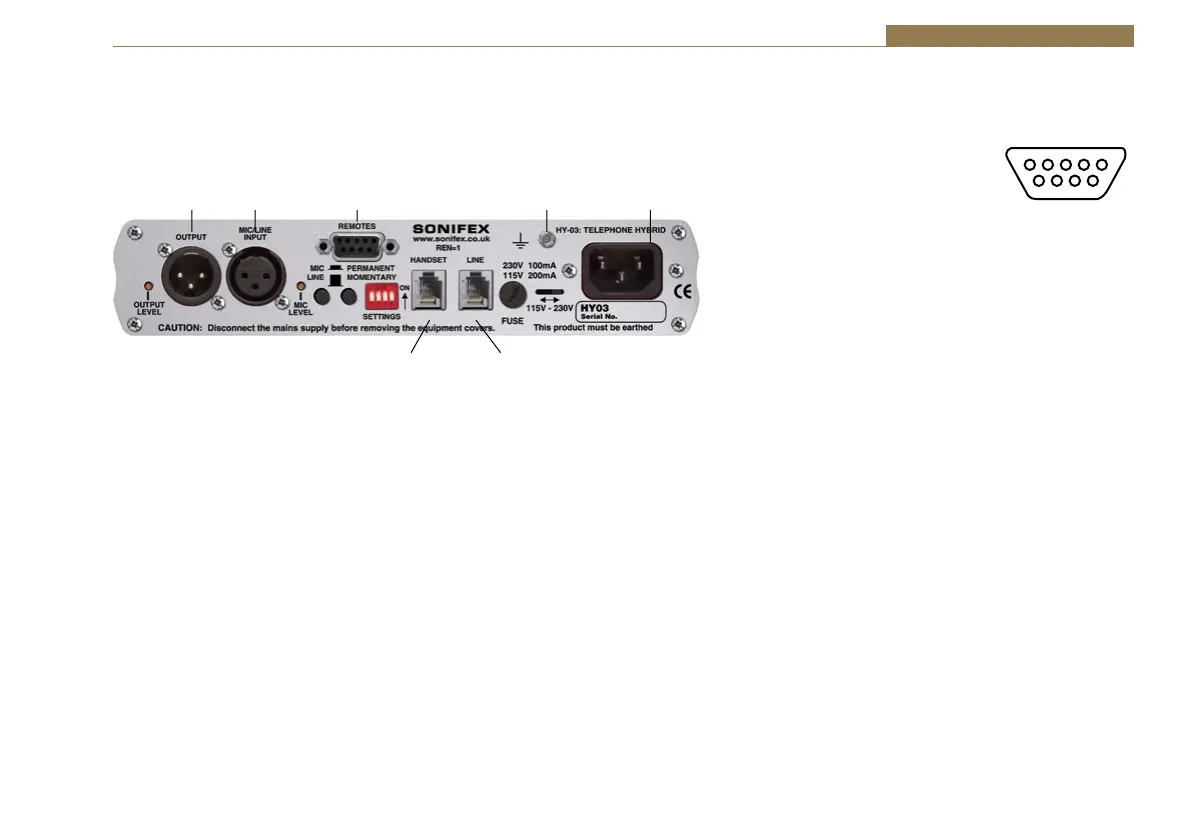

Figure 3-1 : HY-03 Rear Panel Connections
Line Output
The line output is an XLR 3 pin male connector (XLR-3-32, 50 ohm balanced
floating).
Pin 1: Screen
Pin 2: Phase
Pin 3: Non-phase
Mic/Line Input
The line input is an XLR 3 pin female connector (XLR-3-31, 10k ohm
balanced floating).
Pin 1: Screen
Pin 2: Phase
Pin 3: Non-phase
Remotes
The remote connector is a 9-way female (socket) ‘D’ type. To remotely
divert, connect pin 1 to pin 2. Pin 3 supplies +15V (up to a maximum
Telephone
Line
Line
Output
Mic/Line
Input
Remotes
Protective
Earth
Terminal
Mains
Input
Telephone
Handset
of 40mA), with reference to pin 4. The remotes can act as
momentary or latching depending on the setting on the rear
panel of the unit.
Pins viewed from rear of plug
(or front of socket on unit)
Pin 1: Divert switch (Line Connect)
Pin 2: Common
Pin 3: Lamp
Pin 4: Common
The remote lamp tally mimics the front panel line connect
switch lamp, i.e. it flashes when ringing and is on when the
line is held.
Please note the Lamp output is only capable of driving loads
up to 40mA , when connecting any loads the current should
be limited to this value using a series resistor. For example a
390 ohm resistor would limit the current to 38mA.
To connect/disconnect the unit pins 1 and 2 should be
connected together via a contact closure or equivalent. Care
should be taken that pin 3 is not connected to pins 1 or 2 and
that incompatible external signals are not used. Incorrect
configuration can result in the failure of the connect/
disconnect transistor and protection diode which leaves the
unit permanently latched in a connected state and therefore
unusable.
As this fault is caused by using the unit outside of its
recommended operating conditions it will not be covered
under warranty.
5 1
