9
Configuration & Controls 2
Line Polarity Reversal Disconnect Enable - SW2
and JP5
When SW2 is enabled (ON) (and for serial number HY-
03 units after HY000323 when JP5 is on), the HY-03 will
automatically disconnect from the telephone line by
detecting the line polarity reversal. Line polarity reversal
operates in the US and Canada and consists of a momentary
reversal of the line polarity. Once a call is completed, polarity
reversal happens on the line 3 times, each separated by a 10
second gap.
Input/Output Mix Enable - SW3
When this switch is enabled (ON), the HY-03 output signal
will be an equal mix of the normal output signal and the
selected input signal, either Mic or Line. This is useful if, for
example, you want to use the HY-03 output to record both
sides of the conversation.
Ring Detector (Auto Answer) Enable - SW4
This switch enables the integrated ring detector, which
automatically answers incoming calls after a predetermined
number of rings. The ringing detector circuits are on-line
before and during the ringing cadence and are switched off-
line during call holding.
Mains Voltage Selector Switch
This is used to configure the HY-03 operating voltage as
either 115V, or 230V. The switch is recessed so that it can not
be accidentally altered.
Note: The fuse will need to be changed if you alter the
voltage settings.
HY-03 Internal Controls & Adjustments
See page iv for information on opening the HY-03.

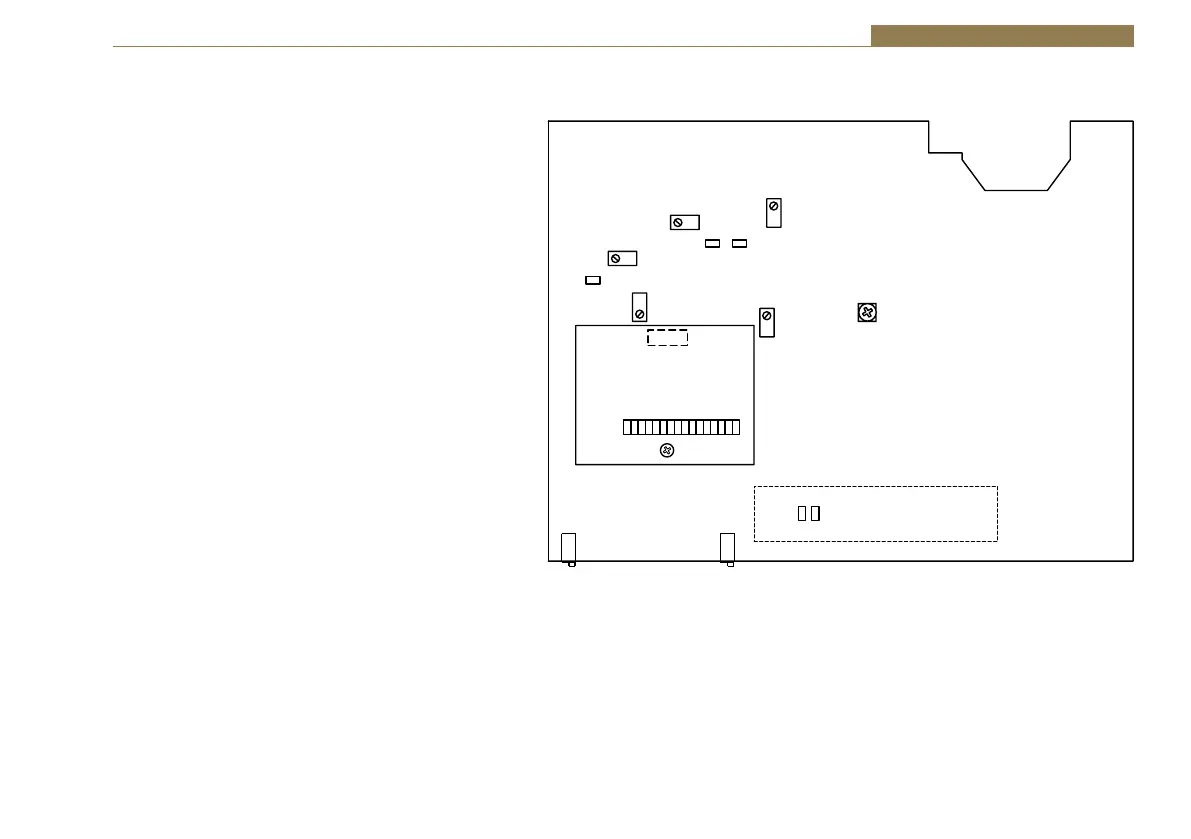

Figure 2-4 : HY-03 Preset Controls and Alignments
Setting the Number of Rings for The Ringing Detector
To alter the number of rings that occur before the ringing detector auto answers the call,
use a jeweller’s screwdriver to adjust RV8. The equipment is factory set for 3 rings, but
this can be adjusted between 1 and 6 rings.
Note: The number of rings above are for UK ring tones and may vary for non-UK
telephone exchanges.
Mic Gain
Limit Level
Noise Gate
Disable
Res Auto
Disable
Line
Reverse
K-Break
Cap Auto
Disable
Noise Gate
Threshold
Optional
HY-03DTD
Board
On units serial number
HY000323 upwards
Plug-in
Header
Mounting screw
on a pillar
Output
Level
Sample
Threshold
Rings
Res Set
Cap Set
RV4
RV7
RV2
JP1
JP4
JP5
JP1JP16
JP2 JP3
RV6
RV5
RV8
RV3 RV1
