28
6 Webserver
28
7 Technical Specification
Bootstrap Mode
This mode is entered when the unit cannot find a valid version of
firmware in the flash memory. Alternatively the bootstrap mode can
be forced by holding down the Line Hold button for an extended
duration of approximately 8 seconds whilst powering-up the unit. The
meter LEDs will flash as alternate pairs until the duration has been
achieved, when it will show a set of 4 on/off pattern.
In bootstrap mode the unit can only be used to load new firmware
from the web interface or to clear all settings back to the factory
defaults. The unit will default to DHCP and AutoIP enabled, in which
case use the Sonifex Service Discovery App or check with the
administrator of the DHCP server to discover the device IP address.
If DIPSwitch 6 is ON (up) during power up, then the unit will ignore the
dynamic addressing options and will use a static IP address of
192.168.0.100

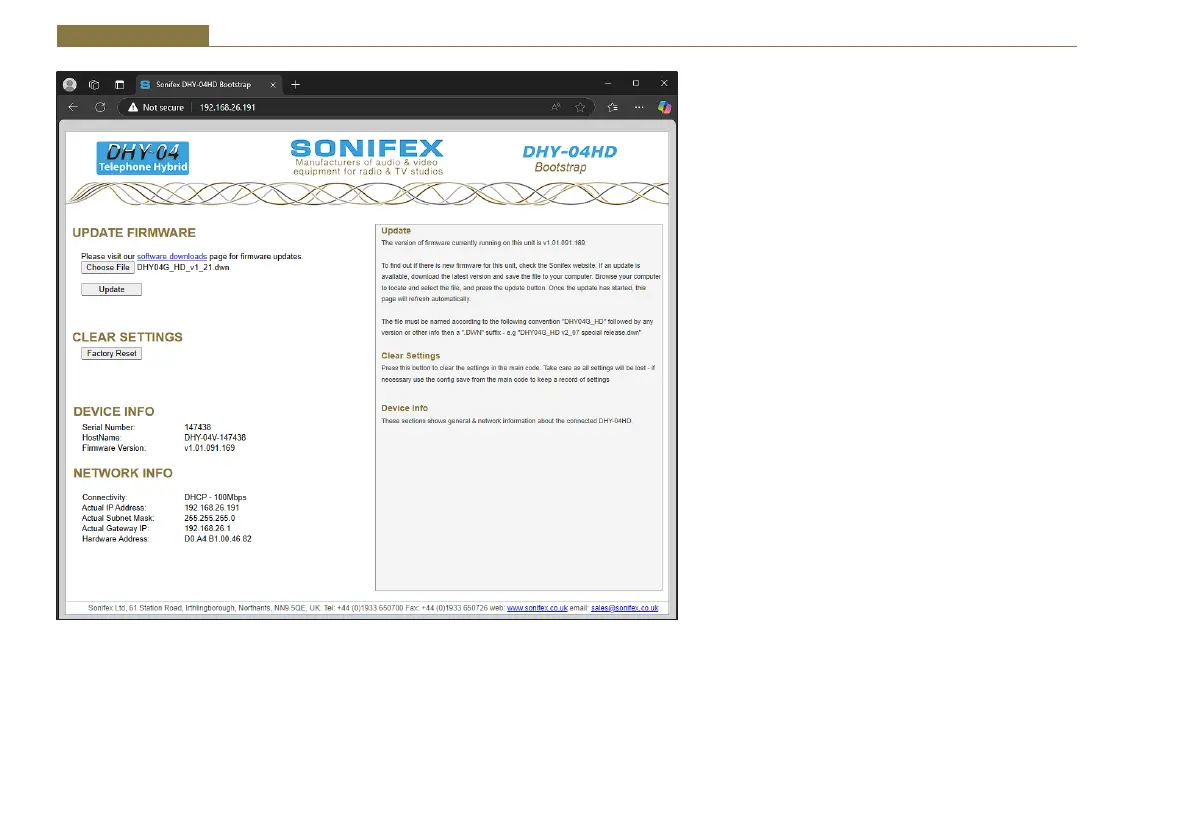

Connect to the device on our browser by typing ‘http://’ followed by
the IP address in the browser address bar – eg ‘http://192.168.0.100’.
Now you can either press the ‘Factory Reset’ button to clear the
settings to factory defaults or upload a file. To do this choose File
button and select the correct download file. Now press the Update
button and the unit will accept the new firmware and re-program the
flash memory with the new code. The webpage will display an ‘Ok’
message that will automatically update to the new home page once
the program and reset functions are completed. The new firmware will
use any previously saved settings.
