Je bekijkt pagina 35 van 61
35

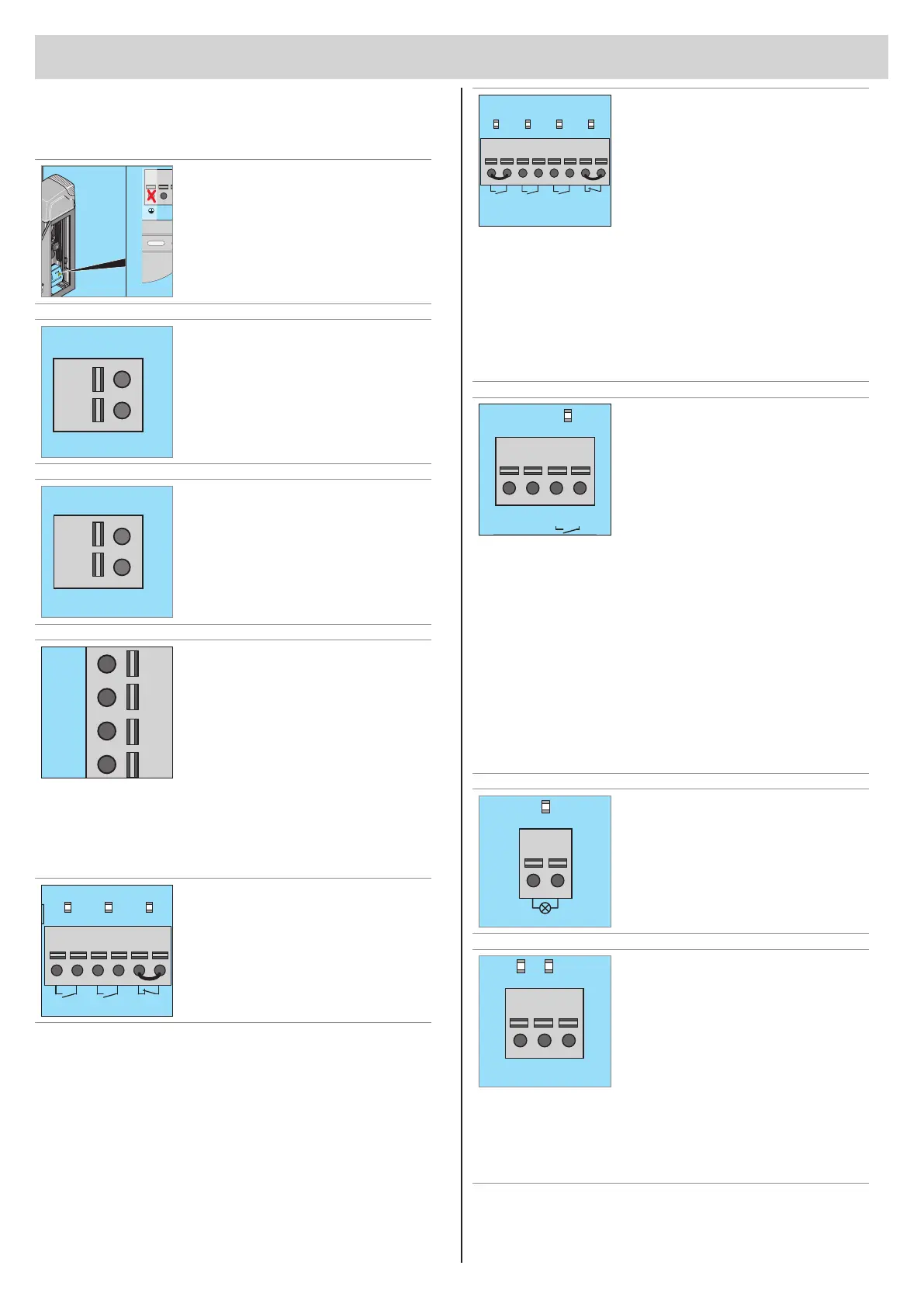

Control unit
Connection options
Terminal blocks
LN
3-pin terminal block
Supply voltage
220–240 V AC 50/60 Hz
see "Connection to the power
mains" on page 23
NL
2-pin terminal block
Transformer primary side
220–240 V AC 50/60 Hz
24VAC
2-pin terminal block
Transformer secondary side
24 V AC
24V
24V
GND
12V
4-pin terminal block
Output 24 V
DC max. 300 mA (600 mA*)
Voltage supply for external accessories
+12 V DC,
GDN
Output 12 V DC max. 150 mA
Voltage supply for external accessories
+12 V DC,
GDN
*600 mA are only available if no further external 24 V and 12 V device
is connected to the control unit.
START1 START2 SAFETY
6-pin terminal block
START 1, START 2 and
SAFETY
potential-free,
e.g.: for external 3-way button
OPEN - CLOSE - emergency stop
with orange status LEDs
Safety with green status LED
INDUC. 1 INDUC. 2CLOCK ALARM
8-pin terminal block
INDUC.1, INDUC 2,
CLOCK and ALARM
potential-free
INDUC.1: NC contact, induction
loop detector
with orange status LED
INDUC.2: NO contact,
induction loop detector
with orange status LED
CLOCK: e.g. for timer
with status LED, orange
ALARM: e.g. for fire alarm system
with status LED, green
24V
GND
SIGNAL
COM
4-pin terminal block
Photocell 2-wire, 4-wire or
for 8k2 safety contact strip
2-wire:
24 V DC, max. 100 mA
Any polarity
Signal
COM
with status LED, orange
4-wire:
24 V DC, max. 100 mA
+ 24 V DC
GND
Signal
COM
with status LED, orange
8k2 safety contact strip:
Signal
COM
With status LED, orange
WARNING
2-pin terminal block
WARNING
Warning light
24 V DC, max. 3 W
with status LED, orange
Limit
open
Limit
close
GND
3-pin terminal block
LIMIT OPEN, LIMIT CLOSE
limit stop
Right-closing barrier:
LIMIT OPEN: red wire
LIMIT CLOSE: blue wire
GND: green - yellow wire
Left-closing barrier:
LIMIT OPEN: blue wire
LIMIT CLOSE: red wire
GND: green - yellow wire
With status LED, red
