18
Safety information for installation
WARNING
Risk of injury caused by the closing boom!
¾ Keep out of the range of movement of the boom!
WARNING
Risk of injury through incorrect attachment of parts!
¾ Before initial operation, check that the heavy-duty
anchors and all screws are tightly and securely seated!
RISK OF CRUSH INJURIES TO THE BODY!
Danger of crush injuries
Observe a minimum distance of 0.5 m between the boom
and surrounding objects!
RISK OF CRUSH INJURIES TO HANDS!
Danger of crush injuries at the lever system
¾ Install the barrier housing without the boom!
¾ Follow the instructions on personal protective
equipment!
DANGER OF TIPPING!
The barrier may tip during installation and in-house
transport.
This can cause injuries and damage to the barrier.
¾ Transport and installation must be performed by
two persons and using suitable transport equipment.
¾ All work on the barrier must be carried out by qualied personnel!
¾ Before working on the barrier, always disconnect the system and
secure it to prevent reactivation!
¾ Perform installation only up to a maximum wind strength of 3 on the
Beaufort scale (light wind).
¾ At least two persons are required for the entire installation.
¾ For installation work performed above body height, use suitable, tested,
and stable climbing aids. Never use the barrier or parts of the barrier as
climbing aids.
Checking the scope of delivery
Remove the barrier and all accessories from the packaging at the
installation site. No sharp objects may be used to open the packaging since
otherwise, parts could be damaged.
Check the delivery for completeness (see "Scope of delivery" on page 9
and order form).
In the case of an incomplete delivery, contact your specialist dealer or
SOMMER Antriebs- und Funktechnik GmbH.
Dispose of the packaging according to locally applicable regulations.

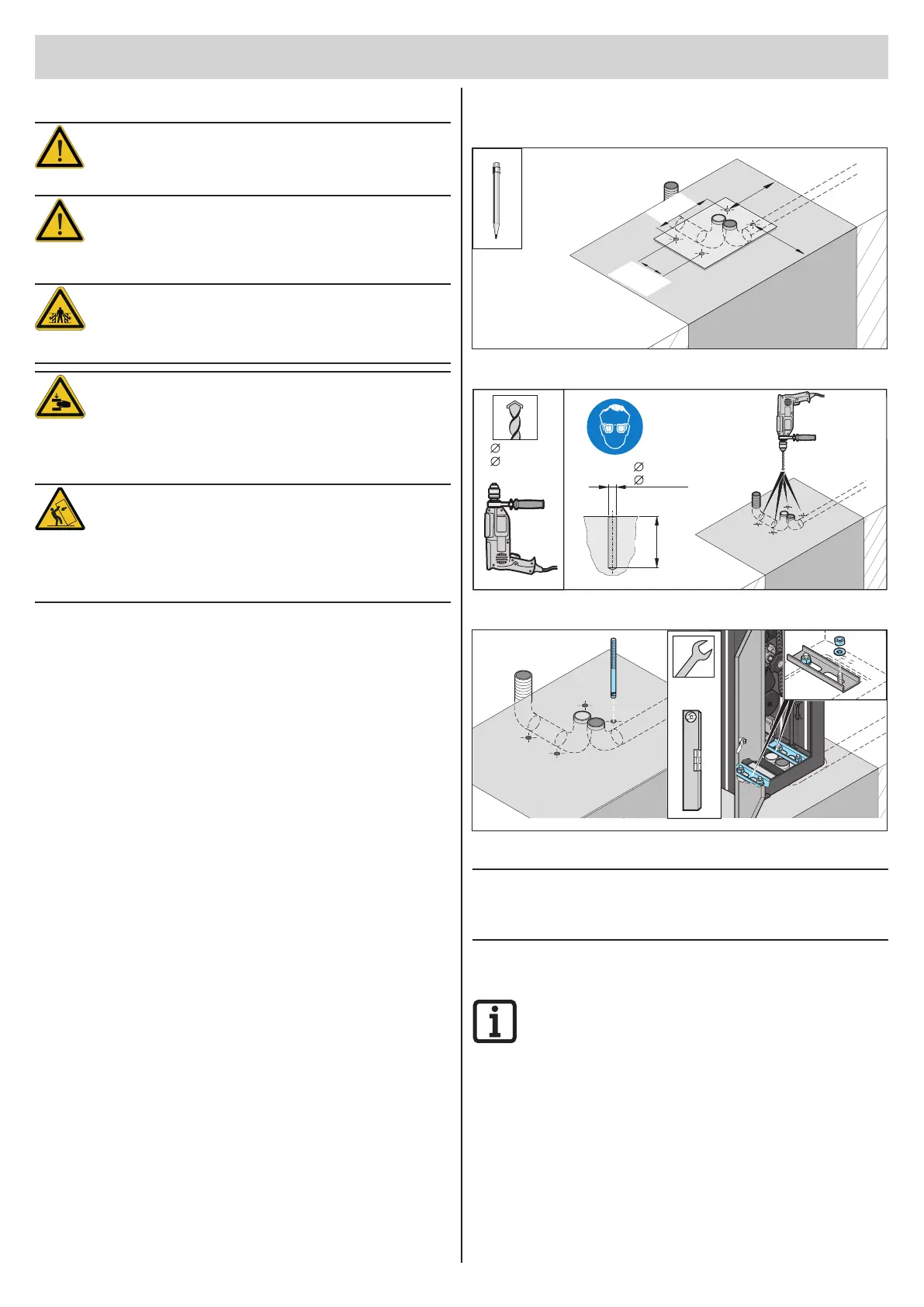

Installing the barrier housing
1. Pull the cables into the empty ducts and label them for later allocation.
200
100
150
100
2. Measure and mark the drill holes for the foundation.
10 mm
12 mm
≥ 65 mm
10 mm
12 mm
3. Drill four holes Ø 10 or Ø 12 mm and at least 65 mm deep.
4x
4x
2x
17 mm
19 mm
4. Blow out holes with compressed air.
NOTE:
Only use permissible fastening materials. For
recommended heavy-duty anchors, see "Creating the
barrier foundation with supply connections" on page 15
5. Insert 4 heavy-duty anchors into the holes.
6. Put the barrier housing in place and open the door.
INFORMATION:
Remove the control unit and place it to one side. Do not
reinstall the control unit until after connection to the mains
power.
7. Insert both U-proles.
8. Align the barrier housing or U-proles. Put 4 washers in place and
tighten 4 nuts. With the spirit level, check the horizontal alignment
of the barrier and correct it if necessary.
9. Close the barrier housing.
Installation
