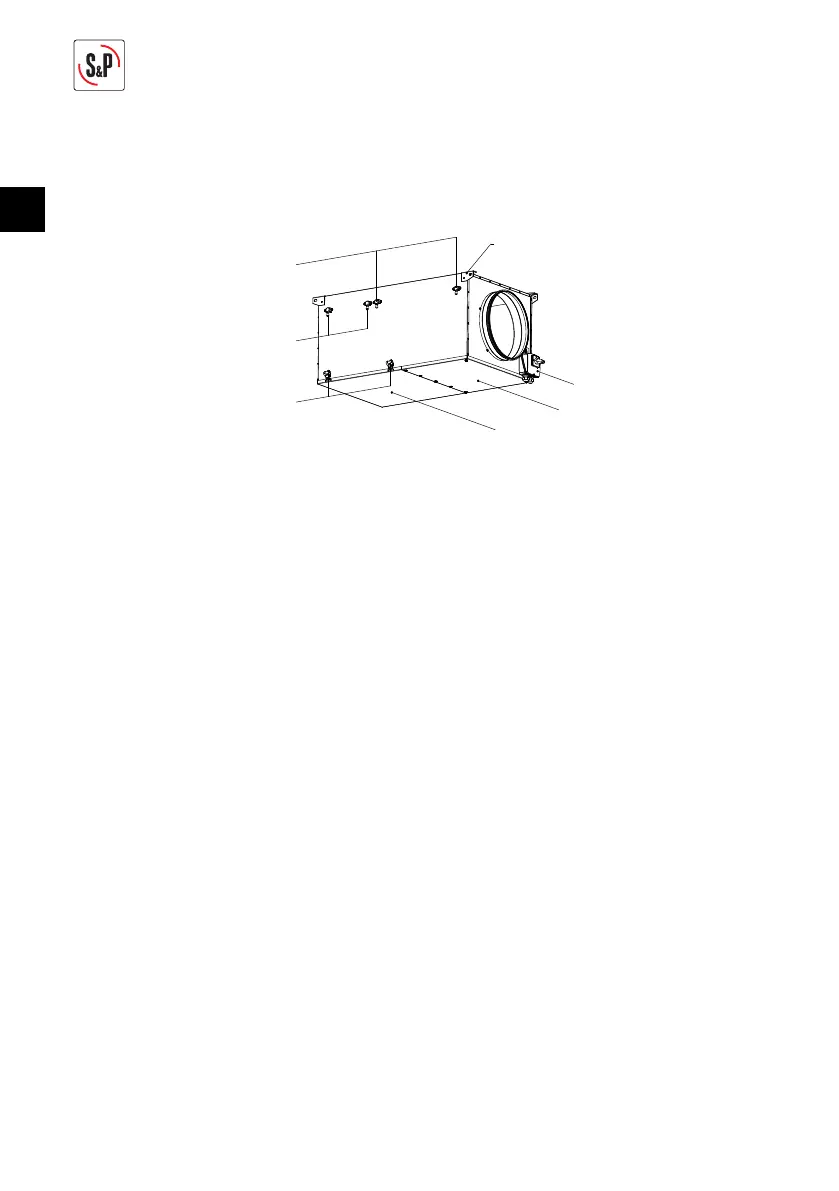

7.2. IDENTIFICATION UNIT PARTS
The main module is composed by two different sections: Filter section and fan section. The fol-
lowing illustration identifi es the main components of the main module.
Support ceiling mounting
Terminal box
Pressure taps of
the fan fl ow control
Pressure taps of the
fi lter fouling control
Quick closures
of the fi lters cover
Cover fan access
Cover fi lter access
* In the small models UVF-400/160, UVF-600/200 and UVF-1100/250 the terminal box is remote, supplied with a
650 mm long hose cable.
7.3. INSTALLATION SITE
The unit may be installed in ceiling or wall, in the way that access doors (fi lter and fan) will be
accessible.
• Avoid installing the unit in areas near heat sources or in damp areas where the unit might come
in contact with water or the relative humidity is close to 100%.
• It is recommended that the unit be installed in a place that is easily accessible for the installation.
Provide suffi cient room for maintenance, connection and drainage of condensate.
