21

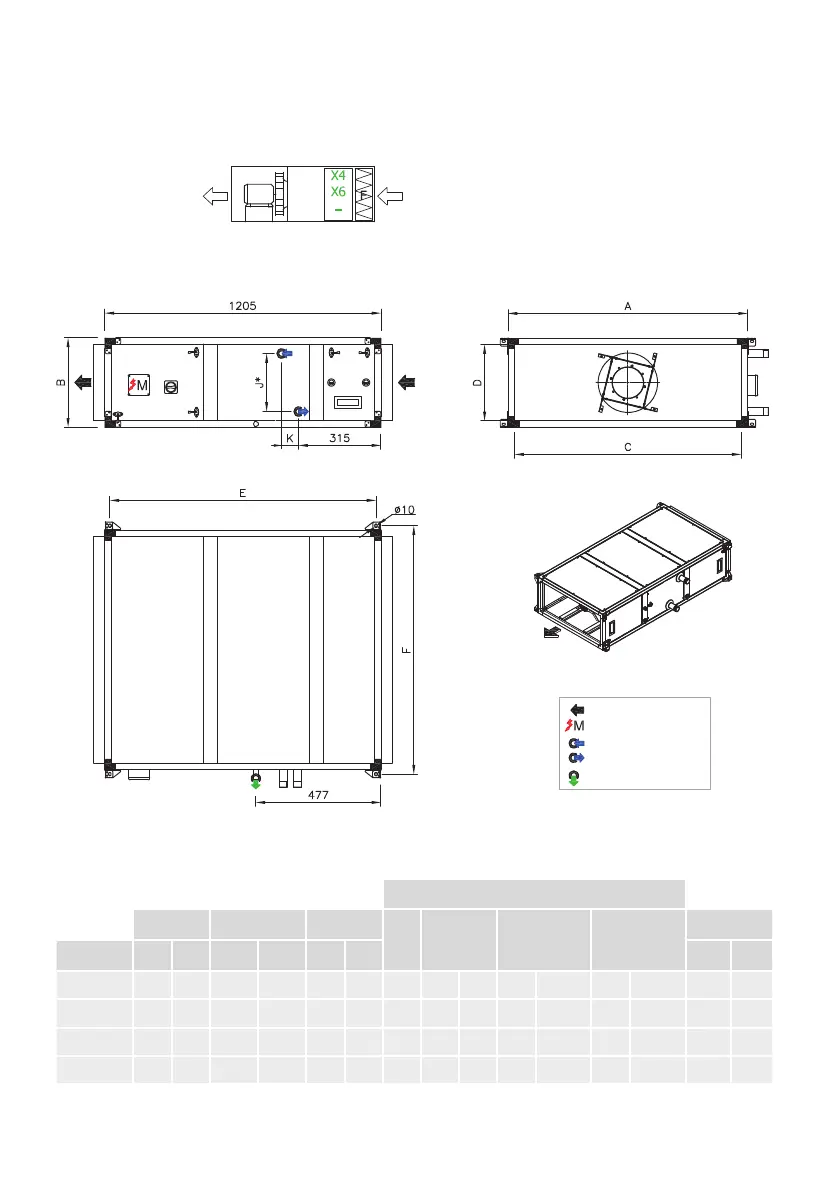

Short version: Single filter type M5

Configuration with direct expansion coil

Coils

External Connections Supports

JK

(X4/X6)

Inlet

Connection

(X4/X6)

Outlet

Connection

(X4/X6)

Weight (kg)

Model A B C D E F C4 C6

UTBS-2 750 360 690 300 1159 790 232 80 120 3/8" 1/2" 5/8" 5/8" 105 107

UTBS-3 1100 410 1040 350 1159 1140 280 80 108 1/2" 1/2" 5/8" 5/8" 142 147

UTBS-5 1500 410 1440 350 1159 1540 280 80 100 1/2" 1/2" 5/8" 3/4" 204 210

UTBS-8 1900 500 1840 440 1159 1940 355* 55 120 1/2" 2 x 1/2" 5/8" 2 x 3/4" 258 268

* On the UTBS-8 model with coil X6 the coil is two-stage (double inlet and outlet connection).

AIR DIRECTION

TERMINAL BOX MOTORS

REFRIGERANT INLET

REFRIGERANT OUTLET

CONDENSATE OUTLET 3/4”

F: M5 filter

X4/X6: Direct expansion coil (4rows / 6 rows)
