-.3. INSTALLATION SITE

• Avoid installing the unit in areas near heat sources or in damp areas where the unit

might come in contact with water.

• It is recommended that the unit be installed in a place that is easily accessible for the

installation. Provide sufﬁcient room for maintenance, connection and drainage of con-

densate.

-.4. MAINTENANCE SPACE

• The installer should leave sufﬁcient unobstructed space to allow free access to the unit

for maintenance. The amount of space needed will depend on which side of the unit is

performing the extraction. The unit is equipped with some side access doors for access

to the ﬁlters and fans. To remove the coils, the side panel must be removed. Both the

ﬁlters and the fans can be removed from either side of the unit.

Prefilter Final filter

Coils / Bateries Control cabinet

Inlet connector wiring

Tighten filter system Condensate output

Drop separatorFouling

detector filters

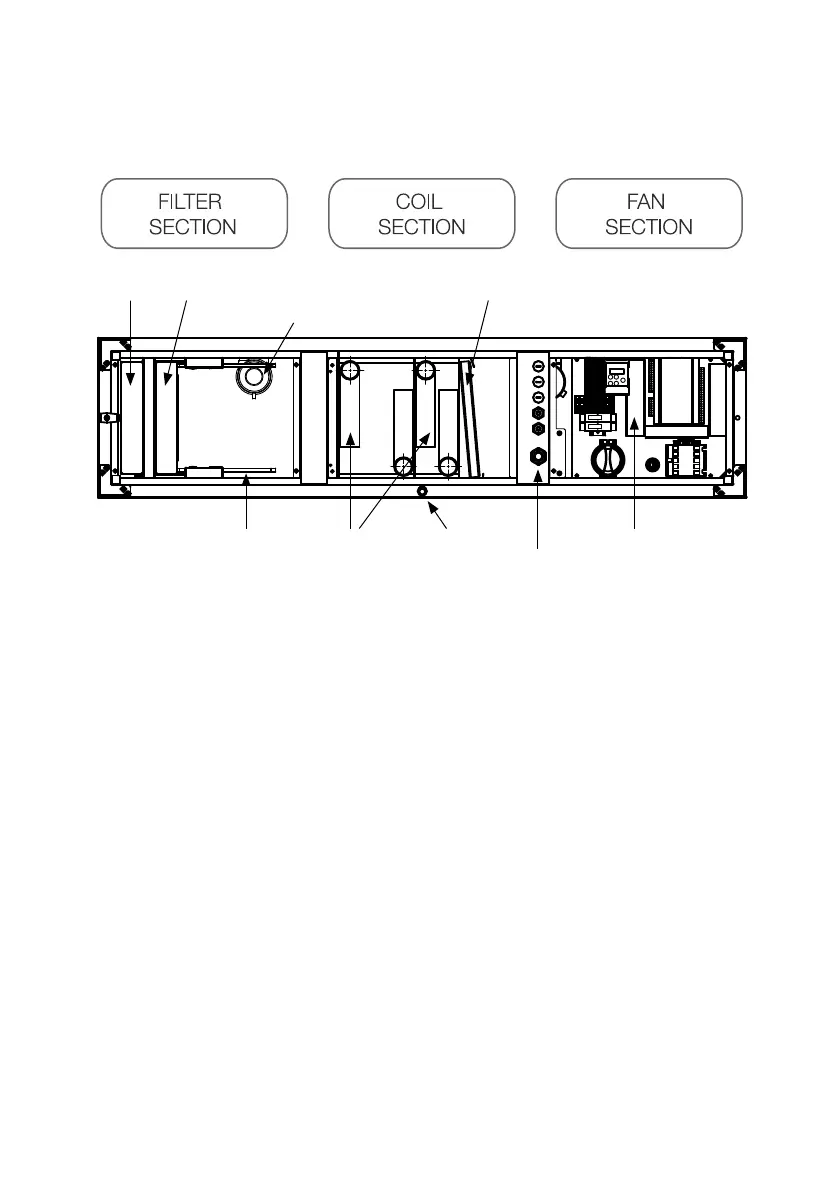

-.2. IDENTIFICATION KD?JF7HJI

The main module may consist of three different sections: ﬁlter, coils and fans. However,

one of the ﬁrst two sections may not be included. The following illustration identiﬁes the

main components of the main module.
